Analog way Vertige VRC300 Quick Start Manual

QUICK START GUIDE
Vertige™
- Ref. VRC300
Thank you for choosing
setup and use within minutes your powerful high-end Remote Controller. Vertige™ is a revolutionary Remote
Controller integrating new ways of creating and managing large events and multi-venues. The Vertige™ brings
a simple and flexible approach to show creation and management. Vertige™ can control several screens and
multiple LiveCore™ devices (Ascender 48 - 4K - PL, Ascender 32 - 4K - PL, Ascender 16 - 4K, SmartMatriX Ultra,
NeXtage 16 - 4K, NeXtage 08 - 4K), independently or linked with an identical device (additive modularity),
linked with an expansion module, or synchronized (associative modularity). Vertige™ can also control other
devices over IP, such as Midra switchers, matrix routers, media players, PTZ cameras.
WHAT'S IN THE BOX
• 1 x Vertige™ (VRC300)
• 2 x Power supply cords
• 1 x User manual (PDF version)*
• 1 x Quick start guide (PDF version)*
* User manual and Quick start guide are available on
GETTING STARTED WITH THE VERTIGE™
Read the following sections in the given order to
get started with Vertige™:
• Rear panel description
• Front panel description
• Setting up the Vertige™
• Configuring a Show
• Running a Show
REAR PANEL DESCRIPTION

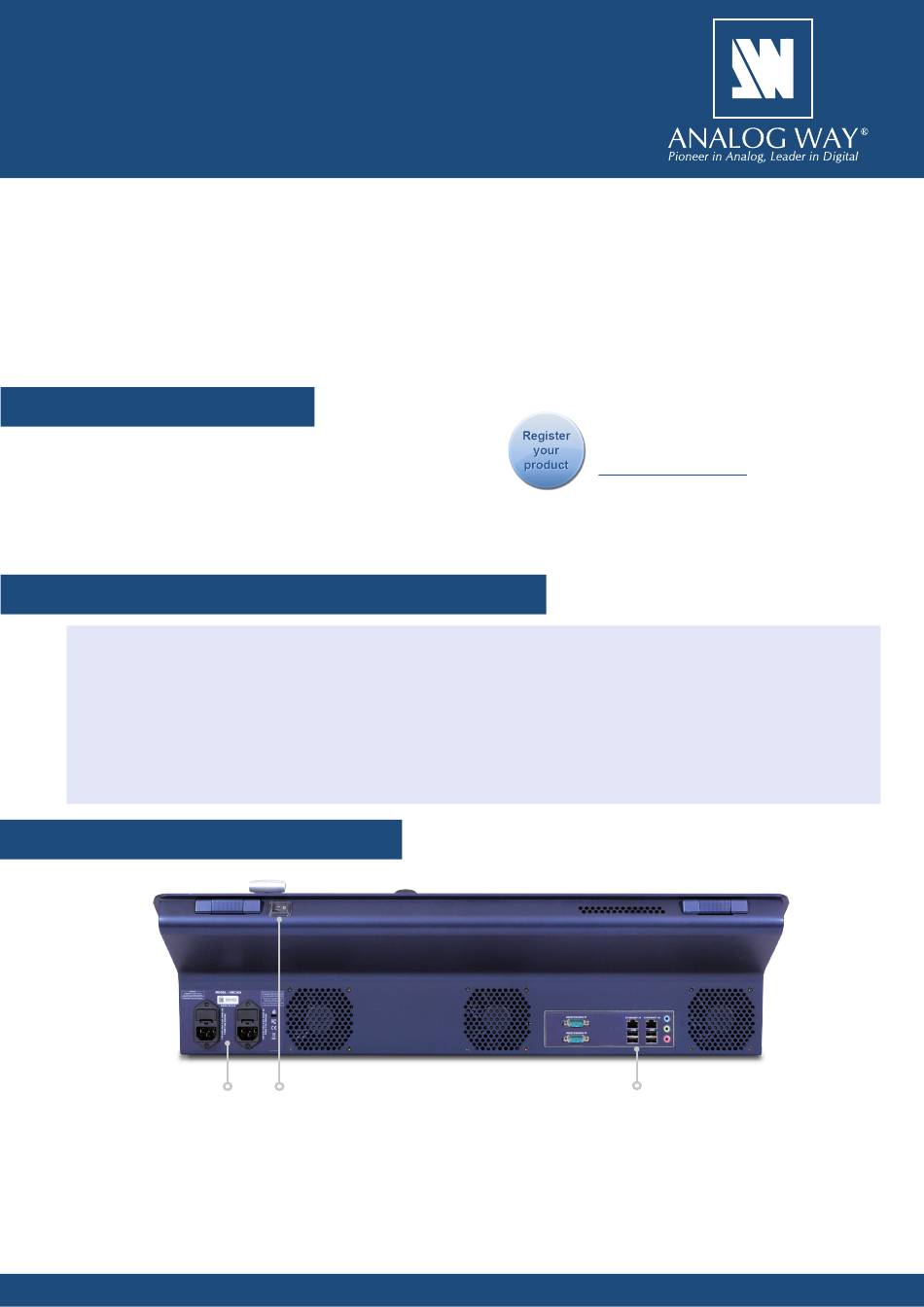

1
1. Power Supply:
Dual, redundant power supply with fuse as standard
equipment.
2. On/Off button:
Switch on/off the device.
Analog Way and the Vertige™. By following these simple steps, you will be able to
2
Go to our website to register your product(s)
and be notified about new firmware versions:
http://bit.ly/AW-Register
www.analogway.com.
If connecting the Vertige™ and the devices directly,
make sure to use an Ethernet crossover cable (the
Vertige™ connects to the controlled devices with
standard Ethernet LAN networking equipment).
Otherwise you can use a standard Ethernet hub
and straight cables.
3. Connection panel:
Ethernet LAN adapters for device control.
3
