Analog way Vertige Quick Start Manual

QUICK START GUIDE

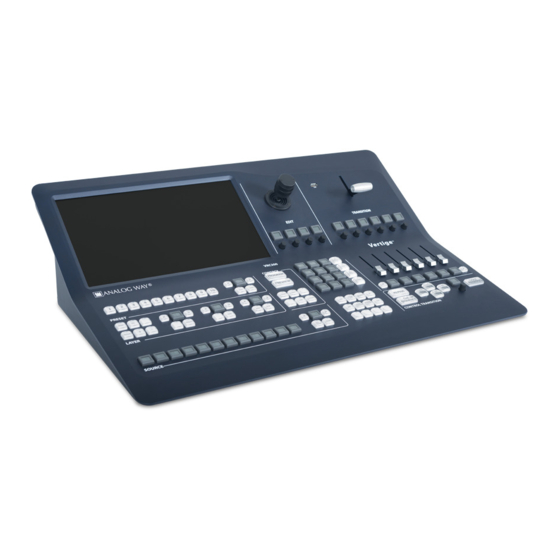

Vertige™
- Ref. VRC300
Thank you for choosing
setup and use your powerful high end Remote Controller within minutes. Vertige™ is a revolutionary Remote
Controller integrating new ways to create and manage large events and multi-venues. The Vertige™ brings a
simple and flexible approach to show creation and management. Vertige™ can control several screens and
devices such as Ascender 48, Ascender 32, Ascender 16, SmartMatriX Ultra, NeXtage 16 or NeXtage 08
systems, independently or simultaneously in any kind of combination, including Soft Edge blending. Vertige™
also supports linked LiveCore™ devices (additive modularity), LiveCore™ Expansion modules and synchronized
LiveCore™ devices (associative modularity).
WHAT'S IN THE BOX
• 1 x Vertige™ (VRC300)
• 2 x Power supply cord
• 1 x User manual (PDF version)*
• 1 x Quick start guide (PDF version)*
* User manual and Quick start guide are available on
VERTIGE™ SETTINGS
Before starting with Vertige™ please see the
following steps:
• Rear panel description
• Front panel description
• Setting up the Vertige™
• Configuring the Show
• Running the Show

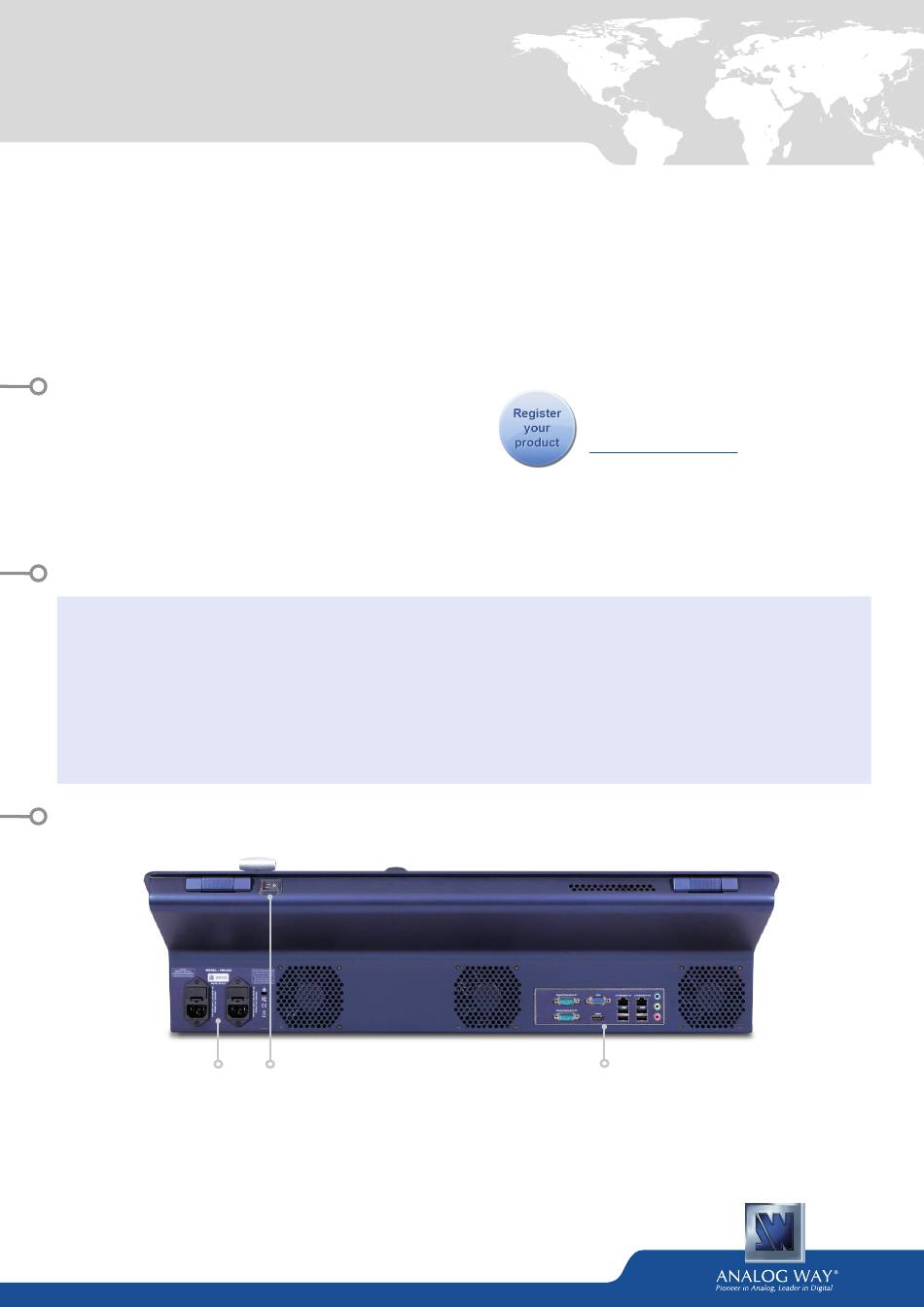

REAR PANEL DESCRIPTION
1
1. Power Supply:
Dual, redundant power supply with fuse as standard
equipment.
2. On/Off button:
Switch on/off the device.
Analog Way and the Vertige™. By following these simple steps, you will be able to
2
Go on our website to register your product(s)
and be notified about new firmware versions:
http://bit.ly/AW-Register
www.analogway.com.
If connecting the Vertige™ and device directly,
be sure to use an Ethernet crossover cable (the
Vertige™ connects to the controlled devices with
standard Ethernet LAN networking equipment).
Otherwise you can use a standard Ethernet hub
and straight cables.
3
3. Connection panel:
Ethernet LAN adapters to control devices.
