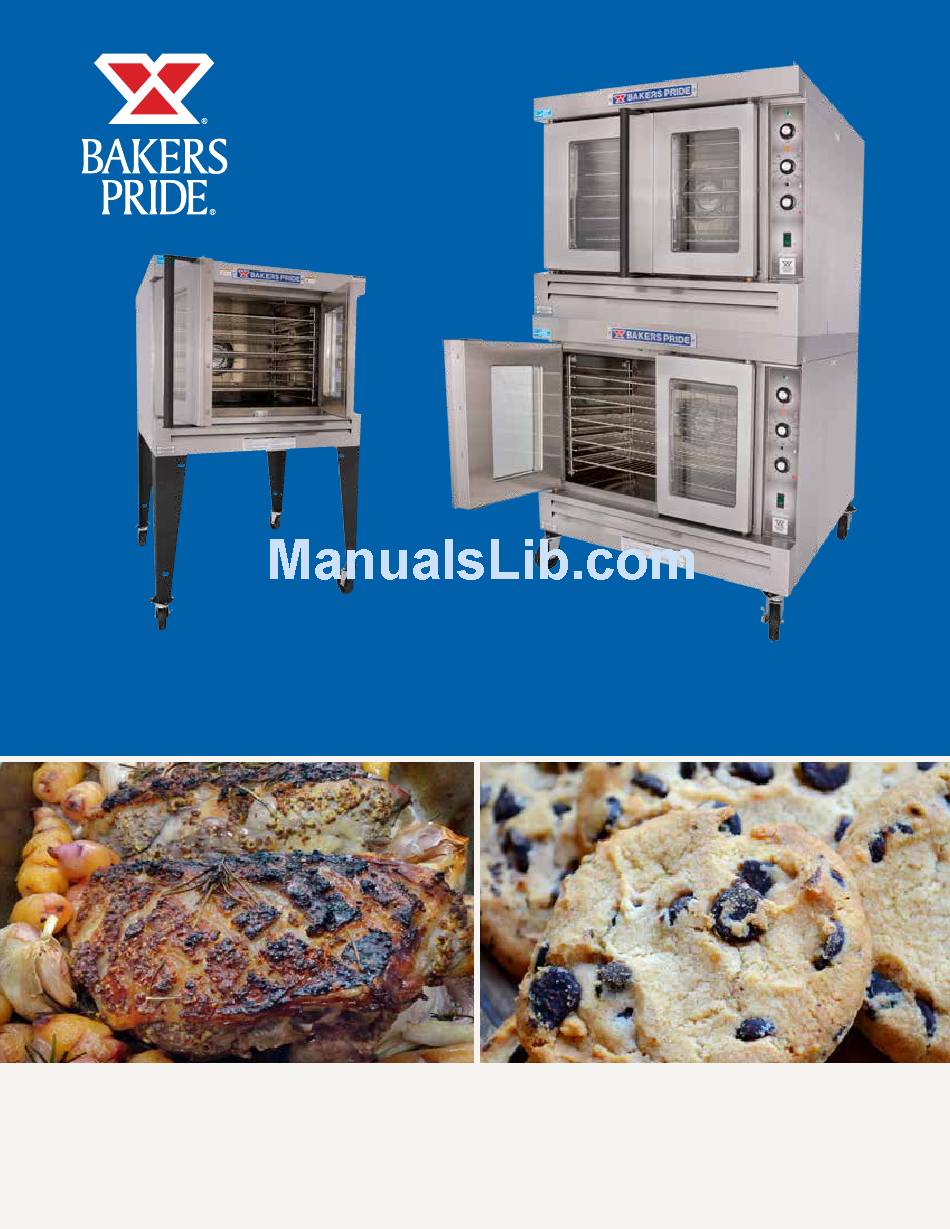

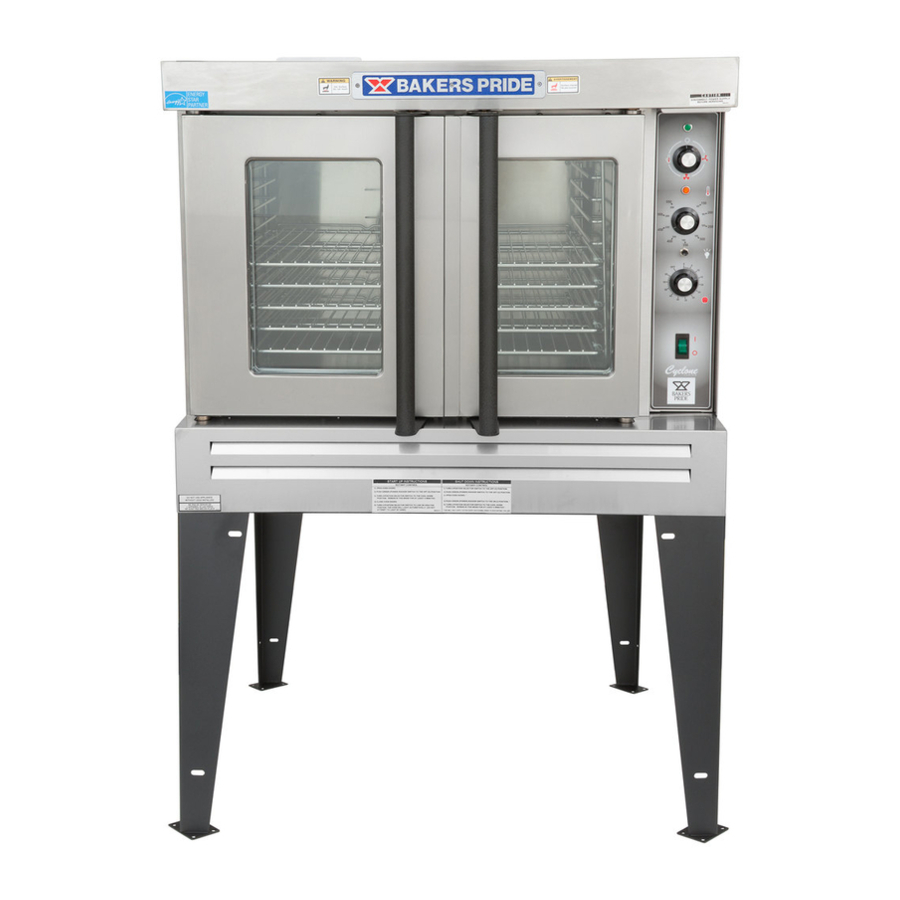

- Page 1 OPERATION MANUAL CYCLONE SERIES FULL-SIZE GAS CONVECTION OVENS SERIES: BCO-G & GDCO-G B U I LT BY C R A F T S M E N . T E S T E D BY T I M E ®...
- Page 2 Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment. Bakers Pride Oven Company, LLC is a wholly owned subsidiary of Standex International Corporation. NOTICE All Bakers Pride convection ovens are intended for use ®...
-
Page 3: Table Of Contents
GAS CONVECTION OVENS OPERATION MANUAL TABLE OF CONTENTS INSTALLATION INSTRCTIONS TIMED COOKING ROTARY CONTROL RECEIVING COOK AND HOLD ROTARY CONTROL SET UP/MOUNTING OPTIONAL STEAM INJECTION ROTARY CONTROL INSTALLATION WITH CASTERS (OPTIONAL) TO COOL DOWN THE OVEN QUICKLY LOCATION & MINIMUM CLEARANCES C&H-3 PROGRAMMING/OPERATION GAS CONNECTIONS CLEANING... -
Page 4: Installation With Casters (Optional)
Lock Nut 1/4-20 8519600 Washer, Flat 1/4” 8208200 Screw, 1/4-20 x 3/4” CAUTION 21816807 Support, Wire Rack 21818220 Undershelf, Gas Oven Do not store combustible items or materials on racks Figure 1: Open Rack Stand Assembly Instructions, BCO-G & GDCO-G... -
Page 5: Location & Minimum Clearances
GAS CONVECTION OVEN OPERATION MANUAL INSTALLATION INSTRUCTIONS Location and Minimum Clearances: Use a pipe joint compound that is resistant to the action of liquefied petroleum gases when making Move the oven to its final location keeping the minimum gas connections. For Propane gas, use at least 1/2” clearance from the back of the oven to the wall. -
Page 6: Electrical Connections
GAS CONVECTION OVEN OPERATION MANUAL INSTALLATION INSTRUCTIONS Electrical Connection: must not run downwards at any point from the oven to the final outlet. It should always slant slightly upwards. The oven, when installed, must be electrically grounded For best results, is should rise straight up. The venting in accordance with local codes and/or the latest edition system shall be in accordance with the National Fuel of the National Electrical Code ANSI/NFPA No. -
Page 7: Programming Menus
GAS CONVECTION OVEN OPERATION MANUAL INSTALLATION INSTRUCTIONS Programming Menus 8) Open the oven doors. Oven lights will go on and (For Units With Digital Controls): burners and fan will go off. Refer to C&H -3 Plus Controller Operating/ 9) Turn Selector Switch to “Cool Down” position. The Programming Instructions Manual. -
Page 8: Timed Cooking Rotary Control
GAS CONVECTION OVEN OPERATION MANUAL OPERATING INSTRUCTIONS Timed Cooking Rotary Control: Optional Steam Injection: Rotary Control: 1) Close the oven doors. The solenoid valve for steam injection is mounted behind the service panel on the right-hand side of the 2) Turn Selector Switch to “HI” or “LO” position. The unit. -
Page 9: C&H-3 Programming/Operation
GAS CONVECTION OVEN OPERATION MANUAL OPERATING INSTRUCTIONS Operating/Programming Instructions - Cook & Hold-3 Plus Controller (For Convection Ovens: CO11-G, CO11-E, COCE, GDCO-G & GDCO-E) Controller Key Description... - Page 10 GAS CONVECTION OVEN OPERATION MANUAL OPERATING INSTRUCTIONS...
- Page 11 GAS CONVECTION OVEN OPERATION MANUAL OPERATING INSTRUCTIONS Starting A Cook Cycle Operating Instructions To start a cook cycle, simply turn selector switch There are 3 programmable times & temperatures, and to LO or HI position and press the product key 1 manual override time &...
- Page 12 GAS CONVECTION OVEN OPERATION MANUAL OPERATING INSTRUCTIONS Controller Features Fahrenheit or Celsius Temperature Display The operator is allowed to configure the controller to display the temperature in degrees Fahrenheit or Celsius from the jumper on the back of the circuit board (J3).
- Page 13 START and STOP keys. program will be saved. Portions of this instruction manual pertaining to the CH-100 controller are reprinted with the permission of Food Automation-Service Techniques, Inc. (Fast). © 2001 Bakers Pride Oven Co., Inc. All rights reserved.
-
Page 14: Cleaning
GAS CONVECTION OVEN OPERATION MANUAL OPERATING INSTRUCTIONS Cleaning Clean The Stainless Steel Interior: Always clean equipment thoroughly before first use. Baked on splatter, oil, grease or discoloration on the Clean unit daily. stainless steel inside of the oven may be removed with stainless steel cleaner, or any other similar cleaning WARNING agent. -
Page 15: Servicing
GAS CONVECTION OVEN OPERATION MANUAL OPERATING INSTRUCTIONS Figure 2: Cleaning The Blower Wheel Servicing: 8) For Proper maintenance and repairs, call the factory NOTICE toll free (800-431-2745) for an authorized service agency in your area. This appliance must be serviced by an authorized service agent. -
Page 16: Stacking Instructions
GAS CONVECTION OVEN OPERATION MANUAL OPERATING INSTRUCTIONS Figure 3: Stacking Instructions For: BCO-G & GDCO-G Convection Ovens... -
Page 17: Leg Assembly Instructions
GAS CONVECTION OVEN OPERATION MANUAL OPERATING INSTRUCTIONS Figure 4: Leg Assembly Instructions - Model: BCO-G & GDCO-G Without Plate Caster Item Description Item Description 21796810 Weldment, Oven Leg 21796810 Weldment, Oven Leg 8633102 Caster, 5” Swivel W/Top Plate 8633515 Foot Insert, Adjustable... -
Page 18: Wiring Diagrams
GAS CONVECTION OVEN OPERATION MANUAL OPERATING INSTRUCTIONS Wiring Diagrams Wiring Diagram – BCO-G & GDCO-G 120V, 1 Phase (Dial Control) Wiring Diagram – GDCO-G 120V, 1 Phase (Puch Button Control) - Page 19 GAS CONVECTION OVEN OPERATION MANUAL OPERATING INSTRUCTIONS Wiring Diagram – BCO-G & GDCO-G 240V, 1 Phase (Dial Control) Wiring Diagram – GDCO-G 240V, 1 Phase (Puch Button Control)
- Page 20 GAS CONVECTION OVEN OPERATION MANUAL OPERATING INSTRUCTIONS Wiring Diagram – Steam Injection 120V Wiring Diagram – Steam Injection 220/240V...
-
Page 21: Helpful Hints
Reduce temperature or place pan of water in oven Fan is set on high speed Set fan to low speed Oven cycles 3 times & locks itself Flame Sensor defective Call Bakers Pride factory authorized service center TROUBLESHOOTING CHART PROBLEM CAUSE SOLUTION... -
Page 22: Exploded View & Parts List
GAS CONVECTION OVEN OPERATION MANUAL EXPLODED VIEW & PARTS LIST Exploded View Not Shown Description E8752A Kit, 25’’ Legs Black W/3” Adj Feet E8753A Kit, 25’’ Legs Black W/Plate Caster E8754A Kit, 25’’ Legs S/S W/3” Adj Feet E8755A Kit, 25’’ Legs S/S W/Plate Casters E8756A Kit, Stacking W/6”... - Page 23 GAS CONVECTION OVEN OPERATION MANUAL EXPLODED VIEW & PARTS LIST Item Description Item Description R3164A VALVE, COMBINATION (NAT.) E8189A BAFFLE PLATE R3165A VALVE, COMBINATION (L.P.) E8138A MOTOR MOUNT N5019A NIPPLE, 1/2” X 1-1/8” STEEL PIPE M9208A MOTOR 115V 850/1 725 RPM E8188A BRACKET, SUPPORT S1195A...
-
Page 24: Warranty
Bakers Pride Factory Authorized Service Center. This Warranty is in lieu of all other warranties, expressed or implied, and all other obligations or liabilities on the manufacturer’s part. Bakers Pride shall in no event be liable for any special, indirect or consequential damages, or in any event for damages in excess of the purchase price of the unit. - Page 25 IMPORTANT FOR FUTURE REFERENCE Please complete this information and retain this manual for the life of the equipment. For Warranty Service and/or Parts, this information is required. Model Number Serial Number Date Purchased NOTES...
- Page 26 Food Service Equipment Group The Standex Food Service Equipment Group (FSEG) is a manufacturer of innovative commercial food service equipment offering a wealth of refrigeration and cooking expertise. Products include walk-in coolers and freezers; hot and cold display cabinets, cases, and storage systems; commercial ovens, rotisseries, and cooking equipment;...
