1.1 Physical Description

1-2
The IStran assembly measures 6.25 inches (length) by 4.50 inches
(width) by approximately 1 inch (depth). (See Figure 1-2, 1-3, and 1-4.)
The IStran assembly consists of the following major components:
 One IStran printed circuit board (PCB) for the IStran assembly
 Yellow alodined aluminum base plate (0.060 inch thick)
 Black anodized cover (0.090 inch thick)

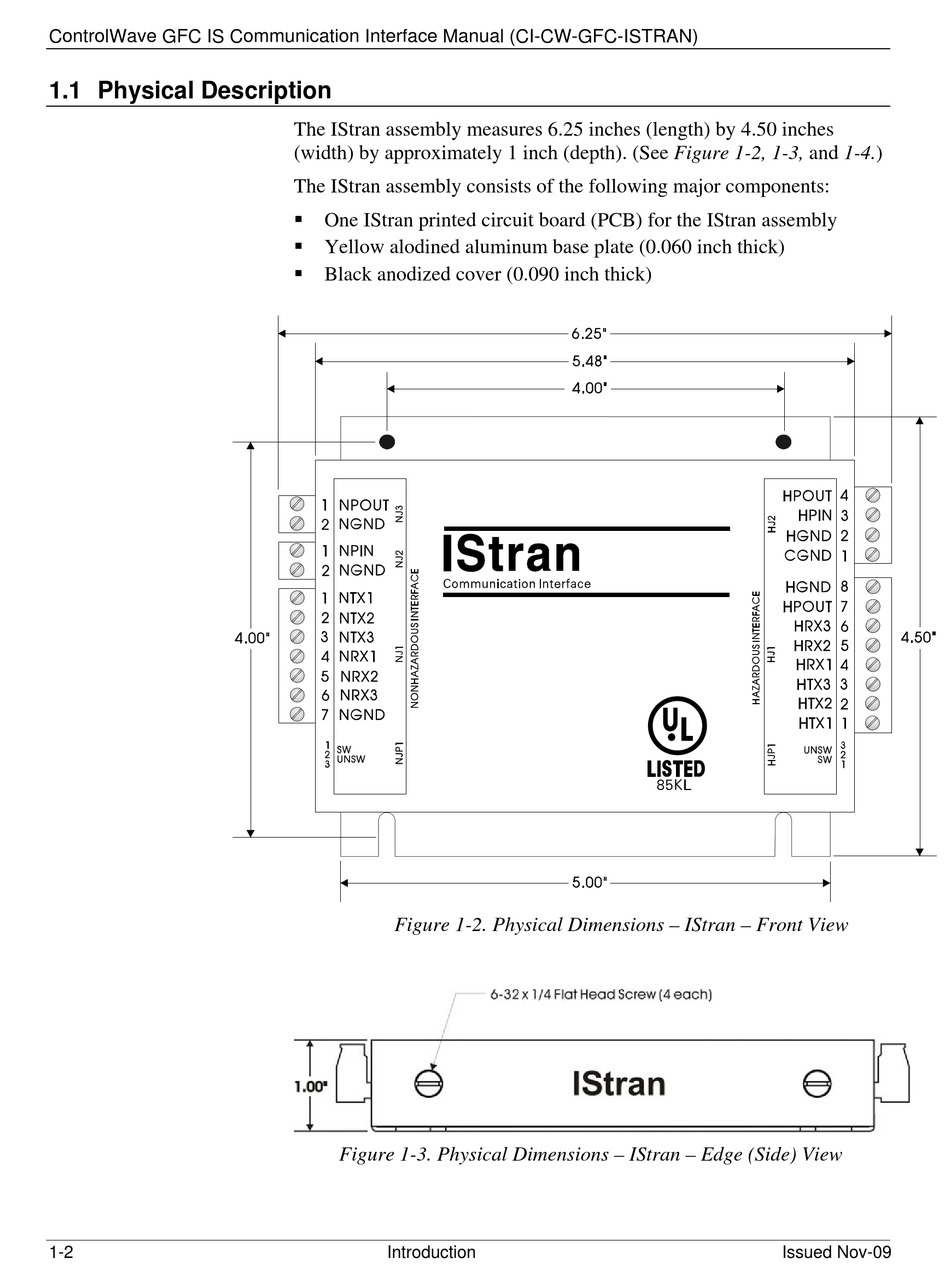

Figure 1-2. Physical Dimensions – IStran – Front View
Figure 1-3. Physical Dimensions – IStran – Edge (Side) View
