738A ADEMCO™ INTERFACE
MODULE
Installation Guide

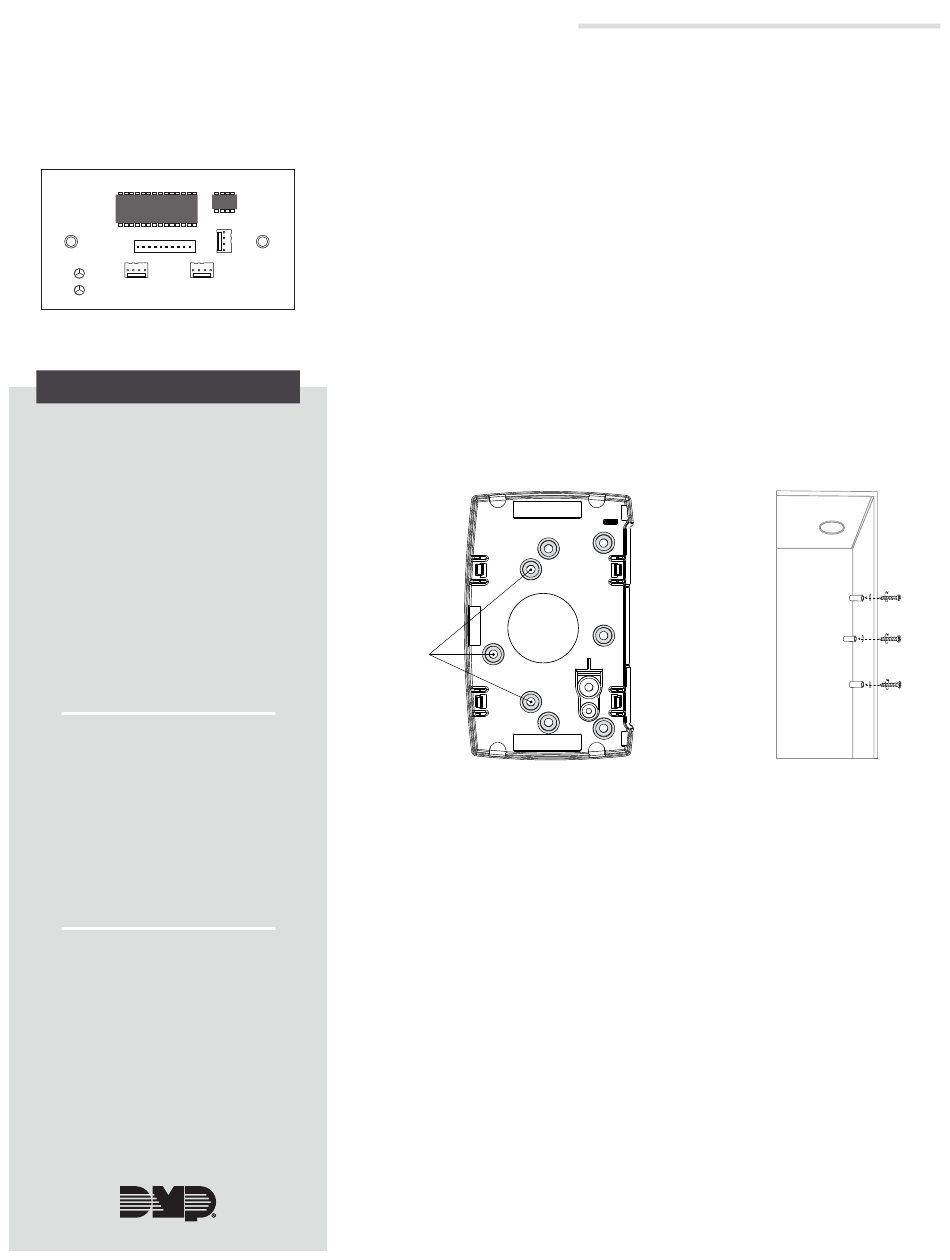

Figure 1: 738A Interface Module
DESCRIPTION
The 738A Ademco Interface
Module allows you to interface
Ademco 5881 wireless receivers
with the XR150/XR550 Series
and XT30/XT50 Series panels.
See "Compatibility" for specific
firmware levels. The module
provides up to 32 supervised,
programmable zones of Ademco
wireless transmitters.
The module supports the Armed,
Alarm, and Ready to Arm status
LEDs on an Ademco 5804BD. This
requires connecting an Ademco
5800TM to an XT30/XT50 panel.
•
XR150/XR550 Series panels
•
XT30/XT50 Series panels with
firmware Version 101 or higher
•
For a list of compatible Ademco
devices, refer to "Ademco
Compatibility".
What is Included?
•
One 738A Ademco Interface
Module
•
Two Model 300 4‑Wire Harnesses
•
Hardware Pack
1
MODEL 738A
2
MOUNT THE MODULE
The 738A comes in a high‑impact plastic housing that you can
mount directly to a wall, backboard, or other flat surface. For easy
installation, the back of the housing contains multiple holes that
allow you to mount the module on a single‑gang switch box or
ring. The module can also be mounted in a DMP enclosure using
the standard 3‑hole mounting pattern. Refer to Figure 2 and
Figure 3 as needed during installation.
1.
Hold the plastic standoffs against the inside of the enclosure
side wall.
2.
Insert the included Phillips head screws from the outside of
the enclosure into the standoffs. Tighten the screws.
3.
Carefully snap the module onto the standoffs.
Mounting
holes
Figure 2: Mounting Hole Locations
WIRE THE MODULE
After properly mounting the module, follow the instructions to
wire the module to the panel. Refer to Figure 4 for wiring details.
1.
For Keypad Bus operation, connect a Model 300 4‑wire
harness from the DMP BUS header to the Keypad Bus. For
LX‑Bus operation, connect a Model 300 4‑wire harness
from the DMP BUS header to the LX‑Bus.
2.
Connect the provided Model 300 4‑wire harness from
the RECEIVER header to the Ademco wireless receiver
and 5800TM transmitter harness. The maximum distance
between the Ademco wireless receiver and module is
3 feet.
3.
When programming, connect a Model 330 dual‑ended
programming cable from the PROG header to any DMP
keypad.
4.
Place the provided jumper across the PROGRAM header
to enter the 738A programming mode. When you're done
programming, remove the jumper from the PROGRAM
header and place it on one pin for future use.
Figure 3: Standoff Installation
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DMP Electronics ADEMCO 738A
Summary of Contents for DMP Electronics ADEMCO 738A
- Page 1 738A ADEMCO™ INTERFACE MODULE Installation Guide MOUNT THE MODULE MODEL 738A The 738A comes in a high‑impact plastic housing that you can mount directly to a wall, backboard, or other flat surface. For easy installation, the back of the housing contains multiple holes that allow you to mount the module on a single‑gang switch box or ring.
- Page 2 Model 738A Model 330 Programming Harness PROG DMP Model 300 Ademco Harness To Keypad Wire Color Wire Color RECEIVER PROGRAM Yellow Yellow Green Green Black Black Blue Model 300 4-Wire Harness To Keypad Bus 5800TM Transmitter or LX Bus Ademco Reciever Figure 4: 738A Wiring PROGRAM THE MODULE Programming Options...
- Page 3 ZONE NUMBERS XR150/XR550 SERIES LX‑BUS PANEL XT30/XT50 XR150/XR550 738A PANEL ZONE RANGE ADDRESS SERIES SERIES ADDRESS LX‑BUS LX‑BUS 1 LX‑BUS 2 LX‑BUS 3 LX‑BUS 5 11 to 14 11 to 14 21 to 24 21 to 24 31 to 34 31 to 34 41 to 44 41 to 44 51 to 54 51 to 54 61 to 64...
- Page 4 ADDITIONAL INFORMATION Wiring Specifications The maximum wire distance between the Ademco™ wireless receiver and the module is 3 feet. Refer to the following LX‑Bus and Keypad bus wiring specifications. DMP recommends using 18 or 22 AWG for all LX‑Bus and Keypad Bus connections. The maximum wire distance between any module and the DMP Keypad Bus or LX‑Bus circuit is 10 feet.
- Page 5 ADEMCO COMPATIBILITY Compatible Ademco Wireless Transmitters and Receivers Table 4 and Table 5 list current Ademco transmitters and receivers that have been tested by DMP and are compatible with the module. Other Ademco products have not been evaluated by DMP. The 738A module has not been tested by The module supports up to 32 wireless zones.
- Page 6 FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm (7.874 in.) from all persons.
