INSTALLATION
862N Network Interface Card and 862P Printer Interface Card
Description
The 862N card allows the 1912XR Command Processor™ Panel to communicate alarm and system reports
to the central station over existing data networks. The 862N provides selectable baud rate settings and
Transmit and Receive LEDs for verifying network communication.
The 862P card allows you to connect a serial printer to the 1912XR and provide local activity reports of
system events. The 862P is suitable for use with the SCS-PTR printer from DMP or a compatible 40 or 80
character serial printer.
Expansion Modules
The 862 card also provides a 4-wire
LX-Bus™ allowing you to connect
additional zone and output expander
modules or single point expanders to
the 1912XR panel.
Installing the 862 module
1. Remove AC and battery power
from the 1912XR panel before
installing the 862 card.
2. Remove the paper strip from the
base of the plastic standoff.
3. Carefully align the 40 pin connector
of the 862 with the J9 connector on
the 1912XR panel.
4. Gently press the 862 onto the J9
connector while applying even
pressure to both sides.
Installing the data cable
The data cable supplied with the 862 card contains one 8-pin modular end and one DB-25 male end.
1. Plug the cable's 8-pin modular end into the J1 Data Cable Connector on the 862.
2. Plug the cable's DB-25 male end into the appropriate connector on your data network equipment for the
862N or serial printer for the 862P.
Refer to the documentation supplied with your data network equipment for additional system connections.
Applying power to the 1912XR panel
After installing the 862 card and data cable, you can restore power to the 1912XR panel.
Installing expander modules
The LX-Bus™ on the 862 card allows you to add up to 100 zones of protection to the 1912XR using the
Models 711, 711E, 714, and 715 Zone Expanders. You can also add up to 100 Model 6155LX or DS775LX
PIRs or 5845LX Glassbreak Sensors to the LX-Bus™. For output expansion, you can add multiple 716
Output Expanders (4 Form C outputs and 4 annunciator outputs) and 717 Graphic Annunciator Modules
(20 annunciator outputs). Power for these devices is provided on the LX-Bus™ through the Black and Red
wires of the expansion harness.
To complete the installation:
1. Connect the Black wire (J13) from the 862 card to terminal 10 on the 1912XR panel.
2. Connect the Red wire (J14) from the 862 card to terminal 7 on the 1912XR panel.
2841 E. Industrial Drive Springfield, MO 65802-6310 800-641-4282
1912XR Panel
Baud Rate Jumpers
J11 and J12
Receive and
Transmit Jumpers
J6 and J7
J15
Red
Black
Red - To terminal 7
Black - To terminal 10

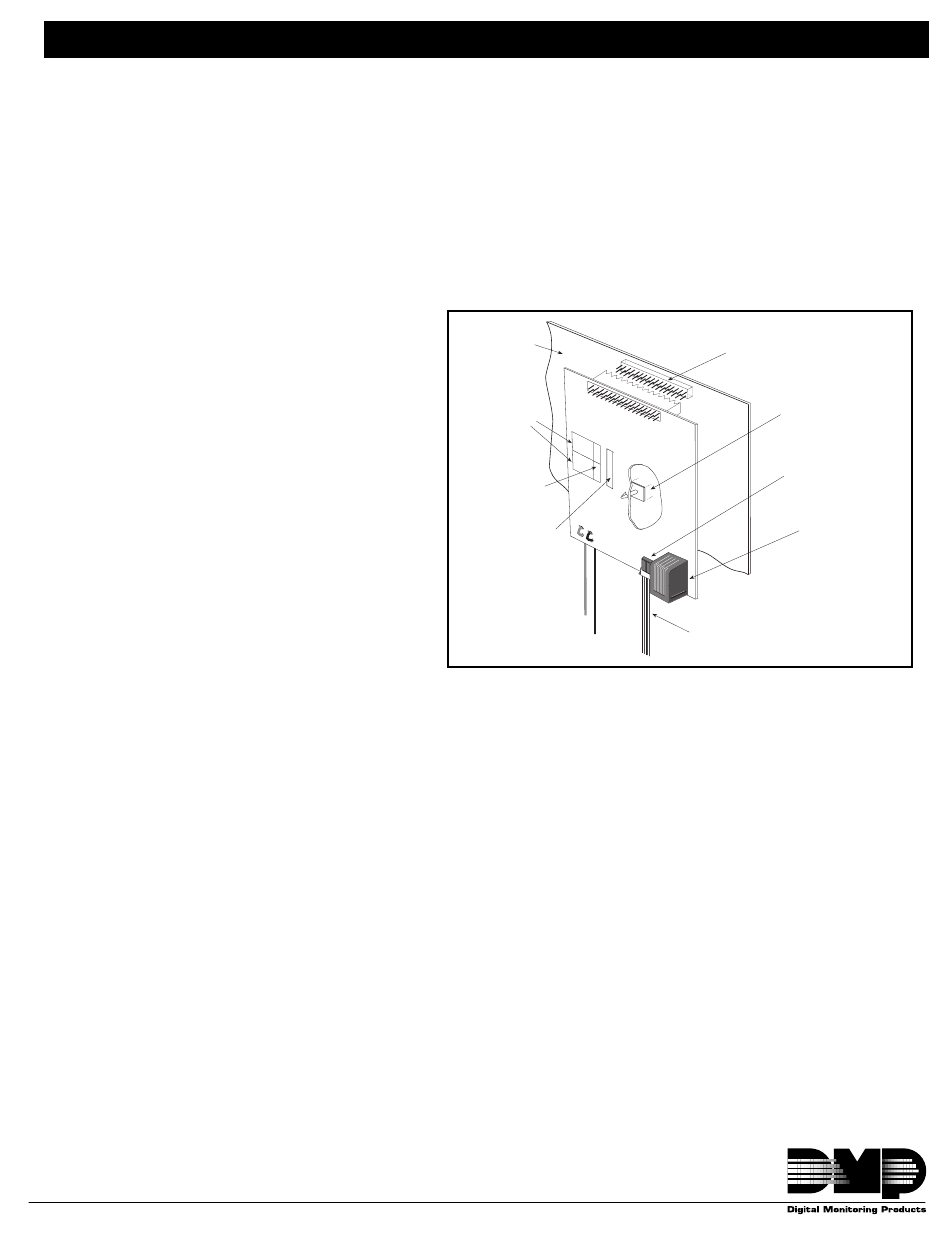

Figure 1: Installing the 862 on the 1912XR panel
1912XR Interface Cards
The 862 card plugs onto the J9
Expansion Connector on the 1912XR
Adhesive backed standoff
attaches to microprocessor.
J3 Loop Expansion Connector.
J1 Data Cable Connector.
{
Bk - Aux. Common
Loop Expander Harness
Gr - Serial Data Out
for connecting loop and
Yl - Serial Data In
output expander modules
to the 862 card.
Rd - Aux. Positive
LT-0202 (10/98)
