OPERATING GUIDE for your
© NAPCO 1997
GEM-RP1CAE2.pub
page 1

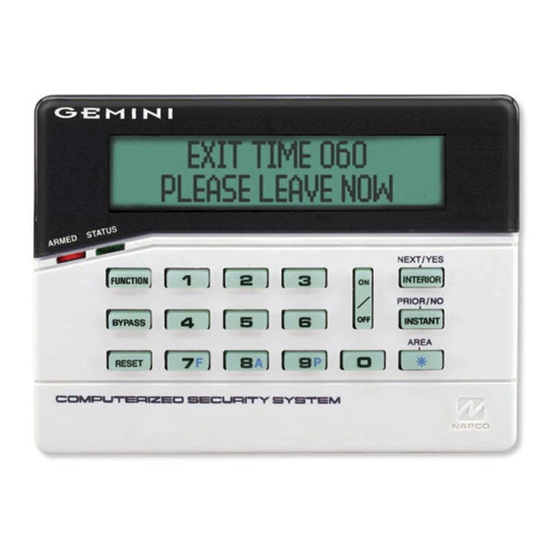

GEM-RP1CAe2 KEYPAD


NEXT/YES
PRIOR/NO
AREA
R
DESIGN PATS. PENDING
Tuesday, September 29, 1998 09:28
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEM-RP1CAe2 and is the answer not in the manual?

Questions and answers

Related Manuals for NAPCO GEM-RP1CAe2

Summary of Contents for NAPCO GEM-RP1CAe2

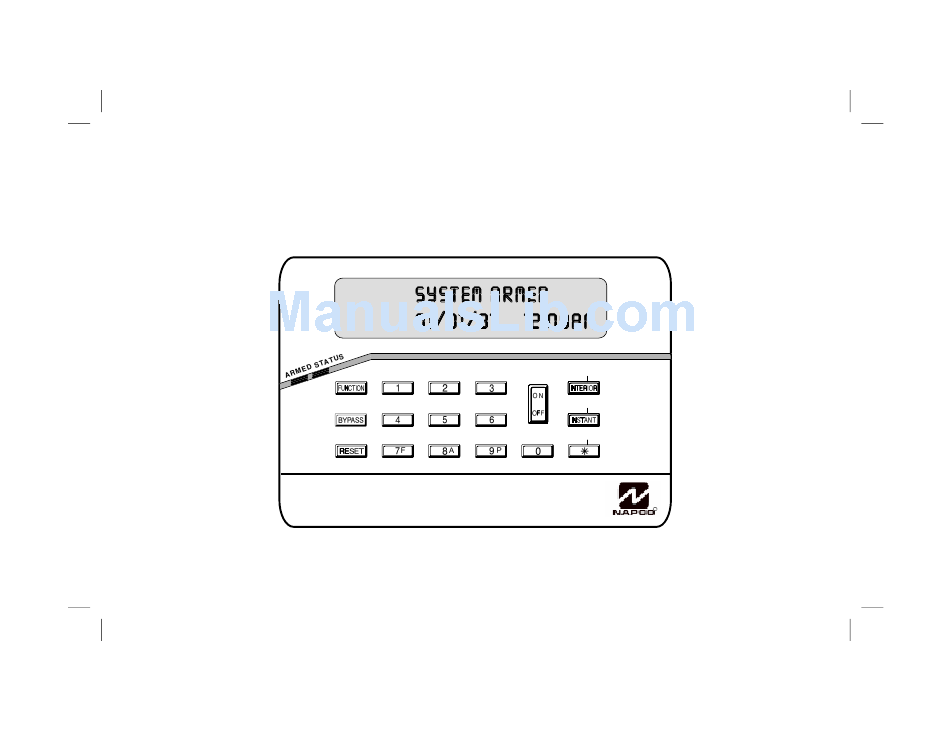

  • Page 1 OPERATING GUIDE for your GEM-RP1CAe2 KEYPAD  NEXT/YES PRIOR/NO AREA       © NAPCO 1997 DESIGN PATS. PENDING GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 1...
  • Page 2 I N T R O D U C T I O N The GEM-RP1CAe2 is a “ smart ” handy for future reference. Check Regardless of how your system the Glossary for an explanation of user-friendly, menu-driven keypad de- has been configured, rest assured that signed for your Napco control panel.

  • Page 3: Table Of Contents

    ___ NO KEYPAD PANIC ENABLED?: PROGRAMMING ....................20 ___ YES ___ NO KEYPAD MESSAGES ..................24 KEYPAD AUX. ENABLED?: GLOSSARY ....................27 ___ YES ___ NO SYSTEM TROUBLE ERROR CODES ............28 *FIRE HAS PRIORITY OVER BURGLARY. GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 3...
  • Page 4 K E Y P AD C O N T R O L S & I N D I C AT O R S GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 4...

  • Page 5: Keypad Controls & Indicators

    (NEXT). (3) An- • Press the and the swers “YES” to questions in the to button. buttons for Police Emergency. window display. BYPASS Button. (1) Deactivates INSTANT Button. (1) Cancels en- GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 5...

  • Page 6: Setting The Alarm (Arming) When Leaving

    A 3-second beep will sound at the panel to indicate arming with a Priority Zone in trouble. Be sure to have the trouble repaired as soon as possible. GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 6...
  • Page 7 Exit / Entry door and leave the premises. This will allow, for example, an early morning commuter to exit the house in the morning, without having to disarm and rearm the system, waking the family. GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 7...

  • Page 8: Protecting Yourself While On The Premises

    1. To cancel the entry delay while on the premises, merely press the button (either before or after arming).    2. When armed, the window will display “ ” and the red ARMED light will flicker rapidly to indicate instant protection. GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 8...
  • Page 9 • Auxiliary Emergency. Simultaneously press the buttons to alert the central station of some other emergency. • Police Emergency. Simultaneously press the buttons to alert the central station of a police emergency. GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 9...

  • Page 10: Turning Off The Alarm (Disarming) When Returning

    After the system is disarmed, the  window will continue to display “ ” followed by the zone(s) violated. 2. To reset the display, note the zones violated, then press the button. GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 10...
  • Page 11 Alarm Event Log. If an audible output is programmed, a 24-Hour Zone will behave as an armed Burglary Zone. If the system is subsequently armed with a 24-Hour Zone in trouble, the keypad sounder will come on momentarily to indicate that there is a problem on the zone. GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 11...

  • Page 12: Fire Protection

    1. If a problem in the fire-circuit is detected, “ ” will display and the sounder will pulse to signal a malfunction. 2. Press the button to silence the sounder. Call for service immediately! GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 12...
  • Page 13 Would You Like More Safety Information? For more information on home fire detection, burn safety, and home fire safety, write to the National Fire Protection Association, Public Affairs Dept. 05A, Batterymarch Plaza, Quincy, MA 02269. GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 13...
  • Page 14 F I R E P R O T E C T I O N Floorplan Draw a plan of your premises in the space provided below. Floorplan GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 14...
  • Page 15 Smoke detectors, though highly effective less likely to alert those on a different level. in reducing fire deaths, may not activate or Even those who are awake may not hear provide early-enough warning for a variety GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 15...

  • Page 16: Keypad Functions

    A “C” will appear in the display as long as the Chime Mode is active. To deactivate the Chime Mode, execute the DEACTIVATE CHIME function. Note: The Chime Mode is disabled while armed. GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 16...
  • Page 17 Activates the Program Mode from Keypad No. 1 only. Note: Activate Program is disabled while armed. Activate Download? Activates the Manual Download Mode from Keypad No. 1 (for installer or ser- vicer's use only). Note: Activate Download is disabled while armed. GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 17...

  • Page 18: Central-Station Monitoring

    Opening and/or Closing Report- ing. Your system can notify the cen- tral station every time it is disarmed or GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 18...

  • Page 19: Advanced Features

    Note: If a sys- tem trouble is indicated, the system cannot be armed using this method. To disarm all areas, press , enter your code and press GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 19...

  • Page 20: Programming

    4 minutes, a tone will sound; to silence the tone, press any button. • The programmed code or description will not be permanently stored until you press the Save Button. GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 20...

  • Page 21: Programming User Codes

    , then is displayed, simply program over it. To code in memory. erase the digit at the cursor, press the press the button. Repeat Steps 1 through 4 for each GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 21...
  • Page 22 Advance to the next zone using buttons move the cursor to the first character of the description and program a description as described above and repeat until all zones have been for the new zone. programmed. GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 22...
  • Page 23 User-3 code, delete each by press- button. The display will briefly read    " "# ing the “ ”, then “ — — “, representing the default User Code. GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 23...

  • Page 24: Keypad Messages

    Arming attempted with zone in trouble. Press the button to display zone faults. Correct trouble to arm. (With pulsing sounder.) Trouble condition on a Day Zone (followed by one or more zone descriptions). Press the button to silence sounder. GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 24...
  • Page 25 (In Manager's Mode.) Arming prevented due to unsecured zone. “#” represents number of area with unsecured zone. Press area number, then the button, then the button to view zones in that area. Correct problem, then arm as normal. GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 25...
  • Page 26 TROUBLE ERROR CODES for a complete list of system troubles.) Check power transformer. Check for blown fuse or circuit breaker; general power outage. Battery weak. If not recharged within 24 hours, replace battery. Communication failure to central station GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 26...

  • Page 27: Glossary

    Control Panel - The brain of the protection in the event of a power fail- system, it controls all system func- ure. tions. BYPASS Button - Enables you to Directory - A listing of the pro- GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 27...

  • Page 28: System Trouble Error Codes

    Ringback). status of the system (alarm, trouble, System Trouble - A problem (low low battery, etc.). battery, power failure, etc.) detected RF Low Battery - (Wireless sys in the system. GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 28...
  • Page 29 • Priority Zone: A zone that pre- vents arming if in trouble. • Priority Zone with Bypass: A Pri- ority Zone that can be bypassed using the button. • Selective-Bypassed Zone: A zone GEM-RP1CAE2.pub Tuesday, September 29, 1998 09:28 page 29...
