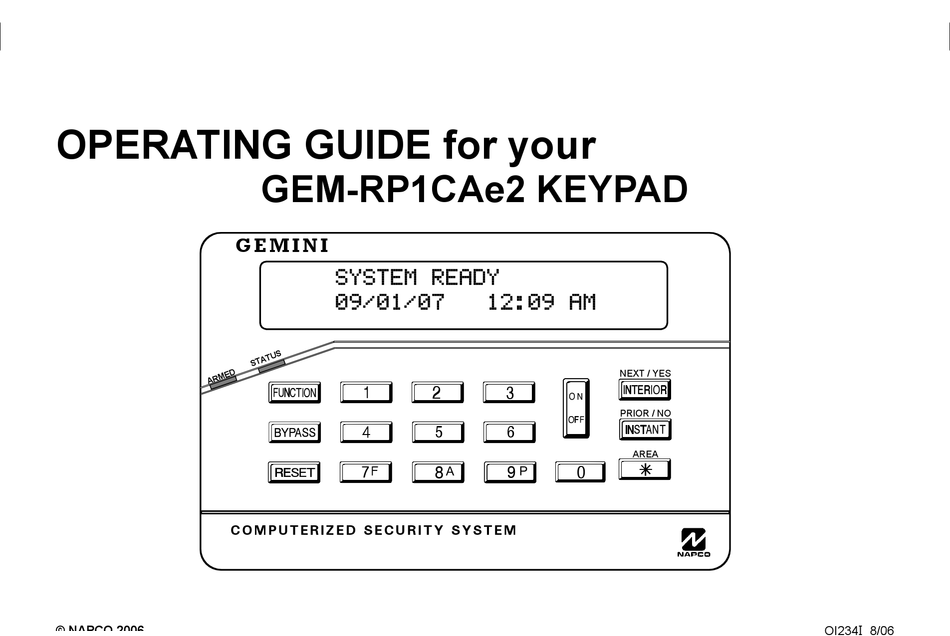

OPERATING GUIDE for your
© NAPCO 2006
GEM-RP1CAe2 KEYPAD
G E M I N I
SYSTEM READY
09/01/07
A 1 2 3
B 4 5 6
C 7 8 9 0
C O M P U T E R I Z E D S E C U R I T Y S Y S T E M
12:09 AM
NEXT / YES
J
E
PRIOR / NO
F
AREA
G
OI234I 8/06
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEM-RP1CAe2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NAPCO GEM-RP1CAe2

Summary of Contents for NAPCO GEM-RP1CAe2

  • Page 1 OPERATING GUIDE for your GEM-RP1CAe2 KEYPAD G E M I N I SYSTEM READY 09/01/07 12:09 AM NEXT / YES A 1 2 3 PRIOR / NO B 4 5 6 AREA C 7 8 9 0 C O M P U T E R I Z E D S E C U R I T Y S Y S T E M ©...
  • Page 2 I N T R O D U C T I O N The GEM-RP1CAe2 is a “smart” handy for future reference. Check the Regardless of how your system has user-friendly, interactive menu-driven Glossary for an explanation of terms been configured, rest assured that it has keypad designed for your Napco control that may be unfamiliar to you.

  • Page 3: Table Of Contents

    T AB L E O F C O N T E N T S TABLE OF CONTENTS TO SILENCE AN ALARM, ENTER YOUR CODE, AND PRESS Section Page FOR SERVICE, CALL: _____________________ KEYPAD CONTROLS & INDICATORS ..........4 CENTRAL STATION: _____________________ SETTING THE ALARM (ARMING) WHEN LEAVING .......

  • Page 4: Keypad Controls & Indicators

    K E Y P AD C O N T R O L S & I N D I C AT O R S G E M I N I SYSTEM ARMED 09/01/07 12:07 AM NEXT / YES PRIOR / NO AREA C O M P U T E R I Z E D S E C U R I T Y S Y S T E M...
  • Page 5 K E Y P AD C O N T R O L S & I N D I C AT O R S Window. Displays system status INSTANT Button. (1) Cancels BYPASS Button. (1) Deactivates messages, zone descriptions, etc. entry delay on Exit/Entry Zones, selected zones from the system.

  • Page 6: Setting The Alarm (Arming) When Leaving

    S E T T I N G T H E AL AR M ( AR M I N G ) W H E N L E AV I N G Arming the System S YS TEM RE AD Y Check the keypad. The green STATUS light must be on in order to arm. If the green light is off, “ZONES FAULTED”...
  • Page 7 S E T T I N G T H E AL AR M ( AR M I N G ) W H E N L E AV I N G System Trouble S YS TEM TROUB LE If you attempt to arm with a “SYSTEM TROUBLE” display alternating with an indicated trouble code (e.g.

  • Page 8: Protecting Yourself While On The Premises

    P R O T E C T I N G Y O U R S E L F W H I L E O N T H E P R E M I S E S Bypassing Interior Zones S Y S T E M R E A D Y BYPASSED I nterior Zones, when bypassed, allow free movement within the home while the protection of armed perimeter zones is maintained.
  • Page 9 P R O T E C T I N G Y O U R S E L F W H I L E O N T H E P R E M I S E S Easy Exit (Optional - Easy Exit programmed? Your system may have been programmed for Easy Exit, which allows a user to exit the premises while the system is armed.

  • Page 10: Turning Off The Alarm (Disarming) When Returning

    T U R N I N G O F F T H E AL AR M ( D I S AR M I N G ) W H E N R E T U R N I N G Disarming the System D I S A R M S Y S T E M Enter your premises through the Entry/Exit door.

  • Page 11: Fire Protection

    F I R E P R O T E C T I O N (Applicable only where local ordinance permits use of this alarm control panel for fire protection.) Fire-Zone Alarm F I R E A L A R M FIRE If a fire is detected, “FIRE ALARM”...
  • Page 12 F I R E P R O T E C T I O N 2. One person sounds the alarm. against it and open it cautiously. Be Preparing a Fire Escape Plan Even with the most advanced fire alarm 3. Each person tests his door. ready to slam the door if smoke or system, adequate protection requires an 4.
  • Page 13 F I R E P R O T E C T I O N Floorplan Draw a plan of your premises in the space provided below. Floorplan...
  • Page 14 F I R E P R O T E C T I O N LIMITATIONS OF FIRE ALARM WARNING SYSTEM provide early-enough warning for a variety of who are awake may not hear the warning if Although a fire alarm system may be of a reasons: (a) they may not sense fires that the alarm is obscured by noise from a stereo, reliable and state-of- the-art design, neither it...

  • Page 15: Keypad Functions

    K E Y P AD F U N C T I O N S The keypad can provide access to a wide assortment of utility functions. The functions are displayed in a prompting “YES/NO” format. 1 To enter the Function Menu, press •...
  • Page 16 K E Y P AD F U N C T I O N S Activate Bell Test? Activates the alarm (while disarmed) for about 2 seconds and performs a A C T I V A T E battery test. If the alarm does not sound, call for service. B E L L T E S T Y / N •...
  • Page 17 K E Y P AD F U N C T I O N S Reset System Trouble? System troubles display and sound at the keypad. Correcting R E S E T the trouble will clear most indications, however the following error codes will require S Y S T R B L Y / N manual reset: E13;...
  • Page 18 K E Y P AD F U N C T I O N S Activate Telephone Test? Sends a (Telephone Test programmed? NO). A C T I V A T E communicator test to the central station. A communication failure will be indicated D I A L E R T E S T Y / N at the keypad by a system trouble “E03-FAIL TO COMM”...
  • Page 19 K E Y P AD F U N C T I O N S Activate Program? Activates the Program Mode from Keypad No. 1. Note: This A C T I V A T E feature is disabled while armed. (See PROGRAMMING USER CODES) P R O G R A M Y / N Activate Download?

  • Page 20: Central-Station Monitoring

    C E N T R AL S T A T I O N M O N I T O R I N G Your alarm specialist have arming (Closing Report), the central Opening and/or Closing Reporting. programmed your system Your system can notify the central station will acknowledge arming.

  • Page 21: Advanced Features

    A D V AN C E D F E AT U R E S Security Bypass/Unbypass (Security Bypass programmed? NO). In high-security applications, zones may be bypassed (or unbypassed) only if a valid code is entered first, as follows: 1. Enter a User Code valid for bypass, then press 2.

  • Page 22: Programming User Codes

    P R O G R AM M I N G ( O P T I O N A L ) User Program Mode Your Installer has programmed into your system a special User Program Code which can be used to not only Arm and Disarm the system, but also to enter the User Program Mode, where you can program other User Codes, Zone Descriptions and also set the system Time and Date.
  • Page 23 P R O G R AM M I N G ( O P T I O N A L ) Reviewing a Programmed User Code To review an existing User Code, enter the user number and the corresponding User Code will display. Exiting the User Program Mode When you have completed programming or erasing User Codes, press to exit the User Program Mode.

  • Page 24: Enter Zone Descriptions -- "Cell Phone Style

    P R O G R AM M I N G ( O P T I O N A L ) Programming Zone Descriptions The zone descriptions which appear on the keypad display may be programmed in the User Program Mode. Enter the User Program Mode A C T I V A T E P R O G R A M...
  • Page 25 E N T E R Z O N E D E S C R I P T I O N S - - " C E L L P H O N E S T Y L E " EXAMPLE: Repeatedly press to display "G H I 3"...

  • Page 26: Setting The Date And Time

    P R O G R AM M I N G ( O P T I O N A L ) Programming the system Date and Time. The User Program Mode may also be used to set the system Date and Time which display on the keypad. Enter the User Program Mode A C T I V A T E Enter your User Code, then press...

  • Page 27: Keypad Messages

    K E Y P AD M E S S AG E S The keypad can display the following functional messages. Other diagnostic messages are available for the installer or servicer. Should any unfamiliar messages appear, call your dealer for service. All zones operating;...
  • Page 28 K E Y P AD M E S S AG E S Alarm condition, followed by zone description(s). “ALARM” and zones will display after * * * * A L A R M * * * * system is disarmed. Note zones, then press to clear keypad.
  • Page 29 K E Y P AD M E S S AG E S The system is in the process of reporting a cancel signal to central station which will A T T E M P T I N G T O cancel the alarm which it has just reported.

  • Page 30: Glossary

    G L O S S AR Y Following are brief descriptions of terms and features used herein that may be unfamiliar to you. Some of the features are programmable options that may or may not apply to your particular system. Areas.
  • Page 31 G L O S S AR Y Exit/Entry Delays - Separate delays station of a fire, auxiliary, or police trouble will result). that let you exit and enter your emergency. Ringback - A beep after arming premises without setting off an alarm verifying the central-station's receipt of Partitioned System - A system that when the system is armed.
  • Page 32 G L O S S AR Y User Code - Your personalized code for arming and disarming the Exit/Entry Follower Zone: Priority Zone: A zone that system. It may contain up to six digits. Provides exit and entry delay for prevents arming if in trouble.

  • Page 33: System Trouble Error Codes

    S Y S T E M T R O U B L E E R R O R C O D E S Your control panel is capable of detecting a variety of troubles that may affect system performance. In the unlikely event that a problem should occur, the SYS TBL (system trouble) icon will display on the left side of keypad window along with one or more of the following error codes.
  • Page 34 S Y S T E M T R O U B L E E R R O R C O D E S Trouble System Trouble Action Indication Condition E04-NN Wireless Transmitter A problem has been detected with a wireless transmitter. Call installing company for service. Supervisory Failure Wireless Transmitter The battery in a wireless transmitter is low and should be replaced.
  • Page 35 S Y S T E M T R O U B L E E R R O R C O D E S Trouble System Trouble Action Indication Condition Keypad Response Failure Call installing company for service. E10-NN E11-NN Keypad Tamper A keypad has been removed from the wall.
  • Page 36 S Y S T E M T R O U B L E E R R O R C O D E S Trouble System Trouble Action Indication Condition E19-00 User Program Memory Call installing company for service. Error Dealer Program Call installing company for service.
  • Page 37 S Y S T E M T R O U B L E E R R O R C O D E S Trouble System Trouble Action Indication Condition RF Self Test Failure A wireless motion sensor on the zone indicated has failed its automatic self test routine. E40-00 Call installing company for service.

  • Page 38: Troubleshooting

    T R O U B L E S H O O T I N G What do I do if... For more info... I try to arm my system but the keypad just displays “ZONES NOT NORMAL” and “CAN’T ARM SYSTEM”...
  • Page 39 N O T E S...
  • Page 40 In no event shall NAPCO be liable for an amount in excess of NAPCO's original selling price of the product, This warranty shall not apply to any equipment, or any part thereof, which has been repaired by others,...
