Disassembly Instruction - Icom IC-R6 Service Manual

SECTION 3.

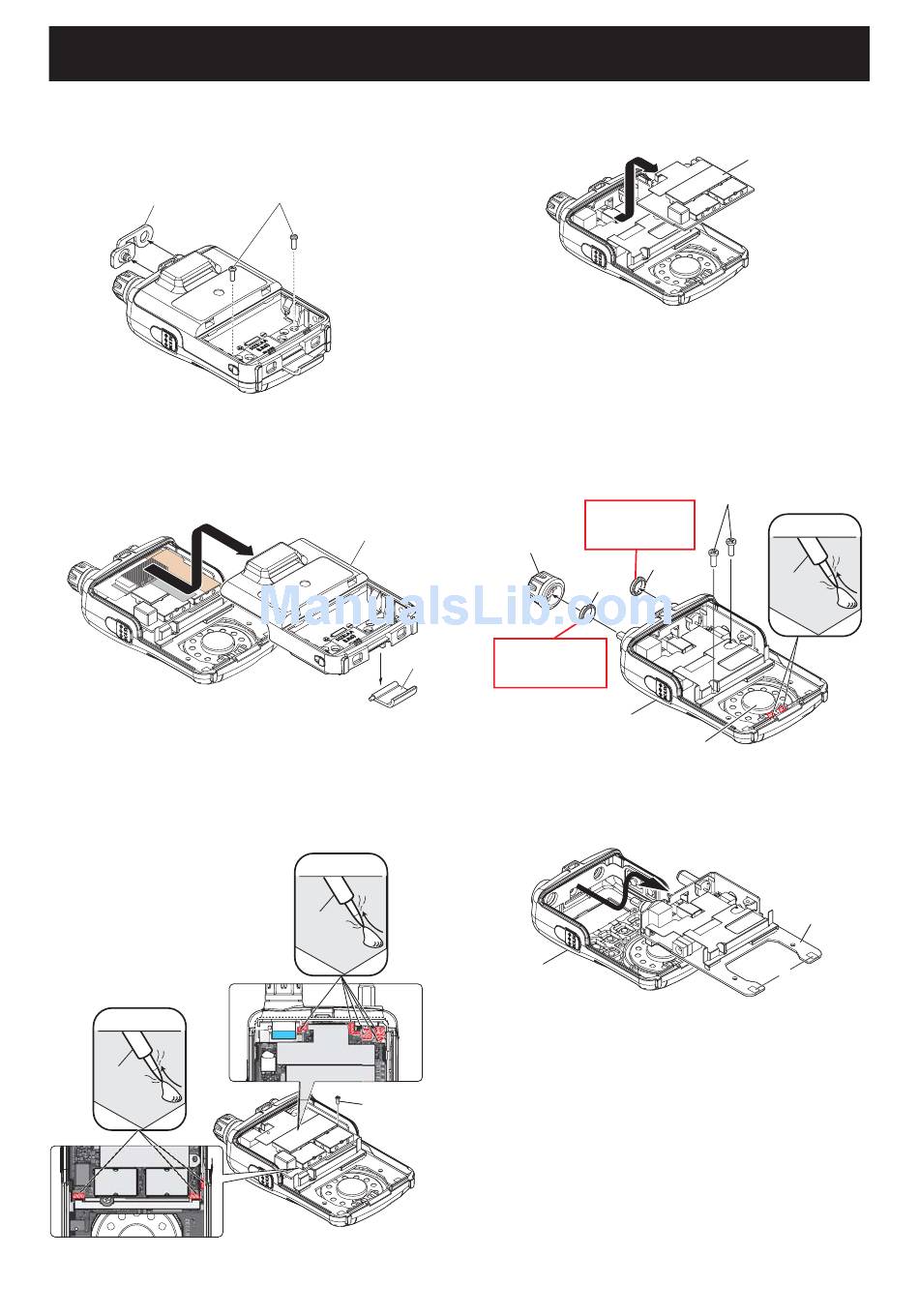

1. REMOVING THE REAR PANEL
1) Remove the battery cover.
2) Remove 2 screws and jack cap.
JACK CAP
3) Remove the rear panel in the direction of the arrow.
(NOTICE: The latch falls off when removing the rear
panel.)
2. REMOVING THE RF UNIT
1) Remove a screw from the RF UNIT.
2) Unsolder the total of 8 points as shown below.
UNSOLDER
Solder
remover

DISASSEMBLY INSTRUCTION

SCREW×2
REAR PANEL
LATCH
UNSOLDER
Solder
remover
SCREW
(Continued to the right above)
3) Remove the RF UNIT in the direction of the arrow.
3. REMOVING THE LOGIC UNIT
1) Remove the dial knob, 2 nuts and 2 screws from the
front panel.
2) Unsolder the 2 points from the speaker.
Remove with;
"ICOM Driver (Q)"
(8960000370)
DIAL KNOB
VOL NUT
Remove with;
"ICOM Driver (L2)"
(8960000171)
FRONT PANEL
3) Remove the LOGIC UNIT in the direction of the
arrow.
FRONT PANEL
3 - 1
RF UNIT
SCREW
UNSOLDER
ANT NUT
Solder
remover
SPEAKER
LOGIC UNIT
