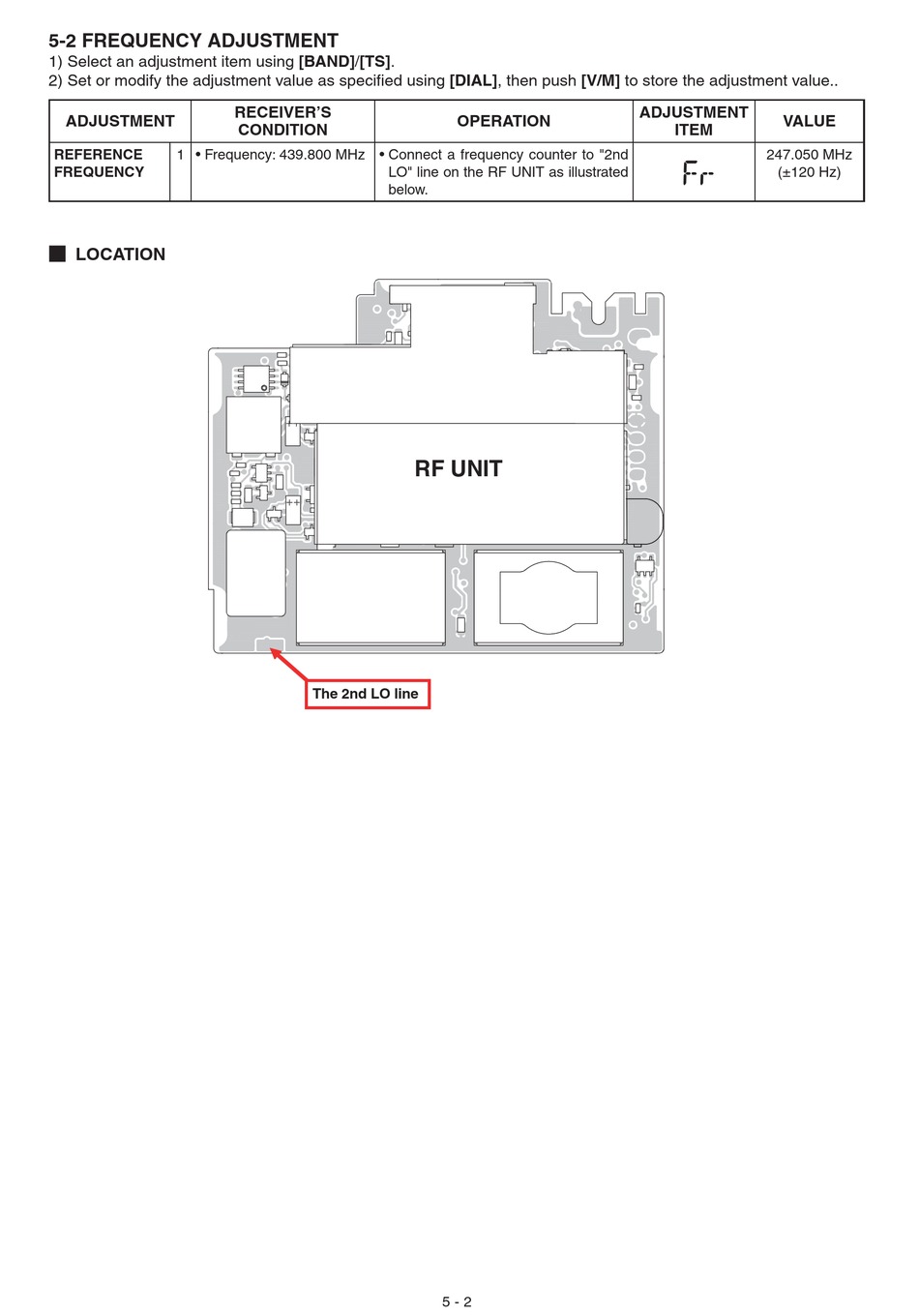

5-2 FREQUENCY ADJUSTMENT

1) Select an adjustment item using [BAND]/[TS].
2) Set or modify the adjustment value as specifi ed using [DIAL], then push [V/M] to store the adjustment value..
ADJUSTMENT
REFERENCE 1 • Frequency: 439.800 MHz • Connect a frequency counter to "2nd
FREQUENCY
¤ LOCATION
RECEIVER'S
CONDITION
LO" line on the RF UNIT as illustrated
below.
The 2nd LO line
OPERATION
RF UNIT
5 - 2
ADJUSTMENT
VALUE
ITEM
247.050 MHz
(±120 Hz)
