A.2 GPIO Terminal Application
Typically used in association with programming scripts for
developing applications for motion detection, event triggering, alarm
notification via e-mail, and a variety of external control functions. The
GPIO connectors are located on the rear panel of the camera, which
provide the interface of connecting the sensor device (IN) and
controlled device (OUT).
Connector Pin Assignment
PIN SPECIFICATION
IN Active High voltage 9~40V DC;
Dropout-out voltage 0V DC
Close circuit current 70mA AC or 100mA DC maximum,
OUT
Output resistance 30 Ohm;
Open circuit voltage 240V AC or 350V DC maximum

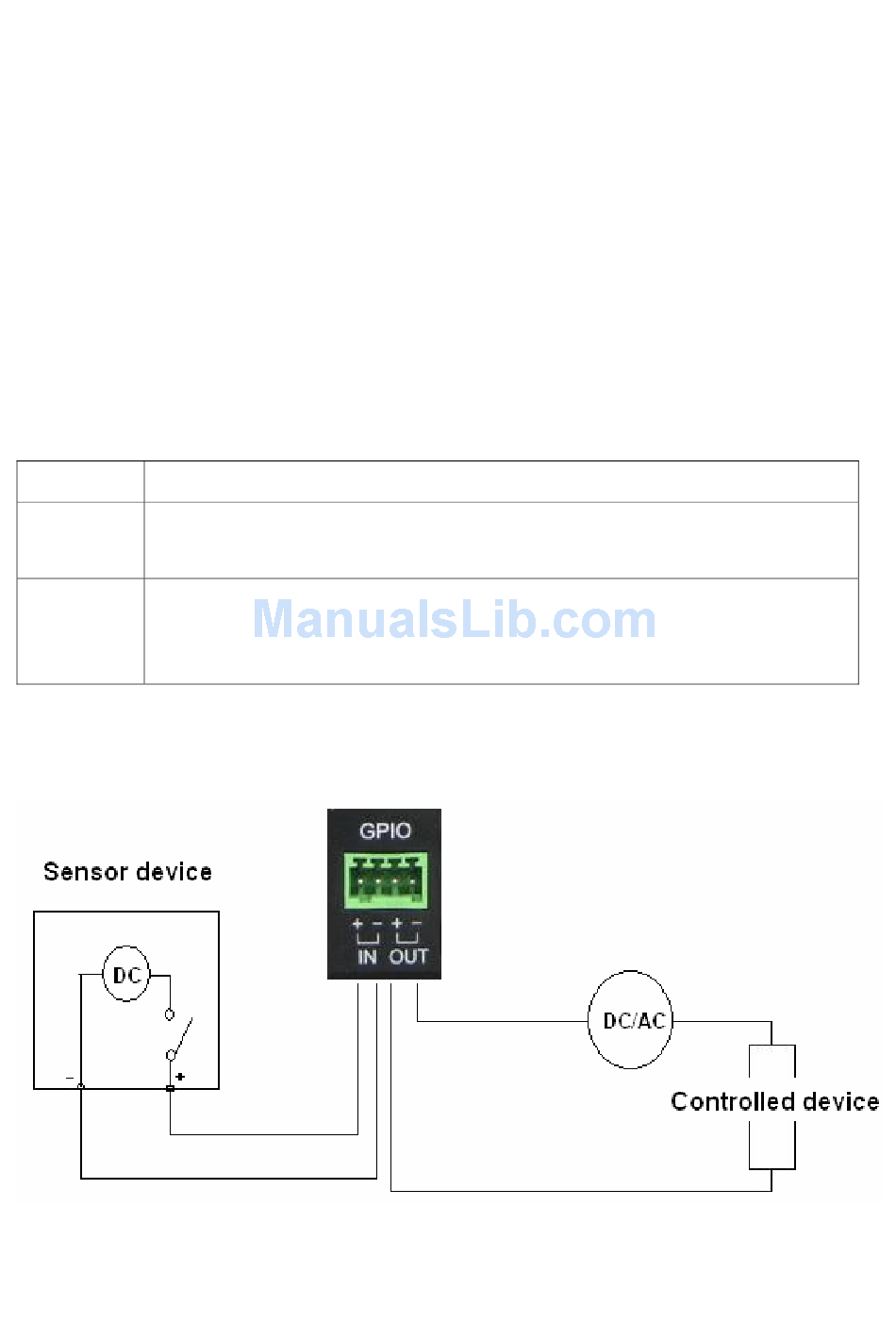

Interface Schematic
