IPUX ICS1330 Installation Manual page 34

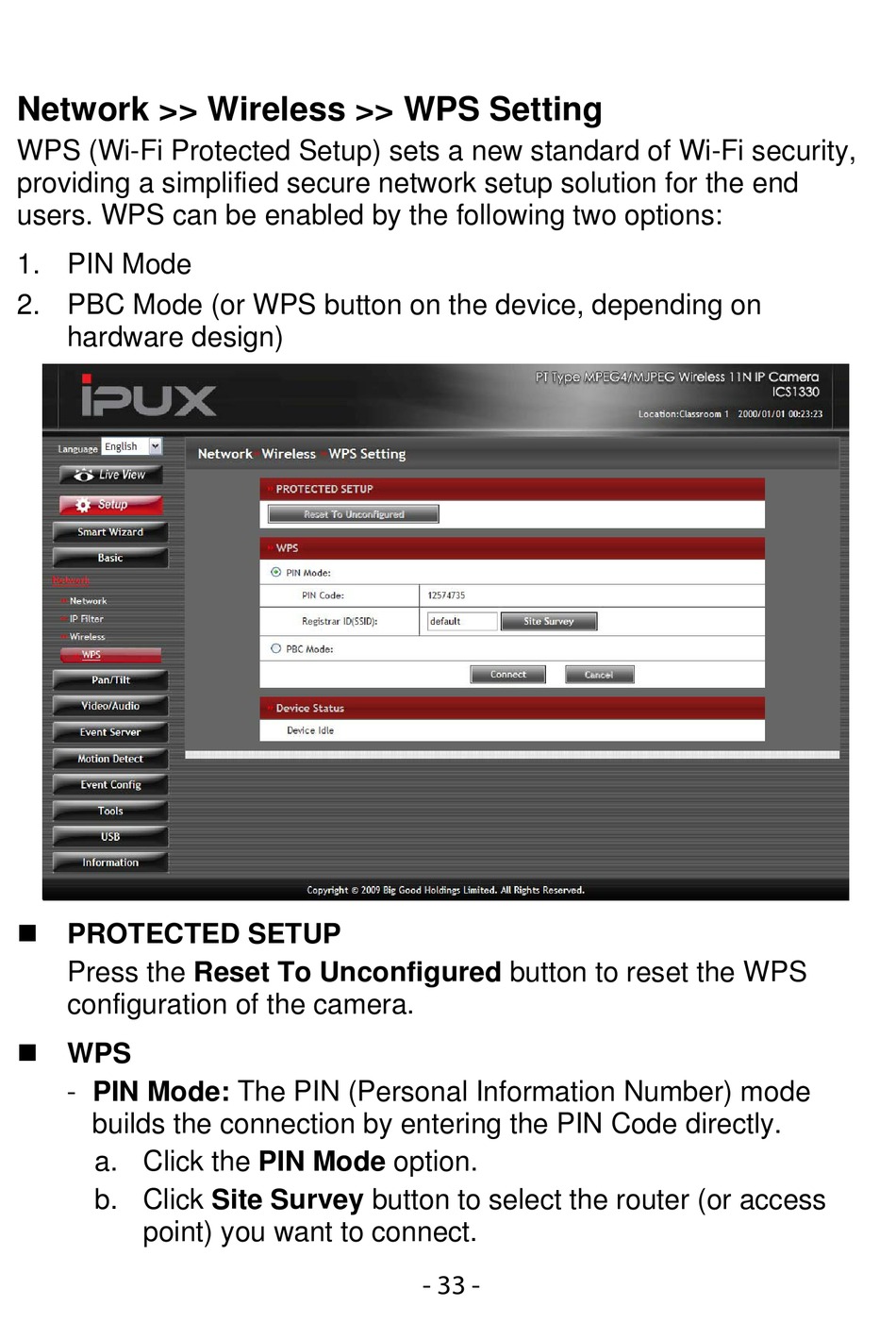

Network >> Wireless >> WPS Setting
WPS (Wi-Fi Protected Setup) sets a new standard of Wi-Fi security,
providing a simplified secure network setup solution for the end
users. WPS can be enabled by the following two options:
1. PIN Mode
2. PBC Mode (or WPS button on the device, depending on
hardware design)
 PROTECTED SETUP
Press the Reset To Unconfigured button to reset the WPS
configuration of the camera.
 WPS
- PIN Mode: The PIN (Personal Information Number) mode
builds the connection by entering the PIN Code directly.
a. Click the PIN Mode option.
b. Click Site Survey button to select the router (or access
point) you want to connect.
- 33 -
