A P P E N D I; Specification - IPUX ICS1330 Installation Manual

A
PPENDIX

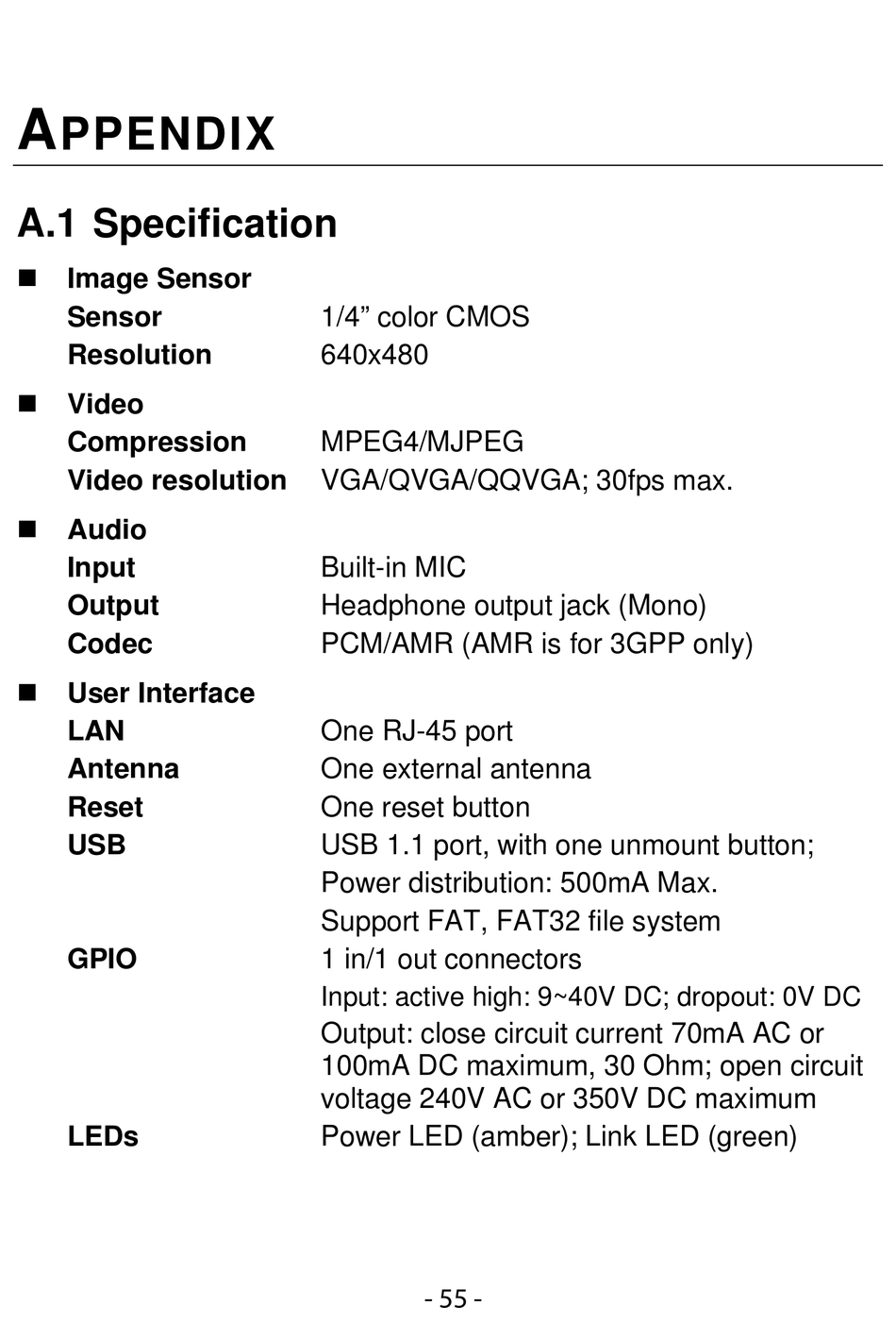

A.1 Specification
 Image Sensor
Sensor
Resolution
 Video
Compression
Video resolution
 Audio
Input
Output
Codec
 User Interface
LAN
Antenna
Reset
USB
GPIO
LEDs
1/4" color CMOS
640x480
MPEG4/MJPEG
VGA/QVGA/QQVGA; 30fps max.
Built-in MIC
Headphone output jack (Mono)
PCM/AMR (AMR is for 3GPP only)
One RJ-45 port
One external antenna
One reset button
USB 1.1 port, with one unmount button;
Power distribution: 500mA Max.
Support FAT, FAT32 file system
1 in/1 out connectors
Input: active high: 9~40V DC; dropout: 0V DC
Output: close circuit current 70mA AC or
100mA DC maximum, 30 Ohm; open circuit
voltage 240V AC or 350V DC maximum
Power LED (amber); Link LED (green)
- 55 -
