9. Adjust the image (See pages 18-26)
Make adjustments when picture adjustment such as the
brightness or contrast is required.
10. Recommended Adjustment
To reduce the risk of "image persistence", please adjust the
following items based on the application being used.
"SCREEN SAVER" (See page 22), "SIDE BORDER COLOR"
(See page 22), "DATE & TIME" (See page 26), "SCHEDULE"
(See page 26).

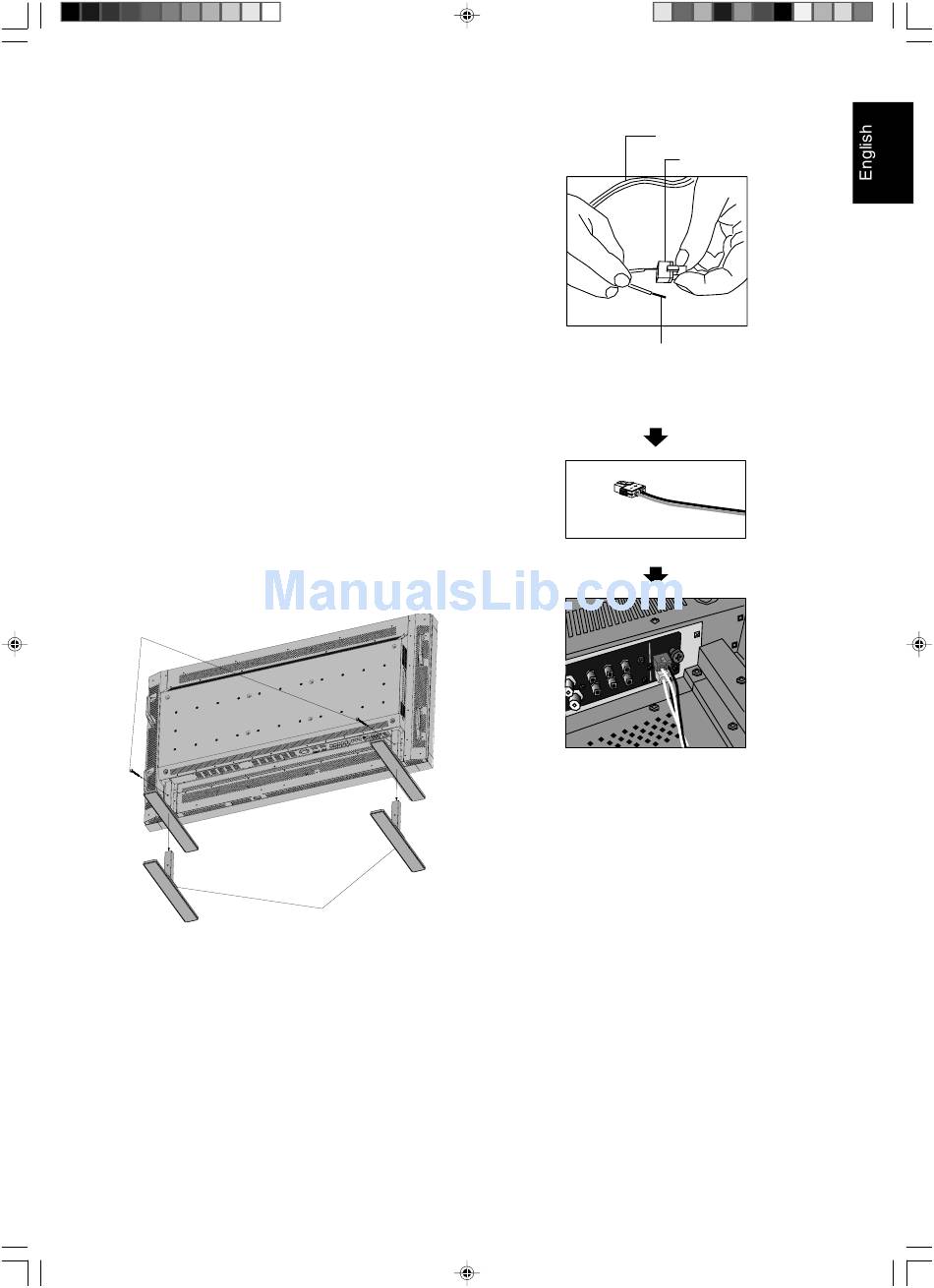

11. Installing and removing stand
CAUTION: Installing and removing the stand must be done
by two or more people. It is recommended that
4 people install and remove the stand, due to
its weight of almost 63.0kg.
How to install stand
1. Please turn monitor off.
2. Place stand onto monitor with the long ends of the feet in
front of the monitor.
3. After inserting stand in guide block, fasten thumbscrews
on both sides of the monitor.
How to remove the stand
1. Spread the protective sheet on the flat surface, such as
a desk.
2. Place monitor on the protective sheet.
3. Remove thumbscrews with a screwdriver or with your
fingers and place them in a safe place for reuse.
Thumbscrews
CAUTION: Handle with care when mounting the display
stand and avoid pinching your fingers.
NOTE: Place stand onto monitor so that the long end of
the feet are in the front.
12. When using external speakers
We recommend to using the option speakers designed for
the MultiSync LCD5710.
The external speaker terminals of the MultiSync LCD5710
may be connectable with the speaker plug of a mainframe
sound speaker.
It this case, please exchange the lead connector of a
mainframe sound speaker for an attached speaker plug.
01_English
Stand
9
How to use the attached speaker plug
Insert the negative (-) side of a standard speaker cable into the
negative (-) side of the speaker plug. The negative side of a
standard speaker cable has a stripe running the length of the cable.
Insert remaining wire into the positive (+) side of the speaker plug.
Hold down on the small lever on the speaker plug to insert cable.
Fixed cable and speaker plug.
Insert the fixed cable and speaker plug to the speaker terminal.
English-9
10/8/06, 11:12
Standard cable
Speaker plug
