The following 9 steps are intended to simplify the installation
process and help you move quicker to your next install
Contact your DSC distributor
www.dsc.com
1-888-888-7838
1
.
Remove Front Plate
To remove the front plate, place a small screwdriver in the bottom left and right-hand corner slots
of the system.
2
.
Route Telephone Wiring
Begin by routing telephone line wiring, AC and any inputs/outputs that may be required, through the
back plate and wire them to the terminal block.
3
.
Mount the Back Plate
Determine placement location and mount the back plate to the wall using drywall plugs (4) and
screws (4).
WWW.DIYALARMFORUM.COM
Pa n e l s, K e y Pa d s & m o d u l e s
Quick-start
Installation Guide
Powerseries

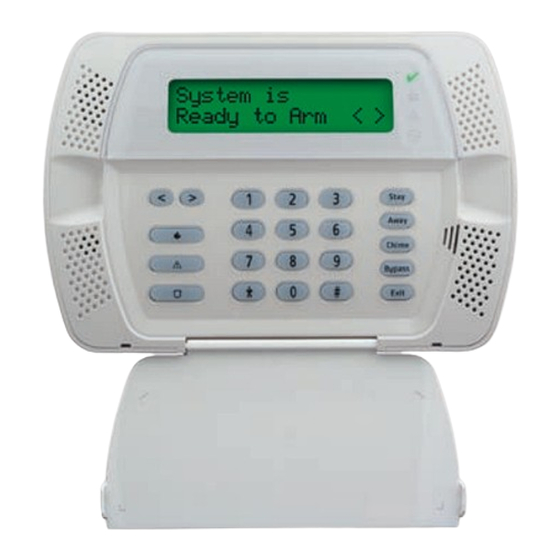

Powerseries 9047
9047
™
Advertisement
Table of Contents
Related Manuals for DSC powerseries 9047
Summary of Contents for DSC powerseries 9047
- Page 1 Begin by routing telephone line wiring, AC and any inputs/outputs that may be required, through the back plate and wire them to the terminal block. Mount the Back Plate Determine placement location and mount the back plate to the wall using drywall plugs (4) and screws (4). WWW.DIYALARMFORUM.COM Contact your DSC distributor www.dsc.com 1-888-888-7838...
- Page 2 The proposed placement of each wireless device should be tested before it is mounted by entering section [904]. Testing the signal strength between the PowerSeries 9047 and wireless devices can be accomplished in a group (global placement testing) or individuall WWW.DIYALARMFORUM.COM...
