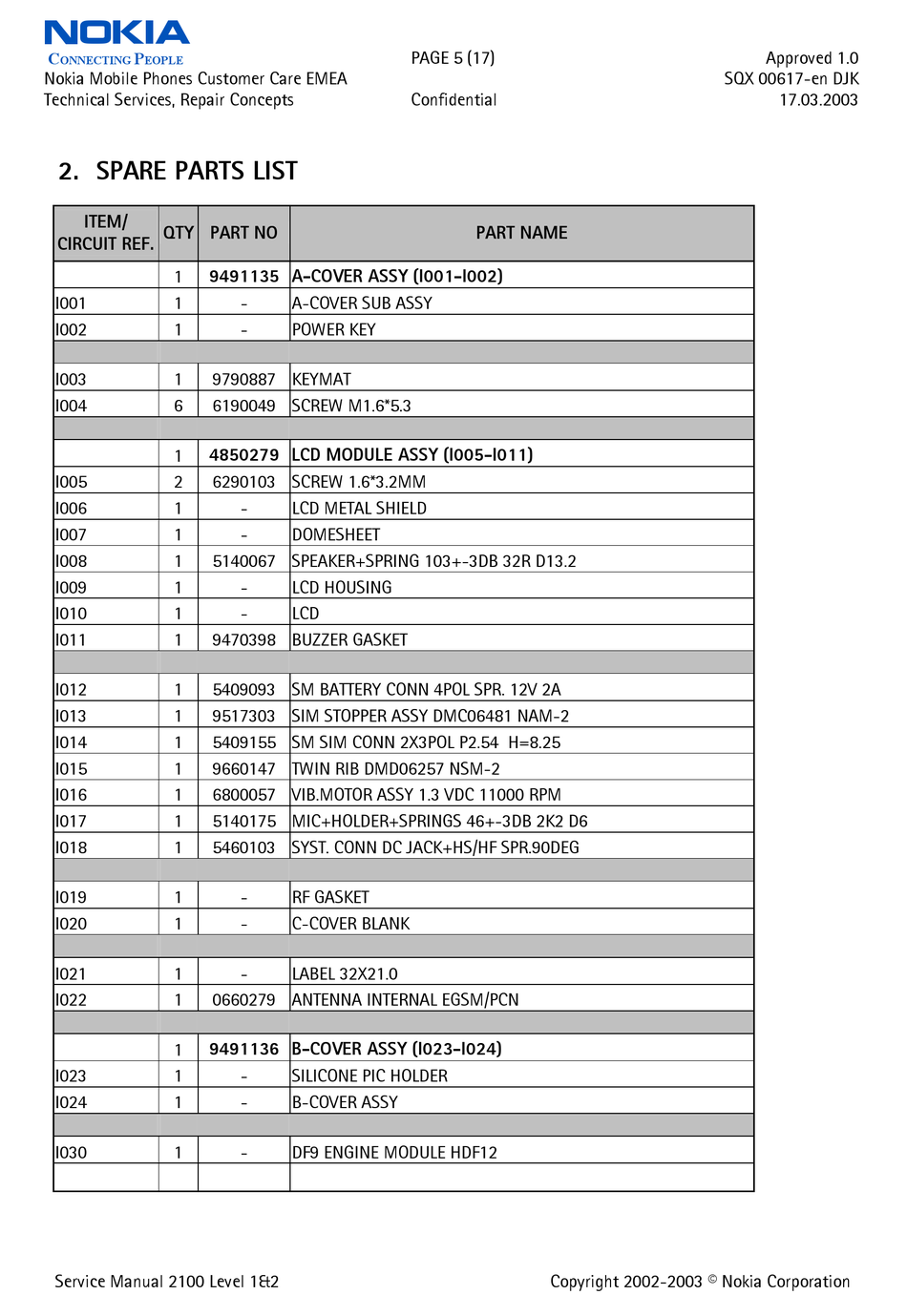

2. SPARE PARTS LIST

ITEM/
QTY PART NO
CIRCUIT REF.
9491135 A-COVER ASSY (I001-I002)
1
I001 1
I002 1
I003 1 9790887 KEYMAT
I004 6 6190049 SCREW M1.6*5.3
4850279 LCD MODULE ASSY (I005-I011)
1
I005 2 6290103 SCREW 1.6*3.2MM
I006 1
I007 1
I008 1 5140067 SPEAKER+SPRING 103+-3DB 32R D13.2
I009 1
I010 1
I011 1 9470398 BUZZER GASKET
I012 1 5409093 SM BATTERY CONN 4POL SPR. 12V 2A
I013 1 9517303 SIM STOPPER ASSY DMC06481 NAM-2
I014 1 5409155 SM SIM CONN 2X3POL P2.54 H=8.25
I015 1 9660147 TWIN RIB DMD06257 NSM-2
I016 1 6800057 VIB.MOTOR ASSY 1.3 VDC 11000 RPM
I017 1 5140175 MIC+HOLDER+SPRINGS 46+-3DB 2K2 D6
I018 1 5460103 SYST. CONN DC JACK+HS/HF SPR.90DEG
I019 1
I020 1
I021 1
I022 1 0660279 ANTENNA INTERNAL EGSM/PCN
9491136 B-COVER ASSY (I023-I024)
1
I023 1
I024 1
I030 1
Service Manual 2100 Level 1&2
- A-COVER SUB ASSY
- POWER KEY
- LCD METAL SHIELD
- DOMESHEET
- LCD HOUSING
- LCD
- RF GASKET
- C-COVER BLANK
- LABEL 32X21.0
- SILICONE PIC HOLDER
- B-COVER ASSY
- DF9 ENGINE MODULE HDF12
