EPSON Perfection 1670 Photo/Perfection 1270
2.2.2 Removal of Upper Housing
1.
Open the TPU Unit. (Refer to 2.2.1)
2.
Remove the two screws (CBB M3x6) that are securing the Upper Housing.
3.
Using the flat-blade screwdriver, disengage the four hooks that are securing the Upper
Housing.
DISASSEMBLY/ASSEMBLY

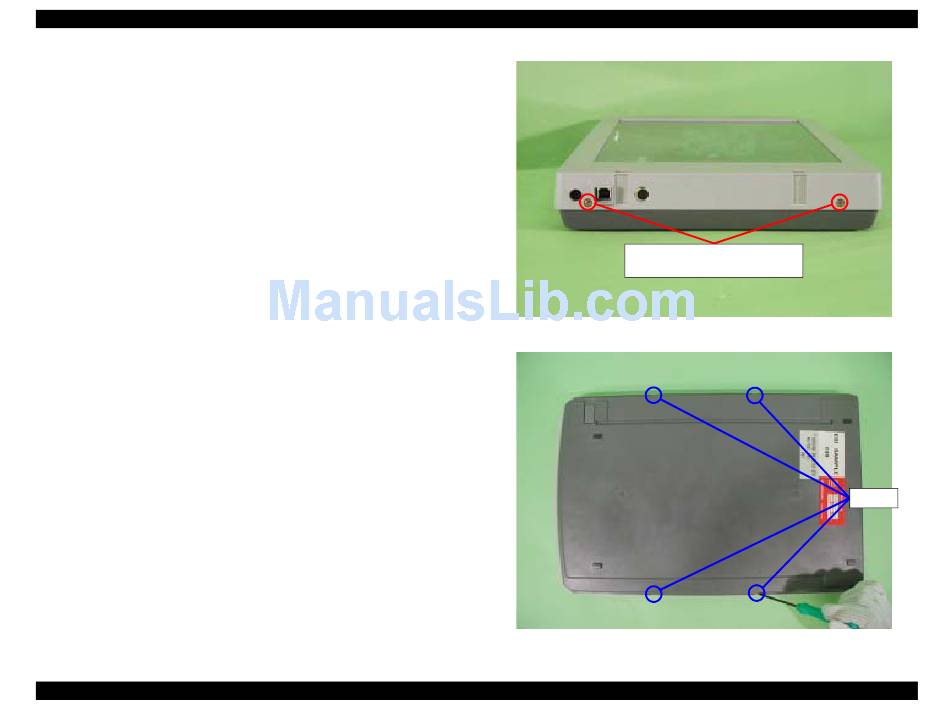

Figure 2-5. Screws That Are Securing Upper Housing
Figure 2-6. Hooks That Are Securing Upper Housing
Disassembly Procedure
CBB (M3x6)
Tightening torque 6-8kgfcm
Revision B
Hooks
16
