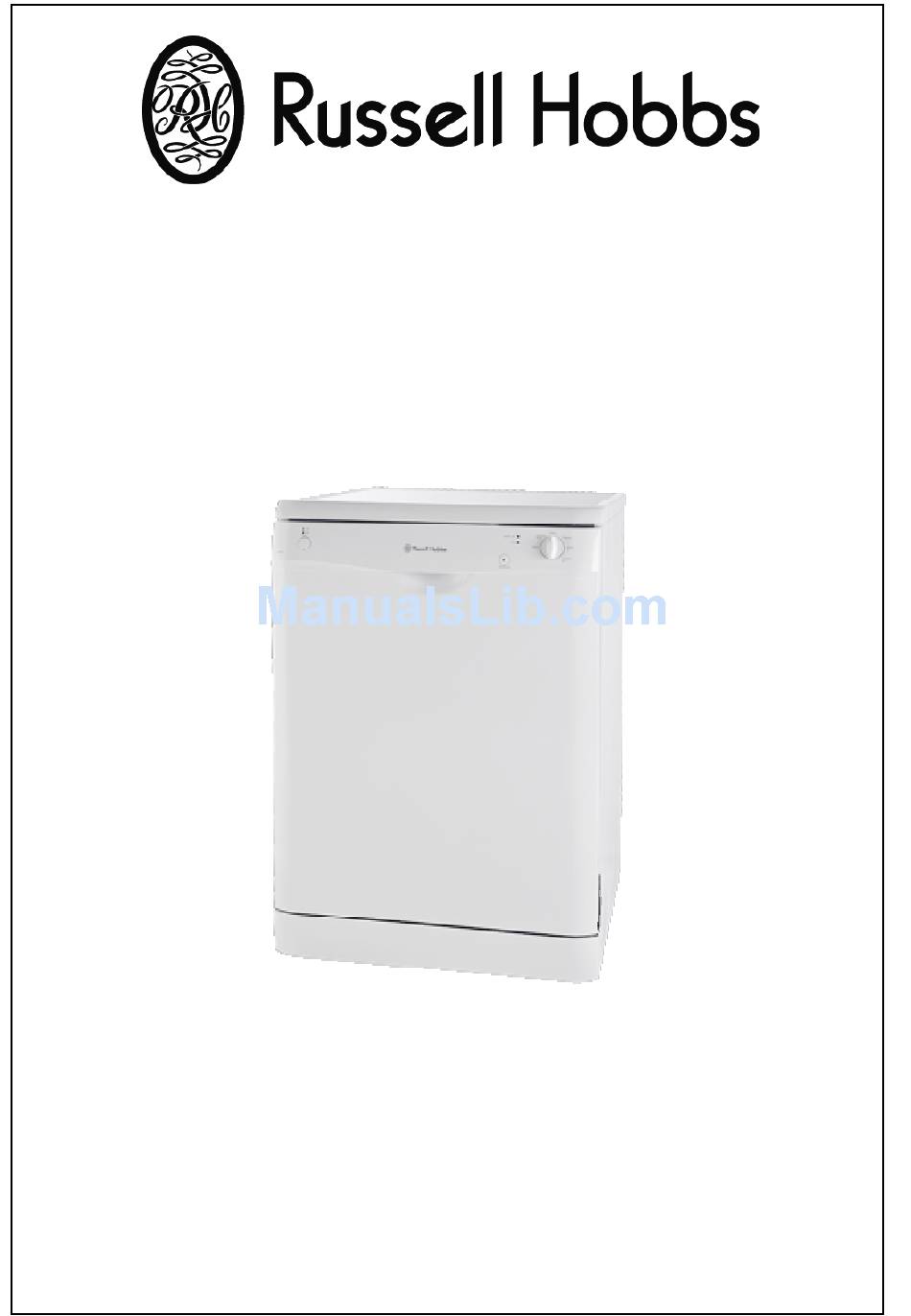

- Page 1 DISHWASHER INSTRUCTION MANUAL Model num ber: RHDW1 Please read these instructions carefully and keep them for future reference...
-
Page 2: Table Of Contents
CONTENTS Getting familiar with your machine ………………………………………………………. Technical specifications ……………………………………………………………… • Conformity with the standards and Test data ………………………………………... • Safety information and Recommendations………………………........ Recycling ..………………………................• Safety information ………………………………………………………………………. • Recommendations …...…………………………………………………………………. • Items not suitable for dishwashing ……………………………………………………. •... - Page 3 Loading your dishwasher .…………………………………………………………………….. Dish rack …………………………………………………………………………………… • Alternative basket loads …………………………………………………......• Standard loading and Test data …………………………………………………………... • Programme descriptions .……………………………………………………………………... Programme items …………………………………………………………………………... • Switching on the machine and selecting a programme……………....... Switching on the machine………………………………………………………………….. • Programme follow-up………………………………………………………………………..
- Page 4 Worktop Rating plate Upper basket with racks Control Panel Upper spray arm Detergent and rinse-aid dispenser Lower basket Cutlery basket Lower spray arm Salt dispenser Upper basket adjustable track latch Filters...
-
Page 5: Control Panel
GETTING FAMILIAR WITH YOUR MACHINE 1.) Power On/Off Button In the stop condition while wash led is On, Start/Pause led will blink. When the Power On/Off button is pressed, the lamp on the Start/Pause button starts lighting. 4.) Programme selector knob With the programme selector knob, you can select a suitable programme 2.) Door Handle for your dishes. -
Page 6: Technical Specifications
Technical specifications Capacity ………………………… 12 place settings Height …………………… ……… 845 mm Height (without worktop) ………. 815 mm Width …………………………….. 596 mm Depth ……………………………. 598 mm Net Weight ……………………... 46 kg Electricity input ……………..220-240 V, 50 Hz Total Power …………………….. 2200 W Heat ing Power ………………….. -
Page 7: Installing The Machine
Only original spare parts should be used with the machine. • Before installing, be sure that the machine is unplugged. • Check whether the indoor electrical fuse system is connected according to the regulations. • All electrical connections must match the values indicated on the rating plate. •... -
Page 8: Recommendations
Recommendations For energy and water saving, remove coarse residues on your dishes before placing the dishes • into the machine. Start your machine after having fully loaded it Use the pre-wash programme only whenever necessary. • Place such hollow items as bowls, glasses and pots into the machine in such a way that they will •... -
Page 9: Water Inlet Hose
Water connection Be sure that the indoor plumbing is suitable for installing a dishwasher. Also, we recommend that you fit a filter to the water pipe or tap so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing. -
Page 10: Electrical Connection
Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur. - Page 11 Adjust the machine feet according to the slope of the floor Fit your machine by pushing it undercounter without letting the hoses get crushed or bent Warning: After removal of worktop, the machine should be placed in such a closed place of which dimensions are shown at fig.
-
Page 12: Prior To Using The Machine
Prior to using the machine for the first time Check whether the electricity and supply water specifications match the values indicated by the • installation instructions for the machine. Remove all packaging materials inside the machine. • Set the water softener. •... -
Page 13: Testing Strip
In order to understand whether or not the amount of softener salt in your machine is sufficient, check the transparent section on the salt compartment cap. There is sufficient salt if the transparent section is green. Salt has to be added if the transparent section is not green. Testing strip The washing effectiveness of your machine depends on the softness of the tap water. - Page 14 Adjusting salt consumption Adjust the water softener according to how hard your tap water is. Move the programme selector knob to the 0 (Reset) position while your machine is not in operation. After resetting your machine, press the Start/Pause button and keep it pressed down.
-
Page 15: Detergent Usage
Detergent usage Use a detergent specifically designed for use in domestic dishwashers. You can find powder , gel , and tablet detergents in the market that have been designed for household dishwashers. Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children. -
Page 16: Filling With Rinse Aid And Making The Setting
If such detergents are in the form of tablets, never put them into the interior section or the • cutlery basket of the dishwasher. Always put the tablets into the detergent compartment in the detergent dispenser. They produce good results for certain types of usage only. If you are using this type of •... -
Page 17: Loading Your Dishwasher
The rinse aid level adjuster can be set to a position between 1 and 6. Factory setting for rinse aid is the position 3. You need to increase the degree of the adjuster if water stains form on your dishes after a wash, whereas you need to decrease the degree if a blue stain is left when wiped by hand.3 Warning: Use only those rinse aid materials which are allowed for use in the machine. - Page 18 Top basket height adjustment while it is full The Basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed.
-
Page 19: Alternative Basket Loads
Alternative basket loads Lower Basket Top basket Faulty loads... -
Page 20: Standard Loading And Test Data
Standard loading and test data Capacity: Upper and lower baskets: 12 place settings. The upper basket should be adjusted to high position Cups should be placed on to the dish rack pins. Detergent / Rinse aid 5+25 cm , in accordance with EN50242-DIN 44990 IEC 436 (international norms) / Rinse aid dosage adjustment: 4 Programme test Economic 50°... -
Page 21: Programme Descriptions
PROGRAMME DESCRIPTIONS Programme items Intensive Quick Programme Prewash Quick Economic 65° C names and No Heat 40° C 50° C 60°C temperatures soups, sauces, Type of food Pre-wash to coffee, milk, tea, coffee, milk, tea, soups, sauces, pasta, pasta, eggs, waste rinse and loosen cold meats,... -
Page 22: Switching On The Machine And Selecting A Programme
SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Switching on the machine Press the Power On/Off button. Select the program suiting your dishes via the Program Selection button. Start the program pressing the Power Start/Pause button. Once the Power On/Off key is pressed, the lamp Power Start/Pause is highlighted. -
Page 23: Changing A Programme With Resetting
Changing a programme with resetting If you would like to cancel a program while a washing program is resumed Turn the Program Press the Power Selection Button to Reset Start/Pause button. The program will have been cancelled once the drying lamp goes off and the end light is The machine will discharge the Press the Power... -
Page 24: Maintenance And Cleaning
MAINTENANCE AND CLEANING Cleaning the machine at regular intervals prolongs the machine’s service life. Oil and lime may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine. -
Page 25: Spray Arms
Spray arms Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left. -
Page 26: Failure Codes And What To Do In Case Of Failure
FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE ERROR CONTROL ERROR CODE DESCRIPTION Wash /Dry Start/Pause • Make sure the water input tap is totally open and that Inadequate water there is no water cut. supply • Close the water input tap, separate the water input hose from the tap and clean the filter at the connection end of the hose. - Page 27 If water is left inside the machine at the end of the programme The water drain hose is clogged or twisted. • The filters are clogged. • The programme is not finished yet. • If the machine stops during a wash operation Power failure.
-
Page 28: Practical And Useful Information
PRACTICAL AND USEFUL INFORMATION When not operating your machine Unplug the machine and then turn the water off. • Leave the door slightly ajar in order to prevent the formation of unpleasant smells. • Keep the machine interior clean. • Eliminating water droplets Wash the dishes with the intensive programme. - Page 29 For Customer Services & Warranty Information please call 0845 683 8717 Opening times: Monday - Friday 8am until 8pm Saturday & Sunday 10am until 4pm Customer Service Department Picktree Court Picktree Lane Chester-le-Street Co Durham DH3 3SY Revision 1 This symbol is known as the 'Crossed-out wheelie bin Symbol'. W hen this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
