3

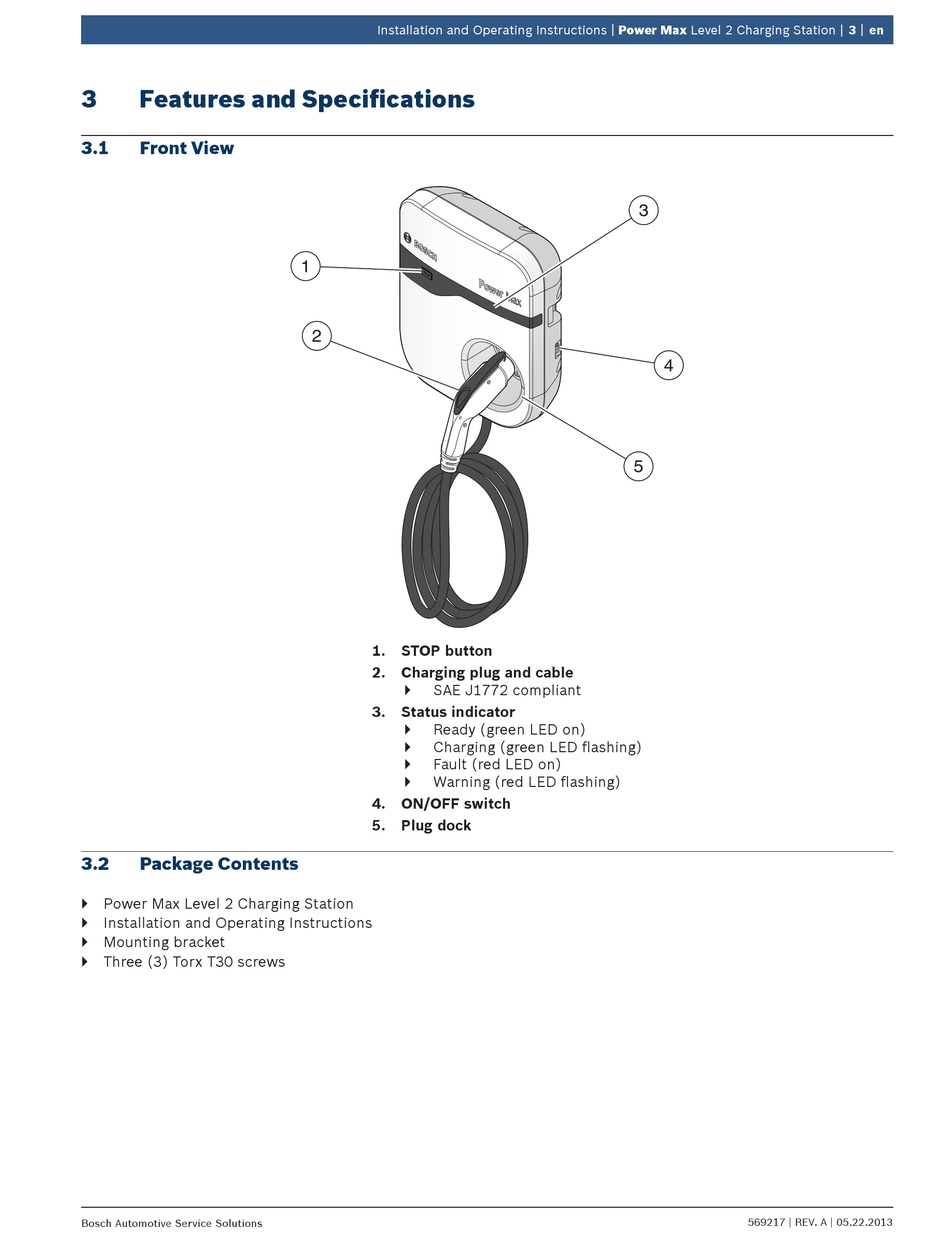

Features and Specifications
3.1
Front View
3.2
Package Contents
} Power Max Level 2 Charging Station
} Installation and Operating Instructions
} Mounting bracket
} Three (3) Torx T30 screws
Bosch Automotive Service Solutions
Installation and Operating Instructions | Power Max Level 2 Charging Station | 3 | en
1
2
1.
STOP button
2.
Charging plug and cable
SAE J1772 compliant
}
3.
Status indicator
Ready (green LED on)
}
}
Charging (green LED flashing)
Fault (red LED on)
}
}
Warning (red LED flashing)
4.
ON/OFF switch
5.
Plug dock
3
4
5
569217 | REV. A | 05.22.2013
