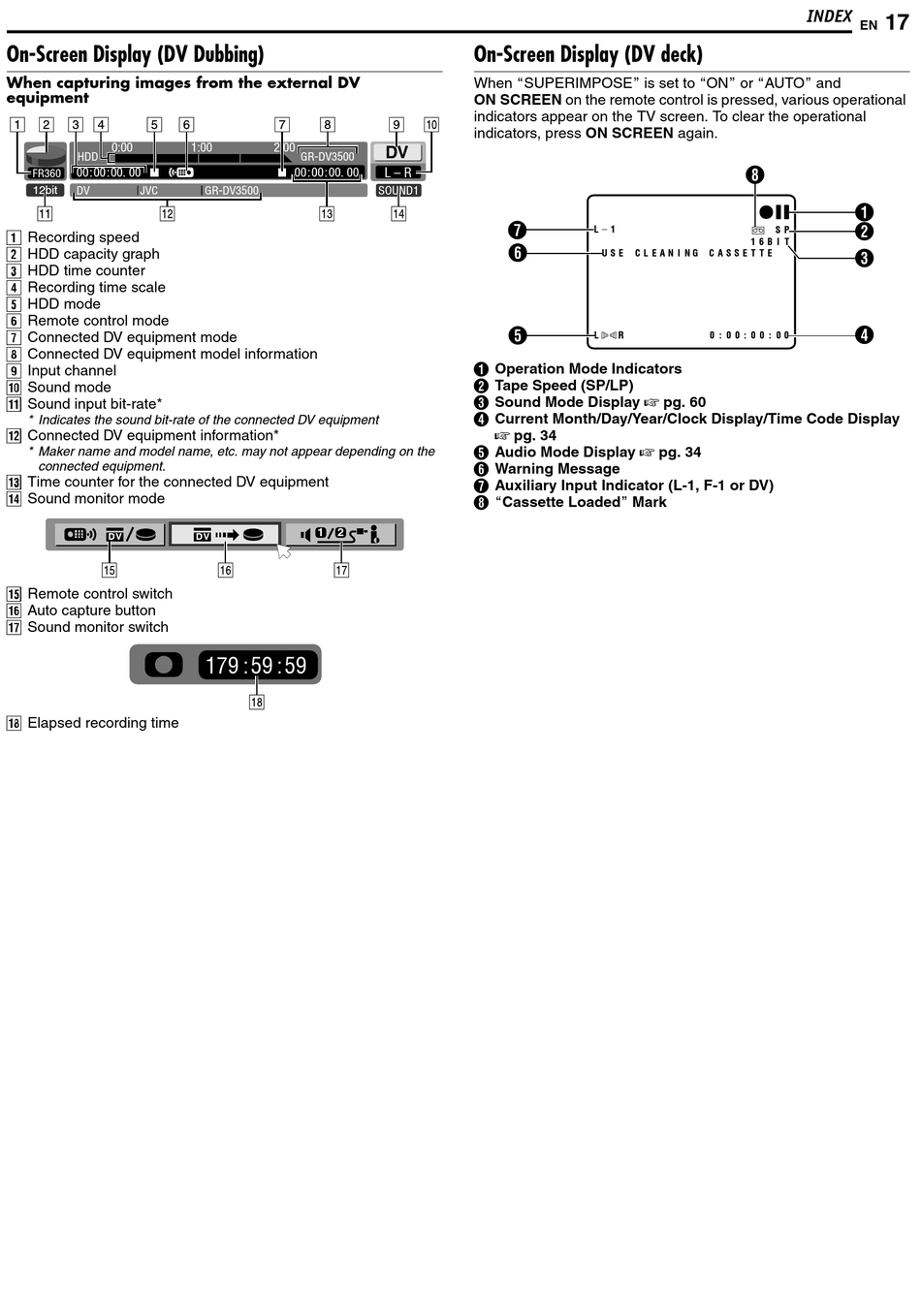

On-Screen Display (DV Dubbing)
When capturing images from the external DV
equipment
0:00
HDD
00:00:00. 00
FR360
DV JVC
12bit
A Recording speed
B HDD capacity graph
C HDD time counter
D Recording time scale
E HDD mode
F Remote control mode
G Connected DV equipment mode
H Connected DV equipment model information
I Input channel
J Sound mode
K Sound input bit-rate*
* Indicates the sound bit-rate of the connected DV equipment
L Connected DV equipment information*
* Maker name and model name, etc. may not appear depending on the
connected equipment.
M Time counter for the connected DV equipment
N Sound monitor mode
DV
O Remote control switch
P Auto capture button
Q Sound monitor switch
R Elapsed recording time
1:00 2:00
GR-DV3500
00:00:00. 00
GR-DV3500
1 2
DV
179 : 59 : 59
On-Screen Display (DV deck)
When ASUPERIMPOSEB is set to AONB or AAUTOB and
ON SCREEN on the remote control is pressed, various operational
indicators appear on the TV screen. To clear the operational
indicators, press ON SCREEN again.
DV
L – R
SOUND1
G
F
E
A Operation Mode Indicators
B Tape Speed (SP/LP)
C Sound Mode Display A pg. 60
D Current Month/Day/Year/Clock Display/Time Code Display
A pg. 34
E Audio Mode Display A pg. 34
F Warning Message
G Auxiliary Input Indicator (L-1, F-1 or DV)
H ACassette LoadedB Mark
H
RW
-
u
L 1
1 6
