General
Toshiba TIIOO PLUS is a portable personal computer which is
compatible with IBM PC and is situated at higher rank of
portable computer than Toshiba TllOO. It provides many powerful
functions in spite of its compact size. Hardware of the TllOO
PLUS, most. of IC chips are,-f-MOS type so that the power
consumption is very little
:;'0
V
W) and Gate Array IC chips are
applied so that it is very mpact and light weight ( ( : )
). J.
0
-rr
t;-
151/
The TllOO PLUS System has following two types.
1. F type - Only one Floppy Disk Drive.
2. F/F type - Two Floppy Disk Drives.
The TllOO PLUS is composed of System PCB, Keyboard, LCD, 3.5"
FDD (Floppy Disk Drive), Power Supply Unit and case. LCD can
display 640 X 200 pixels in graphic mode and 2000 characters in
character mode. The 3.5" FDD have capacity of 720KB.
The standerd memory size of the TllOO PLUS is 256.KS and it is
able to extend up to 640 KB with optional Memory Card.
Option unit to the TllOO PLUS System are one Memory Card (384
KB), Modem Card and Interface Card are capable to be installed
in the TllOO PLUS System Unit. The optional external unit
attached to the system unit are 5.25" External PDD 2D (Storage
capacity of 360 KB) and I/O Expansion Box are prepared.
The TllOO PLUS has connectors of Color/Monochrome CRT Display
port and RS232C port and Print r/FDD on the rear panel of the
TllOO PLUS.

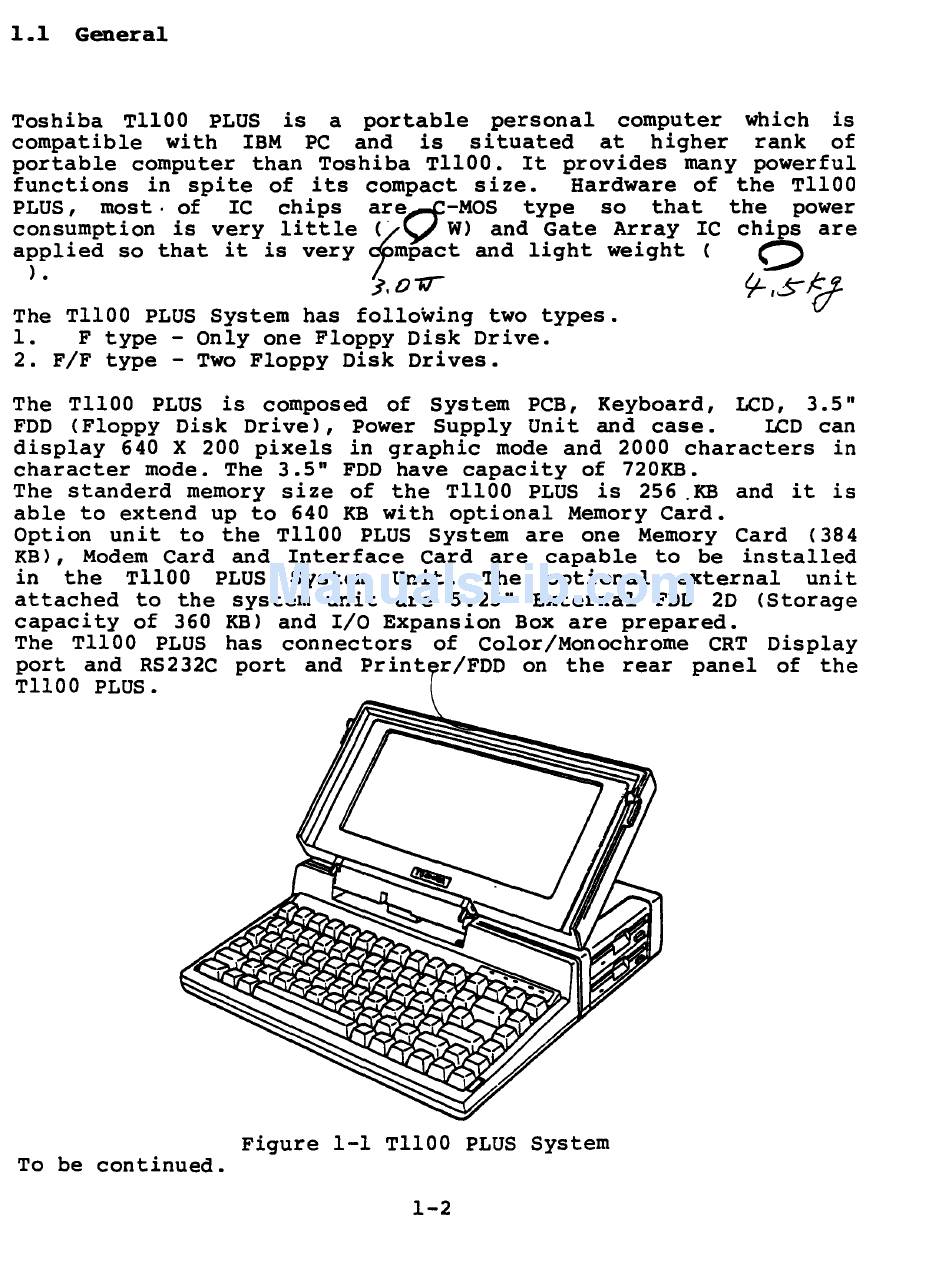

Figure 1-1 TllOO PLUS System
To be continued.
