Toshiba T1000SE User Manual

File No. 960-017
1.1 GENERAL
The Toshiba T1000SE is one of the lightest portable
computers available offering high technology, high speed,
excellent legibility, IBM PC XT compatibility and battery
machine.
The T1000SE is so small it defines a new class of portables
called notebook computers.
The T1000SE's operating system is used the MS-DOS version
3.30 and a powerful 80C86-2 microprocessor which has 16-bit
data width on the data bus line. The memory capacity is one
Mbyte as standard. The system can be added 1- or 2-Mbyte
memory card, thus the system can be had up to 3 Mbytes of
RAM.
The T1000SE stores version 3.30 of the MS-DOS
operating system and related programs in read only memory
(ROM). The internal 3.5-inch floppy disk drive (FDD)
supports 1.44-Mbyte double-sided, high-density, double-track
(2HD) and 720-Kbyte double-sided, double-density, double-
track (2DD) disks. The keyboard is compatible with IBM
enhanced keyboard which has 82 or 84 keys. A backlit liquid
crystal display (LCD) comes with your T1000SE. The screen
supports 640 by 400 pixels with color/graphics adapter (CGA)
compatible graphics and two color attribute combinations.
The power supply system is composed of AC adapter and
batteries.
The T1000SE provides connecting ports with the optional
devices at the rear panel of the system. There are one
parallel port, one serial port, and the expansion bus
connector.

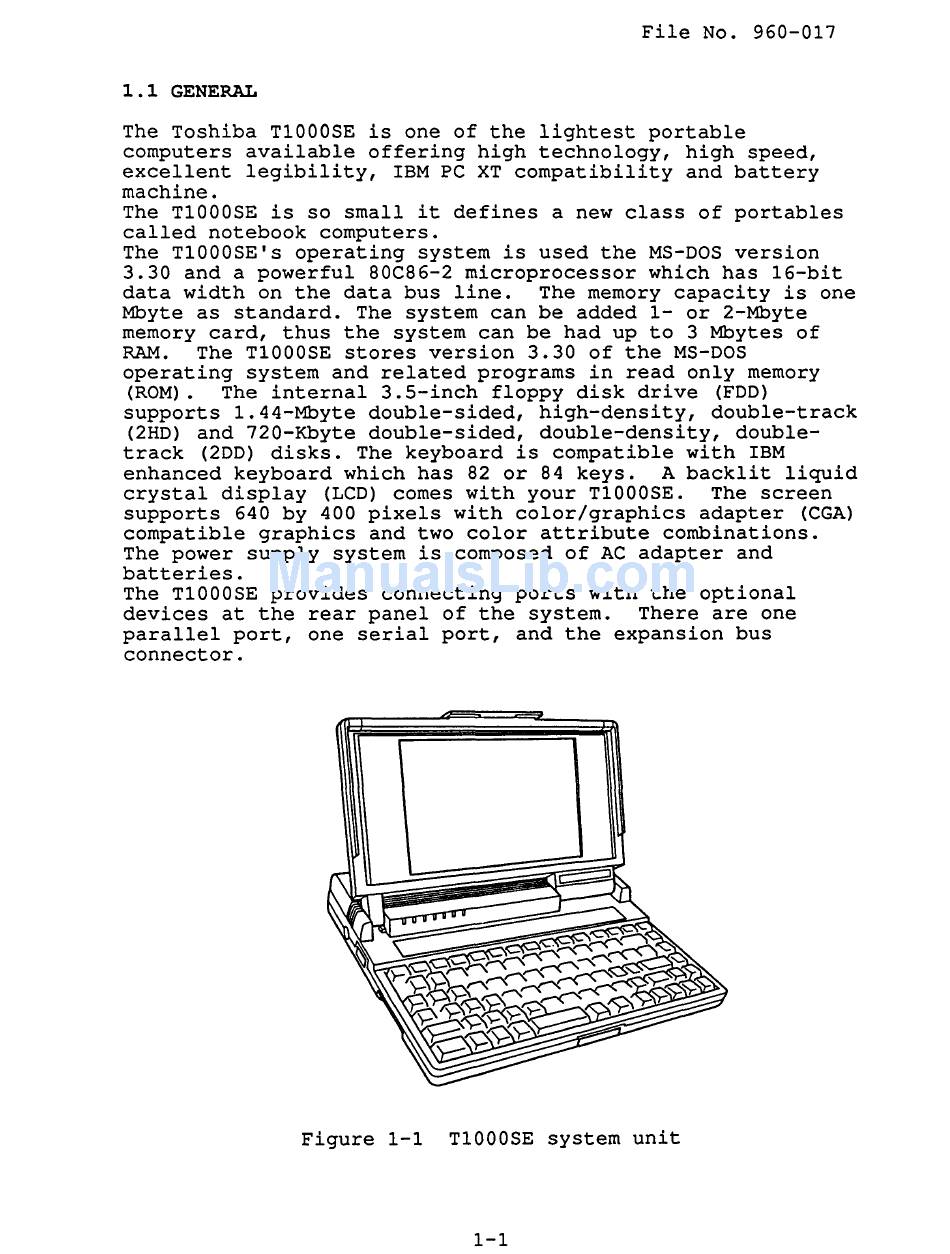

Figure 1-1 T1000SE system unit
1-1
