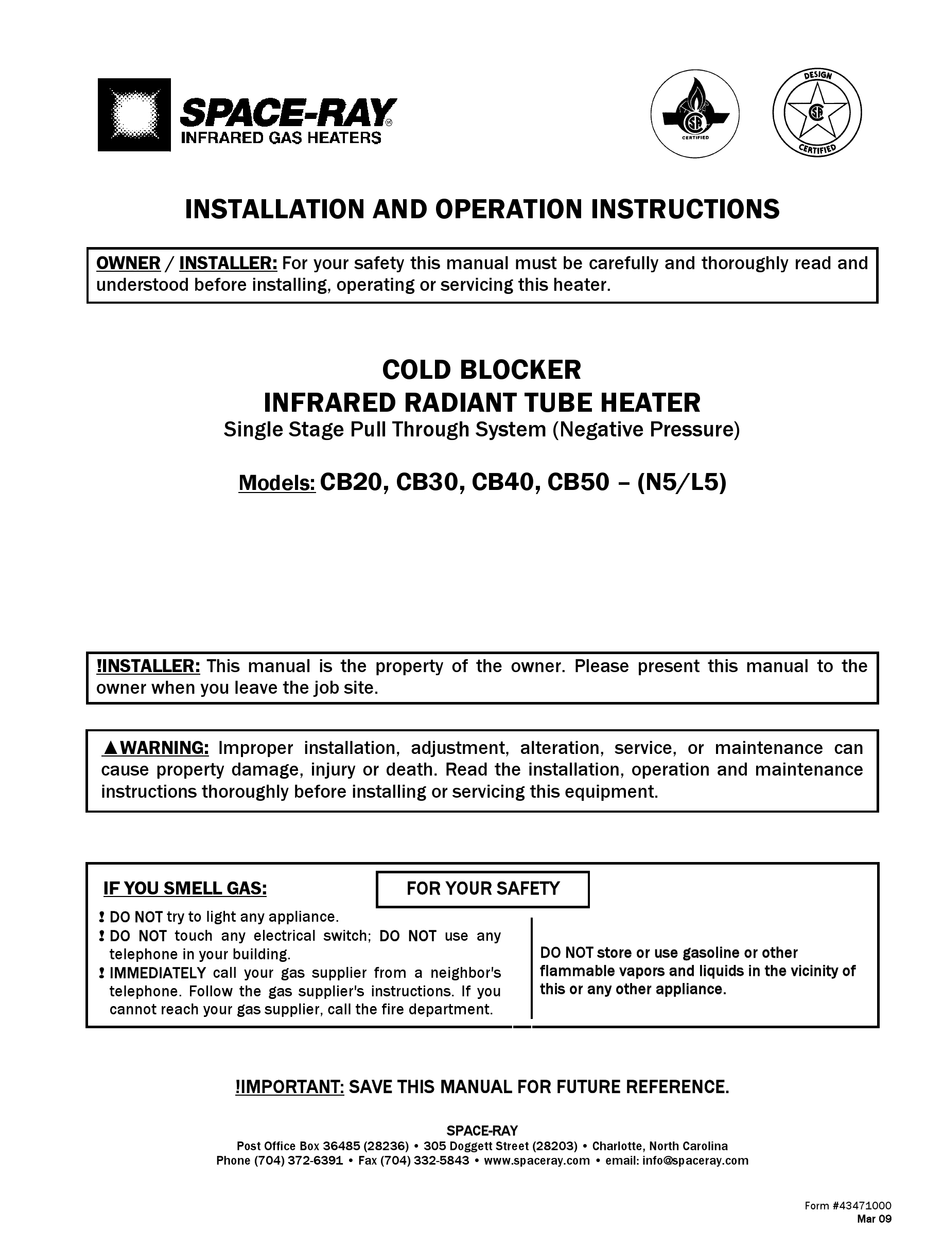

INSTALLATION AND OPERATION INSTRUCTIONS
OWNER / INSTALLER: For your safety this manual must be carefully and thoroughly read and
understood before installing, operating or servicing this heater.
INFRARED RADIANT TUBE HEATER
Single Stage Pull Through System (Negative Pressure)
Models:
!INSTALLER: This manual is the property of the owner. Please present this manual to the
owner when you leave the job site.
▲WARNING: Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury or death. Read the installation, operation and maintenance
instructions thoroughly before installing or servicing this equipment.
IF YOU SMELL GAS:
! DO NOT try to light any appliance.
! DO NOT touch any electrical switch; DO NOT use any
telephone in your building.
! IMMEDIATELY call your gas supplier from a neighbor's
telephone. Follow the gas supplier's instructions. If you
cannot reach your gas supplier, call the fire department.
!IMPORTANT: SAVE THIS MANUAL FOR FUTURE REFERENCE.
Post Office Box 36485 (28236) • 305 Doggett Street (28203) • Charlotte, North Carolina
Phone (704) 372-6391 • Fax (704) 332-5843 • www.spaceray.com • email: info@spaceray.com
COLD BLOCKER
CB20, CB30, CB40, CB50 – (N5/L5)
FOR YOUR SAFETY
SPACE-RAY
DO NOT store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
Form #43471000
Mar 09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CB20-N5 and is the answer not in the manual?

Questions and answers

Related Manuals for Space-Ray CB20-N5

Summary of Contents for Space-Ray CB20-N5

  • Page 1 !IMPORTANT: SAVE THIS MANUAL FOR FUTURE REFERENCE. SPACE-RAY Post Office Box 36485 (28236) • 305 Doggett Street (28203) • Charlotte, North Carolina Phone (704) 372-6391 • Fax (704) 332-5843 • www.spaceray.com • email: info@spaceray.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION DESCRIPTION PAGE 1.0) Safety ..............................2 2.0) Installer Responsibility ........................2 3.0) General Information........................... 2 4.0) Minimum Clearances to Combustibles................... 4 5.0) Specifications............................5 6.0) Packing List............................5 6.1) Accessory Packages .......................... 6 7.0) Dimensions – CB Series........................7 8.0) Heater Assembly Overview .......................

  • Page 3: Safety

    1.0) SAFETY This heater is a self-contained infrared radiant tube heater. Safety information required during installation and operation of this heater is provided in this manual and the labels on the product. The installation, service and maintenance of this heater must be performed by a contractor qualified in the installation and service of gas fired heating equipment.
  • Page 4 Although these heaters may be used in many applications other than space heating (e.g., process heating), Space-Ray will not recognize the warranty for any use other than space heating. This heater is for Indoor Installation and Covered Patio Installation only and can be used in either Vented or Unvented mode.

  • Page 5: Minimum Clearances To Combustibles

    NFPA54 requires that the installer must post signs that will “specify the maximum permissible stacking height to maintain the required clearances from the heater to combustibles.” Space-Ray recommends posting these signs adjacent to the heater thermostat or other suitable location that will provide enhanced visibility.

  • Page 6: Specifications

    * MOUNT HEATERS AS HIGH AS POSSIBLE. Minimums are shown as a guideline for human comfort and uniform energy distribution for complete building heating applications. Consult your Space-Ray representative for the particulars of your installation requirements. LOWER MOUNTING KIT required for installations between 6 ft. and 8 ft.

  • Page 7: Accessory Packages

    6.1) ACCESSORY PACKAGES A. Exhaust Hood Package, Part #42924000 Contains: Exhaust Hood Assembly, #42925540……QTY–1 #8-18 x ½ Self-Drilling Screws, #02189030……QTY–2 B. Lower Mounting Kit, Part #43515000 The Lower Mounting Kit is required when the heater is installed at mounting heights between 6 ft. and 8 ft. above a finished floor.

  • Page 8: Dimensions - Cb Series

    7.0) DIMENSIONS – CB SERIES Form #43471000 Mar 09...

  • Page 9: Heater Assembly Overview

    8.0) HEATER ASSEMBLY OVERVIEW Form #43471000 Mar 09...

  • Page 10: Typical Suspension Methods

    6. Heaters must not be supported by gas or electric supply lines and must be suspended from a permanent structure with adequate load capacity. Space-Ray recommends that the tube sections be suspended using chains with turnbuckles. This will allow slight adjustments after assembly and heater expansion/ contraction during operation.

  • Page 11: Heater Assembly

    10.0) HEATER ASSEMBLY During field assembly of the heater, the recommended procedure is as follows: 1. Install suspension (according to Section 7.0) using proper suspension method (see Section 9.0). Trapeze Method Individual Suspension Method 2. Lift the tube section and suspend it into place. When lifting, caution should be used to avoid damaging the assembly.
  • Page 12 3. Assembly the reflector onto the tube section. Leave 3” space between the tube flange and the reflector for later mounting of control box and draft inducer. 4. Place the flanges of the control end reflector flush with the end of the first reflector. Secure by sliding speed clips onto reflector edges.
  • Page 13 7. Slip the plastic vacuum air tube over the 1/4” O.D. aluminum tube end of the draft inducer and the air switch probe in the control box. The air tube should be shortened to prevent a downward sag which could allow condensation build-up in the tube.

  • Page 14: Gas Connections And Regulations

    ANGLE MOUNTED HEATERS ONLY 10. The heater can be mounted horizontally or up to an angle of 45º maximum from horizontal. When the heater is to be angle mounted adjacent to a sidewall, make sure the draft inducer assembly is on the lower side of the heater so that the control box access panel is easily accessible.
  • Page 15 10. After all gas connections have been made, make sure the heater and all gas outlets are turned off before the main gas supply is turned on slowly. Turn the gas supply pressure on and check for leaks. To check for leaks, check by one of the methods listed in Appendix D of the National Fuel Gas Code.

  • Page 16: Instructions For Pressure Test Gauge Connection

    12.0) INSTRUCTIONS FOR PRESSURE TEST GAUGE CONNECTION SUPPLY PRESSURE 1. The installer will provide a 1/8” N.P.T. tapped plug, accessible for test gauge connection immediately upstream of the gas supply connection to the heater. MANIFOLD PRESSURE – COMBINATION GAS VALVE IS FACTORY SET 1.

  • Page 17: Electrical Connections

    13.0) ELECTRICAL CONNECTIONS ELECTRIC SHOCK HAZARD 1. All electric wiring shall conform to the latest edition of the National Electrical Code (ANSI/NFPA No. 70), or the code legally authorized in the locality where the installation is made. 2. The unit must be electrically grounded in accordance with the National Electrical Code (ANSI/NFPA No. 70-latest edition).
  • Page 18 SCHEMATIC WIRING DIAGRAM — Direct Spark Ignition Moteur Témoin vert Transformateur 24ÊV Témoin rouge pressostat Bloc d'allumage électrode Robinet à gaz Témoin ambre FIELD CONNECTION AND THERMOSTAT WIRING DIAGRAMS A. LINE VOLTAGE (120V) THERMOSTAT CONNECTIONS – SINGLE HEATER PER THERMOSTAT B.
  • Page 19 C. LOW VOLTAGE (24V) THERMOSTAT CONNECTIONS – SINGLE HEATER PER THERMOSTAT Order 24V Relay Kit (Part No. 43274000) for Low Voltage (24V) thermostat connection. NOTES: 1. If any of the original wire as supplied with the appliance must be replaced, it must be replaced with wiring material having a temperature rating of at least 105ºC.

  • Page 20: Venting

    14.0) VENTING CARBON MONOXIDE HAZARD A. BASIC FLUE VENTING — Venting must comply with the latest edition of the National Fuel Gas Code (ANSI Z223.1-latest edition) or the authority having jurisdiction. Other venting references are in the equipment volume of the ASHRAE Handbook. Heat Maximum Fresh air Maximum vent length ft.
  • Page 21 metal pipe through an exterior combustible wall, refer to latest edition of the National Fuel Gas Code or the authority having jurisdiction. 10. A venting system shall terminate at least 3 ft. above any forced air inlet located within 10 ft. VENT TERMINATION (RESIDENTIAL INSTALLATIONS) 1.
  • Page 22 SINGLE HEATER VENTING (HORIZONTAL THROUGH SIDEWALL) This heater, when horizontally vented, must be installed with the approved venting system. When venting the heater horizontally through a combustible outside sidewall, the same requirements listed previously for venting Vertical Through The Roof apply except as follows: 1.
  • Page 23 • The connector length should be no more than 75% of the vertical portion of vent above the connector. • Where possible, use a Y-connector to the common vent. 2. Material for connectors should be constructed of galvanized sheet metal or other approved noncombustible corrosion resistant material as allowed by state or local codes.
  • Page 24 Multiple Heater Venting (Connections into a Manifold) VENT SIZING TABLE — Multiple Heater Venting Number of Heaters CB 20 4” 4” 4” 4” 5” CB 30 4” 4” 4” 5” 5” CB 40 4” 4” 5” 5” 6” CB 50 4”...

  • Page 25: Air For Combustion

    15.0) AIR FOR COMBUSTION If indoor combustion air is to be supplied for a tightly enclosed area, one square inch of free area opening shall be provided below the heater for each 1,000 Btu/hr per hour of heater input. When outside air is used, the opening below the heater shall be one square inch of free area for each 4,000 Btu/hr of heater input.
  • Page 26 Vertical Through the roof Horizontal Through Sidewall Form #43471000 Mar 09 -25-...

  • Page 27: Lighting And Shutdown Instructions

    16.0) LIGHTING AND SHUTDOWN INSTRUCTIONS 1. Turn on the gas and electrical supply. Rotate the gas valve knob counter-clockwise to the “ON” position. 2. Set the thermostat to call for heat. The blower motor will energize. 3. Ignition should occur after the 30-second air pre-purge. 4.

  • Page 28: Control Component Location

    18.0) CONTROL COMPONENT LOCATION NOTE: Access panel only opens to 90°. Form #43471000 Mar 09 -27-...

  • Page 29: Cleaning And Annual Maintenance

    19.0) CLEANING AND ANNUAL MAINTENANCE ELECTRIC SHOCK & EXPLOSION HAZARD This heater must be cleaned and serviced annually by a qualified contractor before the start of each heating season and at any time excessive accumulation of dust and dirt is observed. Maximum heating efficiency and clean combustion will be maintained by keeping the heater clean.

  • Page 30: Troubleshooting Guide

    20.0) TROUBLESHOOTING GUIDE Form #43471000 Mar 09 -29-...
  • Page 31 Form #43471000 -30- Mar 09...
  • Page 32 Form #43471000 Mar 09 -31-...

  • Page 33: Replacing Parts

    REPLACING PARTS ELECTRIC SHOCK & EXPLOSION HAZARD Only use genuine Space-Ray replacement parts. Parts are available from the factory for replacement by a licensed person. Refer to the Replacement Parts Guide in Section 23.0) for all replacement parts. 21.1) REMOVAL OF SPARK ELECTRODE 1.

  • Page 34: Removing Main Burner And Gas Valve

    21.2) REMOVING MAIN BURNER AND GAS VALVE The main burner can be inspected without removing the burner housing from the heat exchanger tube. 1. Disconnect electrical supply and gas connection at the restrainer nipple. 2. Open the access panel and disconnect the wires from gas valve. 3.

  • Page 35: Ignition System Checks

    21.4) IGNITION SYSTEM CHECKS TO CHECK IGNITION CABLE. a. Make sure that the ignition cable does not touch any metal surface. b. Make sure that connections to the stud terminal and the igniter/sensor are clean and tight. Make sure that the ignition cable provides good electrical continuity. TO CHECK IGNITION SYSTEM GROUNDING.

  • Page 36: Motor And Blower Wheel Check

    21.5) MOTOR AND BLOWER WHEEL CHECK If draft inducer motor fails to run: a. Check power supply to junction box. b. Check for loose or broken motor lead wire. Check to see that blower wheel turns freely and is not rubbing housing. Blower wheel may have worked loose from shaft and jammed against housing.

  • Page 37: Replacement Parts Guide

    23.0) REPLACEMENT PARTS GUIDE DRAFT INDUCER COMPONENTS Item No. Part No. Description Qty. 42737000 Draft Inducer Assembly 42928000 Motor Replacement Kit 03721000 Motor 30347000 Motor Spacer (4 per motor) 42740000 Motor Plate 03723000 Blower Wheel 43221000 Draft Inducer Gasket 42744000 Sensing Tube, Draft Inducer 42742000 Sensing Tube Bracket...
  • Page 38 43471000 Installation and Operation Instructions (not shown) 43344050 Label, Gas Connector Warning 43470000 Label, Clearance to Combustibles 42848030 Label, Nameplate 42013000 Label, “Space-Ray” Logo 43470030 Label, Warning (residential) 42834000 Label, 120V Caution 42875000 Label, Warning 43470040 Label, Operating Instructions 43470050...
  • Page 39 Schéma de circuit de connexion Circuit d'origine Moteur d'amorce Lampes témoins Connexions client d'aspiration Armoire de commande pressostat Robinet à gaz Écartement d'électrode 4,7Êmm Plaque à bornes ENGLISH FRANCAIS Haute tension Transformateur bobine primaire 120ÊV bobine secondaire 24ÊV Vers les autres Bloc d'allumage radiateurs Moteur...
  • Page 40 ALL ILLUSTRATIONS ARE INTENDED TO GIVE THE GENERAL IMPRESSION OF UNITS ONLY. OTHER COMBINATIONS OF 5 FT. AND 10 FT. SECTIONS, AND ONES WITH OR WITHOUT THE ELBOW PACKAGE ARE POSSIBLE. PLEASE CONSULT WITH YOUR SPACE-RAY SALES REPRESENTATIVE. WE RESERVE THE RIGHT TO ALTER ANY SPECIFICATION WITHOUT NOTICE. Form #43471000...
