Installation Instructions; Name Of Parts - Videocon DIGI NEMO Owner's Manual

ACCESSORIES
Cold water
Supply Hose

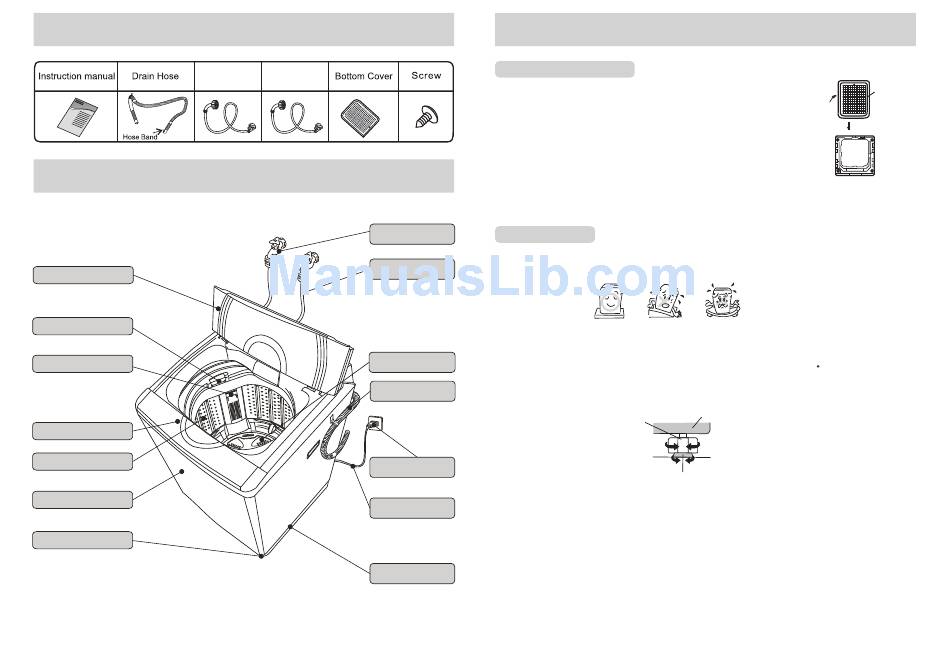

NAME OF PARTS

Washer Lid
Softener Dispenser
Lint Filter
Control Panel
Wash/Spin Tub
Frame
Adjustable Leg
3
Hot water
Supply Hose
Water Supply Hose
Faucet
(Close water supply
after operation)
Pulsator
Drain Hose
Power Plug
Power Cord
Leg

INSTALLATION INSTRUCTIONS

Installing the Bottom Cover
1.Unplug the Power Cord of the washer.
2.Gently lay down the front side of washer on a soft mat or
cushion.(Becareful not to dent the Frame.)
3.Insert the attached Bottom Cover into the hooks of Leg
by straightly pushing until it reaches into the front hooks.
4.Fasten the Bottom Cover with a screw.
5.Gently set the washer upright.
Location of Washer
1.Choose a dry location out of sunlight for the washer.
2.Install the washer on a stable and level surface.
Inclined floor
3.Adjust the Adjustable Leg of washer if necessary to make the washer level as shown
in the figure.
The maximum permissible inclination of the supporting surface is 2 .
?
Lock Nut
¢Û Tighten
¢Ú Down
Adjustable Leg
CAUTION:
? Do not block the ventilation openings on the bottom of washer by carpeting when the
washer is installed on a carpeted floor.
Screw
Front
Leg
Back
Unstable floor
Fundus
Loosen¢Ù
Up
Bottom
Cover
