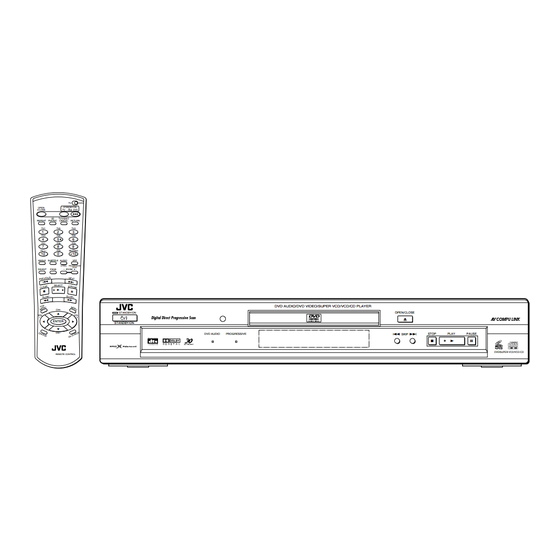

'9' $8',29,'(2 3/$<(5 ;96$%.;96$6/ STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO S.FREQ PROGRESSIVE SCAN DIGEST PAGE ZOOM SELECT STANDBY/ON ENTER STANDBY/ON ∞ DVD AUDIO PROGRESSIVE REMOTE CONTROL VIDEO CD XV-SA70 DVD AUDIO/DVD VIDEO/SUPER VCD/VCD/CD PLAYER OPEN/CLOSE ¢...
Page 2
öppnad och spärren är af funktion. Undgå udsæt- AVOID DIRECT EXPOSURE urkopplad. Betrakta ej telse for stråling TO BEAM. strålen. Front XV-SA70BK XV-SA72SL Stand height 5 cm or more Floor VARO: Avattaessa ja suo- jalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Älä katso...
Table of Contents Introduction Features...2 Supplied accessories...3 About this instruction manual ...4 Notes on handling ...5 Preliminary knowledge Names of parts and controls ...6 Front panel...6 Display window...7 Rear panel...7 Remote control unit ...8 Operational Principles...10 On-screen displays...10 To prevent the monitor from burning out [SCREEN SAVER] ...12 On-screen guide icons ...13 How to use numeric buttons...13...
Introduction Features This unit is a compatible player for DVD VIDEO, DVD AUDIO, Audio CD, Video CD and SVCD discs. Picture features 7 7 7 7 Progressive Scan system (NTSC only) Supports the Progressive scan for NTSC system, as well as the conventional (current) Interlace scan system.
Introduction About this instruction manual • This instruction manual is written in the following manner. • This unit can playback CD-R/RW discs recorded by the MP3 format (we refer to those discs as MP3 discs in this manual). • Regarding operations for MP3 discs, see “MP3 disc playback” on and after page 51. The other sections of this manual basically do not refer to MP3 disc playback.
Notes on handling Important cautions Installation of the unit • Select a place which is level, dry and neither too hot nor too cold (between 5 C and 35 • Leave sufficient distance between the unit and the TV. • Do not use the player in a place subject to vibrations. Power cord •...
Preliminary knowledge Names of parts and controls Refer to the corresponding pages indicated in () for details. Front panel 1 STANDBY/ON indicator 2 STANDBY/ON button STANDBY/ON STANDBY/ON DVD AUDIO 6 DVD AUDIO indicator 1 STANDBY/ON indicator Lights in red when the power cord is connected and the unit is on standby.
Otherwise, the changed setting will not be effective. 8 AV COMPU LINK jacks (64) Connects with other JVC equipment supporting the AV Compulink function to facilitate integrated operations. AC IN connector (21) Connects to the wall outlet using the supplied AC power cord.
Preliminary knowledge Remote control unit 1 OPEN/CLOSE button 2 REPEAT button 3 3D PHONIC button 4 Numeric buttons 5 ANGLE button 6 SUBTITLE button 7 DIGEST button 8 PAGE button 9 4/PREVIOUS button 0 7/CLEAR button - 1/SLOW– button = TOP MENU button ~ CURSOR(5 Up, ∞...
Page 11
8 PAGE button (48) Turns the page of B.S.P . (still picture) for a DVD AUDIO disc. 9 4/PREVIOUS button (27, 32, 51) Skips back a chapter, title, group or track. Also used for the page selection of a menu screen (for DVD VIDEO/DVD AUDIO/Video CD/SVCD).
Preliminary knowledge Operational Principles On-screen displays You can set preferences and perform advanced playback functions via various on-screen displays, including the Opening, Preference, Speaker setting, Parental Lock and Control displays. Basic operations of on-screen displays using the CURSOR 5/∞/2/3 buttons •...
Page 13
PREFERENCE (1, 2) and SPK.SETTING (speaker setting) displays (see page 54) You can set preferences via these displays. • To bring up the PREFERENCE 1/PREFERENCE 2/ SPK.SETTING display When a DVD VIDEO disc is set and stopped or no disc is inserted, press CHOICE. To select the display, move to the desired tab using the CURSOR 2/3 buttons.
Preliminary knowledge CD CONTROL display You can select and set various functions for Audio CD playback from this display. • To bring up the CD CONTROL display Whenever an Audio CD is inserted, press ON SCREEN. VCD CONTROL display (for Video CD/ SVCD) When a Video CD or SVCD disc is stopped, a display similar to the CD CONTROL display appears.
On-screen guide icons During DVD VIDEO playback, you may see icons displayed over the picture. These have the following meanings. : Displayed at the beginning of a scene recorded from multiple angles. (See page 41.) : Displayed at the beginning of a scene recorded with multiple audio languages. (See page 44.) : Displayed at the beginning of a scene recorded with multiple subtitle languages.
Preliminary knowledge About discs Playable disc types Playable and non-playable disc types are as follows: Playable discs DVD AUDIO DVD VIDEO V I D E O A U D I O The DVD Logo is a trademark. • CD-R and CD-RW discs recorded with the Audio CD or MP3 format can be played back, though some may not be played back because of the disc characteristics or recording condition.
Preliminary knowledge Disc structure A DVD VIDEO disc is comprised of “titles” and each title may be divided into some “chapters” . For example, if a DVD VIDEO disc contains some movies, each movie may have its own title number, and each movie may be divided into some chapters.
Getting started Connections *In the following description, “TV” may be substituted with “monitor” or “projector.” *Before using the unit, you have to connect the unit to a TV and/or amplifier. Before making any connections • • • • Do not connect the AC power cord until all other connections have been made. Do not connect the AC power cord until all other connections have been made.
To connect to a TV with the component video input jacks You can enjoy high picture quality by connecting the unit’s COMPONENT VIDEO OUT jacks to the COMPONENT VIDEO IN jacks of your TV with the video cables. Blue Green The unit SUBWOOFER CENTER...
Getting started NOTES • Connect “Y” to “Y” , “P ” to “P • When the component video input jacks of the TV is of the BNC type, use an adapter to convert a pin jack to a BNC jack (optional).
To connect to an amplifier/receiver equipped with 5.1-channel inputs The unit supports the linear PCM multichannel format of DVD AUDIO and can feed multichannel audio output signals from the 6 analog AUDIO OUT jacks. It is also equipped with the DTS and Dolby Digital and MPEG Multichannel decoders. So you can enjoy any type of the high quality surround sounds by connecting the unit to an amplifier/receiver equipped with the 5.1-channel inputs.
Getting started To connect to audio equipment with a digital input You can enhance the sound quality by connecting either of the unit's DIGITAL OUT jacks to the digital input of an amplifier, MD, etc. by using an optional digital cable (OPTICAL or COAXIAL). The digital audio signal from a disc is directly transferred.
To connect the power cord When all the audio/video connections have been made, insert the smaller plug of the supplied AC power cord to the unit’s AC IN connector, then insert the other end to the wall outlet. Make sure that plugs are inserted firmly. The STANDBY/ON indicator lights and setup is completed.
Getting started Precautions for the safe use of batteries Observe the following precautions for the safe use of batteries. If they are used improperly their life will be shortened, they may burst or their contents may leak. Precaution • Remove the batteries from the remote control if it is not going to be used for a long period of time. •...
PAGE ZOOM SELECT button ENTER ∞ REMOTE CONTROL No. Manufacturer GRADIENTE SANYO PHILCO/DAEWOO LG (GOLDSTAR) GRUNDIG NEC/GRADIENTE PHILCO BEIJING/NOBLEX JVC (ONWA) JVC (ONWA) JVC (ONWA) THOMSON FERGUSON Getting started No. Manufacturer MIVAR FINLUX NOKIA FUNAI SAMSUNG SAMSUNG/PEONY/CHANGHONG SAMSUNG AIWA DAEWOO...
Page 26
CH - NOTES • The remote control unit is initially set operating a JVC TV. • If there is more than one code listed for the manufacturer of your TV, try them one by one until you succeed. Turns the TV on or off.
Basic operations In the following description, the buttons on the remote control unit are mainly used, however, you may use the corresponding buttons on the front panel of the unit if available. Turning on/off the unit Press DVD STANDBY/ON on the remote control unit or press STANDBY/ON STANDBY/ON OPEN /CLOSE...
Basic operations Basic playback Note that this section describes basic operations for playback of DVD AUDIO, DVD VIDEO, Audio CD, Video CD and SVCD discs. For MP3 disc playback, see the independent chapter on and after page 51. STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT...
To advance or reverse playback rapidly while monitoring ¶ During playback Method 1 (from the remote control unit only) Press 1 or ¡. Each press of 1 or ¡ increases the playback speed. You can select the speed among 2x, 5x, 20x and 60x the normal speed.
Basic operations Resuming playback The unit can memorize the position on a disc where you interrupt playback, and resume playback from that position later. To memorize the interrupted position ¶ During playback Press 7, or press DVD STANDBY/ON panel. The unit memorizes the interrupted position. •...
Advanced operations • Note that this section describes operations for playback of DVD VIDEO, DVD AUDIO, Audio CD, Video CD and SVCD discs. For MP3 disc playback, see the independent chapter on and after page 51. But “Checking the sampling frequency”...
Advanced operations Playing from a specific position on a disc You can play a disc from the selected track, title or chapter, or from the specified time. To locate a desired scene from the DVD menu DVD discs generally have their own menus which show the disc contents.
The unit starts playback of the selected item. You can return to the menu by pressing the RETURN button. When “NEXT” or “PREVIOUS” appears on the TV screen, the unit generally works as follows: • Pressing ¢ advances to the next page. •...
Advanced operations To locate a desired selection using 4 or ¢ You can locate the beginning of a chapter (for DVD VIDEO) or track (for DVD AUDIO/Audio CD/Video CD/SVCD) by using the 4 or ¢. STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN...
• The “10” and “+10” buttons are not used in this function. NOTES • You can also locate a desired chapter directly by specifying the chapter or track number using the numeric buttons during playback (except when a menu is shown). See page 31. •...
Advanced operations • When you make a mistake Move the cursor to the incorrect value, then press the correct button to re-select the value. *2 72 B B Press CURSOR 2. *2 72 B B B Press “4”...
Special picture playback The unit provides special picture playback functions including Frame-by-frame, Strobe, Slow-motion and Zoom. To advance a still picture frame-by-frame ANGLE SUBTITLE AUDIO S.FREQ PROGRESSIVE SCAN DIGEST PAGE ZOOM SELECT ENTER ∞ REMOTE CONTROL ¶ While paused (still) Press 8.
Advanced operations To zoom in/out [ZOOM] STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO S.FREQ PROGRESSIVE SCAN DIGEST PAGE ZOOM SELECT ENTER ∞ REMOTE CONTROL ¶ During playback or while paused Press ZOOM + or –. The unit zooms in by pressing ZOOM + or zooms out by pressing ZOOM –.
Changing the playback order You can play tracks on a DVD AUDIO, Audio CD, Video CD or SVCD in the desired order or in random order. To playback in the desired order [PROGRAM] By programming tracks, you can play up to 24 tracks in any order.
Advanced operations • To quit program playback Press ENTER when points [PROGRAM]. [PROGRAM] returns to its original color. (When playing back a Video CD/SVCD, you have to press 7 and then press ON SCREEN to bring up the on-screen display.) •...
Repeat playback You can repeat playback of the current title or chapter (for DVD VIDEO), current group or track (for DVD AUDIO), or current or all tracks. You can also repeat playback of a desired part. To repeat the current selection or all tracks [REPEAT] Method 1 STANDBY/ON...
Advanced operations • Audio CD/Video CD/SVCD (for Audio CD) (for Video CD) TRACK 8 TIME 0 : 58 EACH TIME SELECT REPEAT ALL REPEAT A-B REPEAT TIME SEARCH PROGRAM RANDOM PRESS ENTER Selected repeat mode (for SVCD) AUDIO SUBTITLE REPEAT ALL TRK.
Press ENTER at the end of the part you want to repeat (point B). The unit locates “A” and starts repeat playback between “A” and “B.” • Screen example (for DVD VIDEO) (for DVD AUDIO) TRACK 8 TIME 0 : 58 EACH TIME SELECT REPEAT...
Advanced operations NOTES • The Angle selection display will automatically disappear if you do not change the angle for several seconds. • To turn off the Angle selection display manually, press ENTER. • When appears on the TV screen The current scene is not recorded from multiple angles. From on-screen display STANDBY/ON OPEN...
Changing the language and sound Some DVD VIDEO discs support more than one subtitle language and/or audio language/sound, while some DVD AUDIO discs support more than one audio language/ sound. You can select the desired one from them. Similarly, you can select audio channel(s) of a Video CD/ SVCD disc.
Advanced operations • For SVCD An SVCD disc can have up to four subtitles. Pressing CURSOR 2/3 cycles among those channels as follows regardless of whether the subtitles are recorded or not. –/ 4 (off) 1 / 4 2 / 4 3 / 4 4 / 4 If no subtitle is recorded on the selected channel,...
• For DVD AUDIO/DVD VIDEO Each time you press CURSOR 2/3 or AUDIO - S.FREQ, the audio language or sound changes. Total number Example: 1/3 ENGLISH ANGLE 1 / 3 AUDIO 2 / 3 SUBTITLE 1 / 3 2/3 FRENCH REPEAT A-B REPEAT TITLE...
Advanced operations • BRIGHTNESS Controls the brightness of the screen. • CONTRAST Controls the contrast of the screen. • COLOR Controls the color depth of the screen. • TINT Controls the tint of the screen. • SHARPNESS Controls the sharpness of the screen. •...
Press CURSOR 2/3 to adjust the effect level. You can adjust the effect level in 5 steps. 3D PHONIC THEATER Effect level Toward L: Reduces the effect. Toward H: Enhances the effect. • To turn off the 3D PHONIC screen, press ENTER. The 3D PHONIC screen disappears if no operations are made for more than 10 seconds.
Advanced operations To select a still picture on a DVD AUDIO disc [PAGE] Most DVD AUDIO discs include still pictures, which usually appear in turn automatically during playback according to the playback sequence. However, there are other page(s) of the current still picture and you can change the picture (turn the page) manually.
To playback a bonus group of a DVD AUDIO disc Some DVD AUDIO discs contain a special group called “bonus group” whose contents are not opened to the public. The bonus group is always assigned to the last group of a disc (for example, if a disc contains four groups including a bonus group, “group 4”...
Advanced operations Checking the sampling frequency You can check the sampling frequency of digital audio during playback. STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO S.FREQ PROGRESSIVE SCAN DIGEST PAGE ZOOM SELECT ENTER ∞ REMOTE CONTROL ¶...
MP3 disc playback This unit can playback CD-R/RW discs recorded by the MP3 format (we refer to those discs as MP3 discs in this manual). Though available functions with MP3 discs are limited, operations for the available functions are similar to those with Audio CD discs.
MP3 disc playback Specifying the desired Group and Track When loading an MP3 disc, after the disc contents are read, the MP3 CONTROL display automatically appears on the TV screen. You can specify the desired Group and Track for playback via this display. M P 3 C O N T R O L G R O U P : You can specify the desired Group/Track from the display...
Repeat playback You can repeat playback of the current track or group. STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN TV -/-- MUTING ANGLE SUBTITLE AUDIO S.FREQ PROGRESSIVE SCAN DIGEST PAGE ZOOM SELECT ENTER ∞ REMOTE CONTROL ¶ During playback or while stopped Press REPEAT.
Initial settings Selecting preferences You can set various preferences for playback via two preference displays. How to set preferences You can bring up a preference display at any time except the unit is turned off. STANDBY/ON OPEN /CLOSE TV/VIDEO REPEAT PHONIC CANCEL RETURN...
AUDIO LANGUAGE You can select the default audio language to be played if it is contained on a DVD VIDEO/DVD AUDIO disc. Each time you press CURSOR 3, the language PREFERENCE1 setting changes in the MENU LANGUAGE AUDIO LANGUAGE following order: SUBTITLE ON SCREEN LANGUAGE ON SCREEN GUIDE...
Initial settings MONITOR TYPE You can select the monitor type to match your TV when you playback DVD VIDEO discs recorded for wide screen televisions. • 4:3 LB. (Letter Box Conversion) Should be selected when you connect a normal TV to the unit.
Audio and system preference PREFERENCE 2 display handles preferences “ ” related to audio and system. DIGITAL AUDIO OUTPUT To connect the unit’s digital output to an external device PREFERENCE1 equipped with a digital DIGITAL AUDIO OUTPUT DOWN MIX COMPRESSION input, this item must be set DTS BASS MANAGEMENT AUTO STANDBY...
Initial settings DOWN MIX To playback a DVD VIDEO disc recorded with surround multichannel audio correctly, the DOWN MIX setting must be properly made according to your audio system. Note that this setting affects only the output signal from the ANALOG AUDIO output jacks when playing back a DVD VIDEO disc recorded with surround multichannel audio.
SCREEN SAVER A television monitor screen may be burned out if a static picture is displayed for a long time. To prevent this, the unit automatically activates the screen saver function if a static picture, such as an on-screen display or menu, is displayed for over 5 minutes.
Page 62
Initial settings Select the size using CURSOR 2/3. • Large: Large speaker(s) which can fully reproduce the low-frequency range. • Small: Small speaker(s) which can not fully reproduce the low-frequency range. • None: No speaker(s) connected. If you set the front speakers to “Small” , you cannot set the other speakers to “Large”...
Test tone (available only while setting LEVEL or DELAY) You can check the level setting by monitoring the PREFERENCE1 test tone. PRESS Select [TEST TONE] using CURSOR 5/∞, then press ENTER. The color of “TEST TONE” changes. Select the desired speaker(s) using CURSOR 5/∞.
Initial settings While points [Set Level], use CURSOR 2/3 to select the Parental Lock level. PARENTAL LOCK Country Code LEVEL 1 Set Level – – – – PASSWORD EXIT PRESS ENTER Each time you press CURSOR 2/3, the parental level changes as follows: NONE LEVEL 1 •...
Enter the password using the numeric buttons (0 to 9) and press ENTER. moves to [EXIT]. The password entered in the above step becomes the new password. If you do not change the password, enter the same password as in the step 2. Even if you want to change only the country code and/or parental level, do not forget to enter the password after changing the country code and/or...
• When connecting to VIDEO-2 input terminal of the television: DVD3 • If you connect a DVD player to a television and VCR via AV COMPU LINK, set the VCR’s Remote Control Code and DVD player’s AV COMPU LINK setting as follows.
S-VIDEO connection. Notes for connection • If you connect a DVD player to a receiver via AV COMPU LINK in a system including a Dolby digital decoder, some functions may not be performed automatically. • The AV COMPU LINK terminal on some televisions indicates “II.” Do not connect the terminal indicating “II” with the AV COMPU LINK terminal on a receiver.
Additional information Care and handling of discs How to handle discs When handling a disc, do not touch the surface of the disc. Since discs are made of plastic, they are easily damaged. If a disc gets dirty, dusty, scratched or warped, the images and sound will not be picked up correctly, and such a disc may cause the player to malfunction.
Troubleshooting What appears to be a malfunction may not always be serious. Please go through the following list before requesting service. Symptom Power does not come on. Remote control does not work. The TV/VIDEO - CANCEL, CURSOR or numeric buttons do not work. No picture is displayed on the monitor.
Additional information Specifications General Readable discs: DVD AUDIO, DVD VIDEO, Audio CD, Video CD, SVCD Video format: NTSC, (525i/525p)/PAL selectable Other Power requirements: AC 110V - 240V Power consumption: 17 W (POWER ON), 3.0 W (STANDBY mode) Mass: 2.6 kg Dimensions (W x H x D): 435 mm x 73 mm x 267.5 mm Video outputs...
Appendix A: Table of languages and their abbreviations When you select the subtitle language or sound, the languages shown below are displayed as abbreviations. To select the desired language, select the abbreviation corresponding the language you want to. Afar Abkhazian Afrikaans Ameharic Arabic...
Additional information Appendix B: Country code list for Parental Lock This list is used for the Parental Lock operation. For details, see page 61. Andorra United Arab Emirates Afghanistan Antigua and Barbuda Anguilla Albania AM Armenia Netherlands Antilles Angola Antarctica Argentina American Samoa Austria...
Page 73
