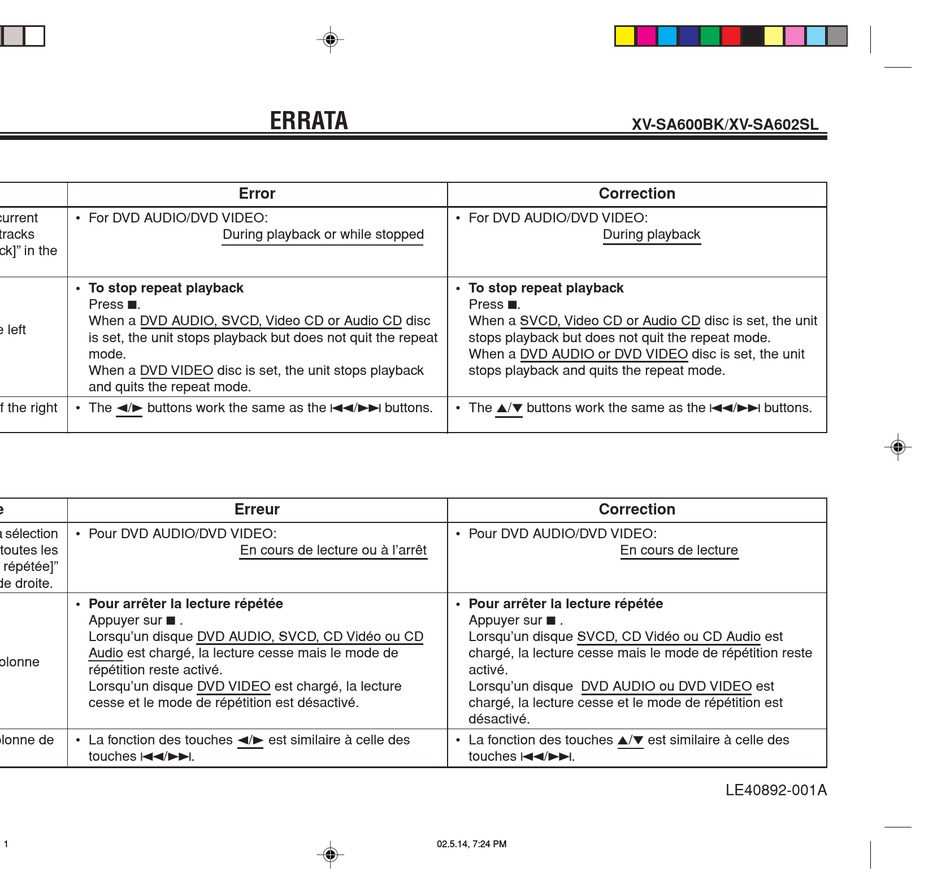

ERRATA
Error
• For DVD AUDIO/DVD VIDEO:
During playback or while stopped
• To stop repeat playback
Press 7.
When a DVD AUDIO, SVCD, Video CD or Audio CD disc
is set, the unit stops playback but does not quit the repeat
mode.
When a DVD VIDEO disc is set, the unit stops playback
and quits the repeat mode.
• The 2/3 buttons work the same as the 4/¢ buttons.
Erreur
• Pour DVD AUDIO/DVD VIDEO:
En cours de lecture ou à l'arrêt
• Pour arrêter la lecture répétée
Appuyer sur 7 .
Lorsqu'un disque DVD AUDIO, SVCD, CD Vidéo ou CD
Audio est chargé, la lecture cesse mais le mode de
répétition reste activé.
Lorsqu'un disque DVD VIDEO est chargé, la lecture
cesse et le mode de répétition est désactivé.
• La fonction des touches 2/3 est similaire à celle des
touches 4/¢.
XV-SA600BK/XV-SA602SL
Correction
• For DVD AUDIO/DVD VIDEO:
During playback
• To stop repeat playback
Press 7.
When a SVCD, Video CD or Audio CD disc is set, the unit
stops playback but does not quit the repeat mode.
When a DVD AUDIO or DVD VIDEO disc is set, the unit
stops playback and quits the repeat mode.
• The 5/∞ buttons work the same as the 4/¢ buttons.
Correction
• Pour DVD AUDIO/DVD VIDEO:
En cours de lecture
• Pour arrêter la lecture répétée
Appuyer sur 7 .
Lorsqu'un disque SVCD, CD Vidéo ou CD Audio est
chargé, la lecture cesse mais le mode de répétition reste
activé.
Lorsqu'un disque DVD AUDIO ou DVD VIDEO est
chargé, la lecture cesse et le mode de répétition est
désactivé.
• La fonction des touches 5/∞ est similaire à celle des
touches 4/¢.
LE40892-001A
