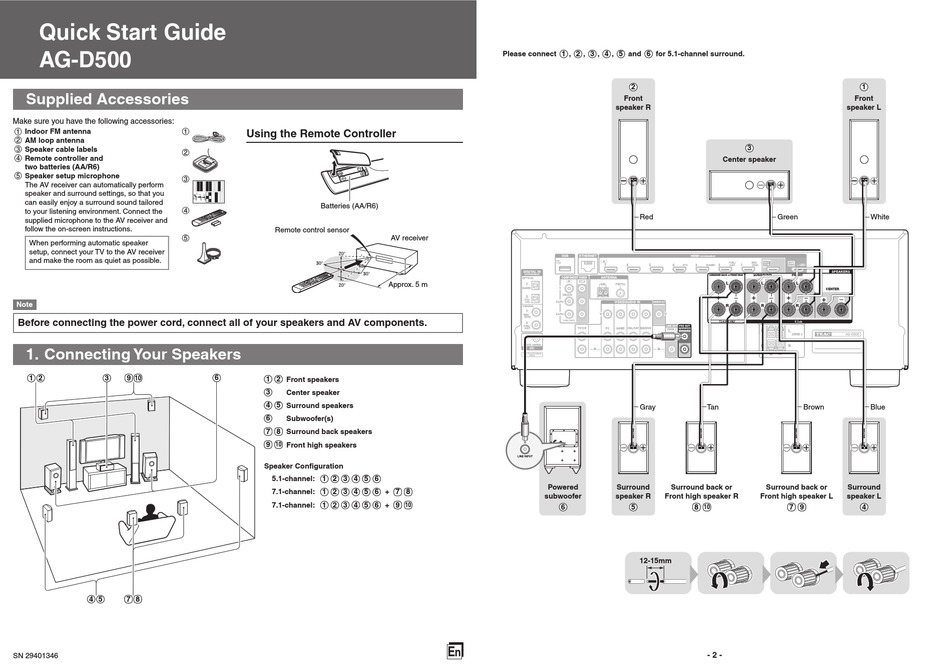

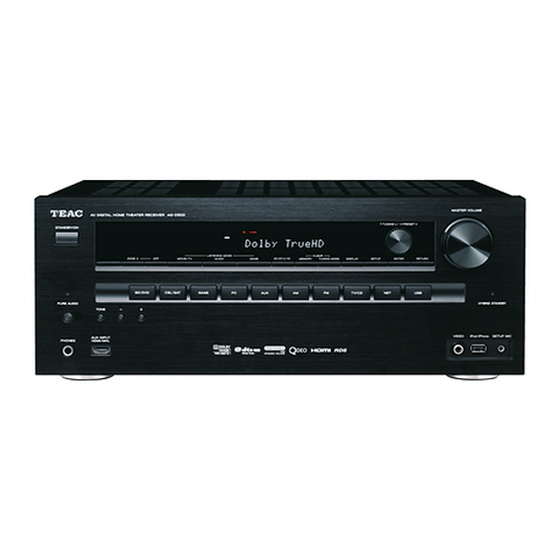

Quick Start Guide
AG-D500
Supplied Accessories
Make sure you have the following accessories:
a Indoor FM antenna
b AM loop antenna
c Speaker cable labels
d Remote controller and
two batteries (AA/R6)
e Speaker setup microphone
The AV receiver can automatically perform
speaker and surround settings, so that you
can easily enjoy a surround sound tailored
to your listening environment. Connect the
supplied microphone to the AV receiver and
follow the on-screen instructions.
When performing automatic speaker
setup, connect your TV to the AV receiver
and make the room as quiet as possible.
Note
Before connecting the power cord, connect all of your speakers and AV components.
1. Connecting Your Speakers
1 2
3
9 10
4 5
7 8
SN 29401346
Using the Remote Controller
Batteries (AA/R6)
Remote control sensor
AV receiver
Approx. 5 m
6
1 2 Front speakers
3
Center speaker
4 5 Surround speakers
6
Subwoofer(s)
7 8 Surround back speakers
9
10
Front high speakers
Speaker Configuration
5.1-channel: 1 2 3 4 5 6
7.1-channel: 1 2 3 4 5 6 + 7 8
7.1-channel: 1 2 3 4 5 6 + 9
Please connect 1 , 2 , 3 , 4 , 5 and 6 for 5.1-channel surround.
Powered
subwoofer
10
6
E
n
2
Front
speaker R
3
Center speaker
Red
Green
Gray
Tan
Surround
Surround back or
Surround back or
speaker R
Front high speaker R
Front high speaker L
5
8
7 9
10
12-15mm
- 2 -
1
Front
speaker L
White
Brown
Blue
Surround
speaker L
4

Advertisement

loading
Need help?

Need help?

Do you have a question about the AG-D500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Teac AG-D500

  • Page 1 Quick Start Guide AG-D500 Please connect 1 , 2 , 3 , 4 , 5 and 6 for 5.1-channel surround. Supplied Accessories Front Front speaker R speaker L Make sure you have the following accessories: a Indoor FM antenna Using the Remote Controller...
  • Page 2: Dvd Player

    2. Connecting Your Components Connecting Components without HDMI Connecting Components with HDMI Game console VIDEO HDMI AV OUT HDMI Blu-ray Disc/ DVD player Please turn on “HDMI Control(RIHD)” from the setup menu. HDMI Satellite/cable set-top box, etc. Personal Game console computer HDMI HDMI...
  • Page 3 3. Turning On & Basic Operations 4. Using the Setup User Interface The on-screen menus appear only on a TV that is connected to the HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings. •...
  • Page 4: Remote Controller

    Note that resetting the AV receiver will delete your radio presets and onscreen menus. custom settings. TEAC AUDIO EUROPE [Europe Head Office] Liegnitzer Straße 6, 82194 Gröbenzell, Germany Tel: +49 (0)8142-420-8141-141 Website: www.teac-audio.eu e-Mail: support_de@teac-audio.eu TEAC AUDIO EUROPE [UK Branch Office] Unit 19, Building 6 Croxley Green Business Park Hatters Lane Watford Hertfordshire WD18 8YH United Kingdom e-Mail: support_eu@teac-audio.eu...
