Connections

Before connecting external equipment to LCD:
* First turn off the power to all of the equipment associated with the LCD as well as that of the equipment to be connected.
* For questions regarding external equipment please refer to the user's manual supplied with that equipment.
AV
Attaching the Ferrite Core
Attach the Ferrite Core to PC Audio Cable.
Use of the cable without mounting the ferrite core may result in the
occurrence of noise.
• For PC Audio Cable
Open the ferrite core and clamp
1
it on the PC Audio cable.
Ferrite Core
Denotes an AV unit function.
AV
All AV functions are enabled when the AV unit is installed.

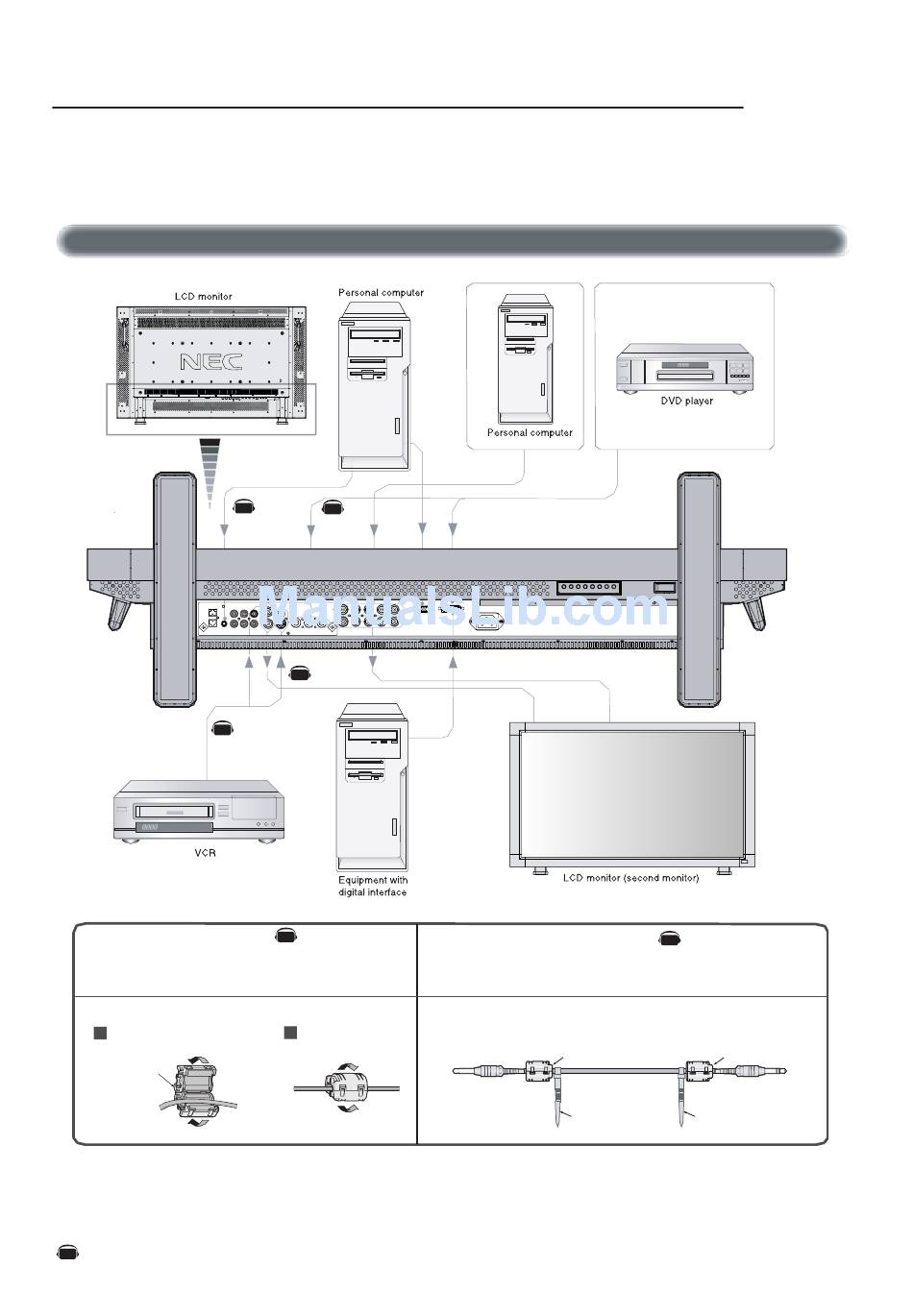

Wiring Diagram

AV
AV
AV
AV
Close the ferrite core.
2
Mounting Position of Ferrite Core
Attach the Ferrite Core to the both ends of PC Audio Cable.
Ferrite Core
To AUDIO 1 of monitor
Band
English-12
AV
Ferrite Core
To connector of PC
Band
