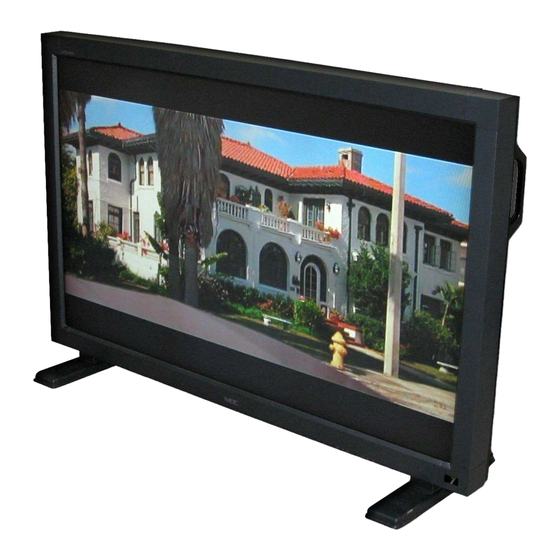

NEC LCD4000 User Manual

Nec display solutions user's manual monitor lcd4000
Hide thumbs Also See for LCD4000:
Table of Contents

Advertisement

Quick Links

LCD4000
TM

Advertisement

Table of Contents
loading

Related Manuals for NEC LCD4000

Summary of Contents for NEC LCD4000

  • Page 1 LCD4000...
  • Page 2 Table of Contents...
  • Page 3 C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to 950. FCC Information 1. Use the attached specified cables with the LCD4000 (L40HV201) color monitor so as not to interfere with radio and television reception. (1) Please use the supplied power cord or equivalent to ensure FCC compliance.

  • Page 4: Safety Precautions And Maintenance

    Safety Precautions and Maintenance FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE LCD4000 LCD COLOR MONITOR: • DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks.
  • Page 5 *Install an attached stand at the time of unpacking when it uses with the stand. *Remember to save your original box and packing material to transport or ship the monitor. The following components are available to use with the LCD4000. To obtain the optional components and additional information, contact Customer Service at (800) 632-4662.

  • Page 6: Ventilation Requirements For Enclosure Mounting

    This device cannot be used or installed without the Tabletop Stand or other mounting accessory. For proper installation it is strongly recommended to use a trained, NEC authorized service person. Failure to follow NEC standard mounting procedures could result in damage to the equipment or injury to the user or installer. Prod- uct warranty does not cover damage caused by improper instal- lation.

  • Page 7: Control Panel

    EXIT POWER button ( Switches the power on/off. See also page 17. MUTE button Switches the audio mute ON/OFF. INPUT button Acts as SET button with OSM menu. Selects the signal connected with the RGB input connector. (Toggle switches between [RGB1], [RGB2], [RGB3], [DVD/HD], or [VIDEO].) PLUS button...

  • Page 8: Terminal Panel

    AC IN connector Connects with the supplied power cord. RGB 1 IN (DVI-D) To input digital RGB signals from a computer having a digital RGB output. * This connector does not support analog input. RGB 2 IN (mini D-Sub 15 pin) To input a analog RGB signals from a personal computer or other RGB equipment.

  • Page 9: Wireless Remote Control

    REMOTE CONTROLLER RU-M104 POWER button Switches the power on/off. * If Power Indicator is not glowing, then no controls will work. INPUT button Selects from input signal, [RGB1], [RGB2], [RGB3], [DVD/ HD], [VIDEO]. AUDIO INPUT button Selects from input audio signal, [AUDIO1], [AUDIO2], [AUDIO3] SIZE button Selects picture size, [FULL], [NORMAL], [WIDE].

  • Page 10: Operating Range For The Remote Control

    Operating Range for the Remote Control Point the top of the remote control toward the LCD monitor's re- mote sensor during button operation. Use the remote control within a distance of about 7 m/23 ft. from the front of the LCD monitor's remote control sensor and at a hori- zontal and vertical angle of within 30°...

  • Page 11: Determine The Installation Location

    3. Replace the cover. Remove the cover Insert the batteries CAUTION Incorrect usage of batteries can result in leaks or bursting. NEC recommends the following battery use: • Place "AA" size batteries matching the + and - signs on each battery to the + and - signs of the battery compartment.

  • Page 12: Before Making Connections

    Before making connections: First turn off the power of all the attached equipment and make connections. Refer to the user manual included with each separate piece of equipment. LCD monitor Attaching the Ferrite Core Attach the Ferrite Core to PC Audio Cable and S-VIDEO Cable. Use of the cable without mounting the ferrite core will result in the occurrence of noise.

  • Page 13: Connecting The Lcd Monitor To A Pc

    –continued Connecting the LCD Monitor to a PC Connecting your computer to your LCD monitor will enable you to display your computer's screen image. Some video cards may not display an image correctly. • To connect the RGB 2 IN connector (mini D-sub 15 pin) on the LCD monitor, use the provided RGB signal cable (mini D-sub 15 pin to mini D-sub 15 pin).

  • Page 14: Connecting To A Macintosh

    ® computers, use Macintosh cable adapter to connect to your Macintosh's video port. NOTE: To obtain the Macintosh cable adapter call NEC-Mitsubishi Electronics Display of America, Inc. at (800) 632-4662 • To connect the RGB 3 DVD/HD IN connector (BNC) on the LCD monitor, use the signal cable available separately (mini D-sub 15 pin to BNC x 5).

  • Page 15: Connecting To A Computer With A Digital Output

    –continued Connecting to a Computer with a Digital Output Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual Interface) standard. • The RGB 1 IN connector also accepts a DVI-D cable. •...

  • Page 16: Connecting To A Vcr Or Laser Disc Player

    –continued Connecting to a VCR or Laser Disc Player Connecting your VCR or laser disc player to your LCD monitor will enable you to display your VCR or laser disc player video. Refer to your VCR or laser disc player owner's manual for more information. •...

  • Page 17: Connecting To A Dvd Player

    –continued Connecting your DVD player to your LCD monitor will enable you to display your DVD video. Refer to your DVD player owner’s manual for more information. • To connect the RGB 3 DVD/HD In connector (BNC) on the LCD monitor, use a separately available BNC connector cable. You will need a BNC-to-RCA adapter to connect a DVD player with an RCA pin jack to the BNC connector cable (not provided).

  • Page 18: Connecting To A Stereo Amplifier

    –continued Connecting to a Stereo Amplifier You can connect your stereo amplifier to your LCD monitor. Refer to your amplifier owner's manual for more information. • Turn on the LCD monitor and the amplifier only after all hookups have been made. •...

  • Page 19: Pressing The Power Button

    The LCD monitor power indicator will turn green while powered on or red in off mode. The monitor can be powered on or off using the following three options: Power Button Main Power Switch –Power ON and OFF Modes 1. Pressing the power button. NOTE: Before operating the remote control, be sure to turn on the Main Power Switch on the LCD monitor.

  • Page 20: Power Indicator

    Power Indicator Power Indicator Power ON Power OFF Power Standby Red and Green When Using Power Management Function The LCD monitor follows the VESA approved DPMS Power Man- agement function. The power management function is an energy saving function that automatically reduces the power consumption of the display when the keyboard or the mouse has not been used for a fixed period of time.

  • Page 21: Remote Control

    Press UP or DOWN button to select sub-menu Remote Control Press UP or DOWN button to select Control Panel UP or DOWN button OSM screen BRIGHTNESS CONTRAST SHARPNESS BLACK LEVEL COLOR CONTROL COLOR TEMPERATURE PICTURE RESET :SEL EXIT:PRE SET:NEXT MENU:END Main-Menu PICTURE Sub-Menu...

  • Page 22: Clock Phase

    –Computer continued BRIGHTNESS CONTRAST SHARPNESS COLOR TEMPERATURE BLACK LEVEL COLOR CONTROL COLOR TEMPERATURE PICTURE RESET :SEL EXIT:PRE SET:NEXT MENU:END BRIGHTNESS CONTRAST SHARPNESS PICTURE RESET BLACK LEVEL COLOR CONTROL COLOR TEMPERATURE PICTURE RESET :SEL EXIT:PRE SET:NEXT MENU:END Main-Menu SCREEN Sub-Menu H POSITION V POSITION CLOCK H POSITION...

  • Page 23: Audio Reset

    –Computer continued Main-Menu AUDIO Sub-Menu TREBLE BASS AUDIO RESET TREBLE :SEL EXIT:PRE SET:NEXT MENU:END TREBLE BASS AUDIO RESET BASS :SEL EXIT:PRE SET:NEXT MENU:END TREBLE BASS AUDIO RESET AUDIO RESET :SEL EXIT:PRE SET:NEXT MENU:END Main-Menu PICTURE IN PICTURE Sub-Menu PIP SIZE PIP SIZE PIP AUDIO PIP RESET...

  • Page 24: Auto Brightness

    –Computer continued AUTO SETUP AUTO ADJUST AUTO BRIGHTNESS POWER SAVE AUTO BRIGHTNESS LANGUAGE OSM TIME OFF TIMER SCREEN SAVER FACTORY PRESET *:INPUT RGB2/3 only :SEL EXIT:PRE SET:NEXT MENU:END AUTO SETUP AUTO ADJUST AUTO BRIGHTNESS POWER SAVE LANGUAGE POWER SAVE OSM TIME OFF TIMER SCREEN SAVER FACTORY PRESET...
  • Page 25 –DVD & HD Main-Menu PICTURE Sub-Menu BRIGHTNESS CONTRAST SHARPNESS BRIGHTNESS COLOR BLACK LEVEL PICTURE RESET :SEL EXIT:PRE SET:NEXT MENU:END BRIGHTNESS CONTRAST SHARPNESS CONTRAST COLOR BLACK LEVEL PICTURE RESET :SEL EXIT:PRE SET:NEXT MENU:END BRIGHTNESS CONTRAST SHARPNESS SHARPNESS COLOR BLACK LEVEL PICTURE RESET :SEL EXIT:PRE SET:NEXT MENU:END BRIGHTNESS CONTRAST...

  • Page 26: Off Timer

    –DVD & HD continued Main-Menu PICTURE IN PICTURE Sub-Menu PIP SIZE PIP SIZE PIP AUDIO PIP RESET :SEL EXIT:PRE SET:NEXT MENU:END PIP SIZE PIP AUDIO PIP AUDIO PIP RESET :SEL EXIT:PRE SET:NEXT MENU:END PIP SIZE PIP RESET PIP AUDIO PIP RESET :SEL EXIT:PRE SET:NEXT MENU:END Main-Menu CONFIGURATION...
  • Page 27 –AV Input Main-Menu PICTURE Sub-Menu BRIGHTNESS CONTRAST SHARPNESS BRIGHTNESS TINT COLOR BLACK LEVEL NOISE REDUCTION PICTURE RESET :SEL EXIT:PRE SET:NEXT MENU:END BRIGHTNESS CONTRAST SHARPNESS CONTRAST TINT COLOR BLACK LEVEL NOISE REDUCTION PICTURE RESET :SEL EXIT:PRE SET:NEXT MENU:END BRIGHTNESS CONTRAST SHARPNESS SHARPNESS TINT COLOR...
  • Page 28 –AV Input continued TREBLE BASS AUDIO RESET BASS :SEL EXIT:PRE SET:NEXT MENU:END TREBLE BASS AUDIO RESET AUDIO RESET :SEL EXIT:PRE SET:NEXT MENU:END Main-Menu PICTURE IN PICTURE Sub-Menu PIP SIZE PIP SIZE PIP AUDIO PIP RESET :SEL EXIT:PRE SET:NEXT MENU:END PIP SIZE PIP AUDIO PIP AUDIO PIP RESET...

  • Page 29: Color System

    –AV Input continued LANGUAGE OSM TIME OFF TIMER COLOR SYSTEM SCREEN SAVER COLOR SYSTEM CONFIGURATION RESET :SEL EXIT:PRE SET:NEXT MENU:END LANGUAGE OSM TIME OFF TIMER CONFIGURATION RESET SCREEN SAVER COLOR SYSTEM CONFIGURATION RESET :SEL EXIT:PRE SET:NEXT MENU:END Selecting the Color System depends on your input COLOR SYSTEM video format.
  • Page 30 This LCD monitor can be controlled by connecting a personal computer with a RS-232C terminal. Functions that can be controlled by a personal computer are: • Power ON or OFF • Switching between input signals Connection LCD Monitor + PC Note: If your PC (IBM or IBM compatible) is equipped only with a 25-pin serial port connector, a 25-pin serial port adapter is required.
  • Page 31 3) Control sequence (1) The command from a personal computer to the LCD monitor will be sent in 400ms. (2) The LCD monitor will send a return command 400ms* after it has received an encode. If the command isn't received correctly, the LCD monitor will not send the return command. (3) The personal computer checks the command and confirms if the command which has been sent has been executed or not.
  • Page 32 ® ) puts you in complete control of display setting adjustments. NEC’s quality and reliability provide peace of mind with a 1-year warranty (including backlight) and 24/7 customer service and technical support. No Touch Auto Adjust: No Touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup.
  • Page 33 NOTE: As with all personal display devices, NEC-Mitsubishi Electronics Display recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
  • Page 34 NEC-Mitsubishi Monitor Customer Service & Support Customer Service and Technical Support: Parts and Accessories/Macintosh Cable Adapter: Customer Service Policies & Processes: Online Technical Support Knowledge Base: Customer Service & Technical Support Email: Sales and Product Information Sales Information Line Canadian Customers...
  • Page 35 640 x 480 at 60 Hz 800 x 600 at 60 Hz 1024 x 768 at 60 Hz NEC-Mitsubishi Electronics Display cites recommended resolution 1280 x 768 at 60 Hz ... at 60 Hz for optimal display performance. NTSC / PAL...
  • Page 36 NEC-Mitsubishi Electronics Display of America, Inc. (hereinafter “NMD-A”) warrants this Product to be free from defects in material and workmanship and, subject to the conditions set forth below, agrees to repair or replace (at NMD-A’s sole option) any part of the enclosed unit which proves defective for a period of one (1) year from the date of first consumer purchase.

  • Page 37: Declaration Of The Manufacturer

    Declaration of the Manufacturer We hereby certify that the color monitors LCD4000 is in compliance with Council Directive 73/23/EEC: – EN 60950 Council Directive 89/336/EEC: — EN 55022 — EN 61000-3-2 — EN 61000-3-3 — EN 55024 and marked with...

  • Page 38: Declaration Of Conformity

    FCC Rules. Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. All other brands and product names are trademarks or registered trademarks of their respective owners.

This manual is also suitable for:

Lcd4000-bk
