PARLOUR 3000-MV
DIRECT VENT GAS HEATER
Installation and Operating Instructions
Listing F21-700
Parlour-Direct-Vent-Gas-MV-Owners-Manual-TH-REF-SLS-233 2021
CUSTOMER: PLEASE KEEP INSTRUCTIONS FOR FUTURE REFERENCE
INSTALLER: PLEASE LEAVE THIS MANUAL WITH THE CUSTOMER!
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION.
SAVE THESE INSTRUCTIONS.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PARLOUR 3000-MV and is the answer not in the manual?

Questions and answers

Related Manuals for Thelin PARLOUR 3000-MV

Summary of Contents for Thelin PARLOUR 3000-MV

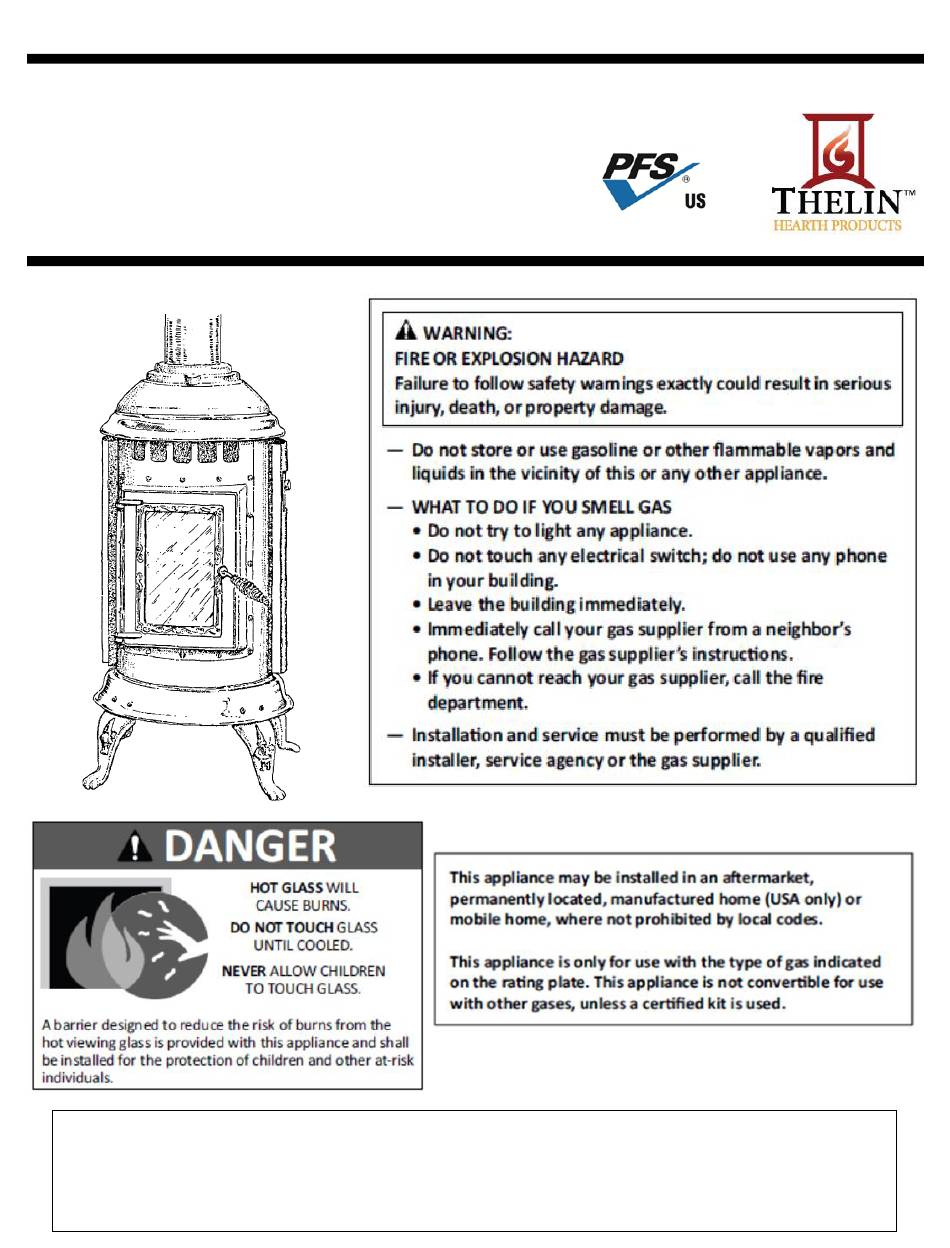

  • Page 1 PARLOUR 3000-MV DIRECT VENT GAS HEATER Installation and Operating Instructions Listing F21-700 Parlour-Direct-Vent-Gas-MV-Owners-Manual-TH-REF-SLS-233 2021 CUSTOMER: PLEASE KEEP INSTRUCTIONS FOR FUTURE REFERENCE INSTALLER: PLEASE LEAVE THIS MANUAL WITH THE CUSTOMER! PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION. SAVE THESE INSTRUCTIONS.
  • Page 2 PARLOUR 3000-MV DIRECT VENT GAS HEATER SAFETY NOTICES For Your Safety Installation Do not store or use gasoline or any other flammable vapors or liquids in the vicinity of this or any other PLEASE READ INSTRUCTIONS appliance CAREFULLY BEFORE INSTALLING AND...
  • Page 3 PARLOUR 3000-MV DIRECT VENT GAS HEATER SAFETY NOTICES IF THIS APPLIANCE IS NOT PROPERLY INSTALLED, A HOUSE FIRE, OR EXPLOSION MAY RESULT. FOR YOUR SAFETY, FOLLOW THE INSTALLATION DIRECTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION REQUIREMENTS IN YOUR AREA.
  • Page 4 This appliance is only for use with the type of gas indicated on the Please contact Thelin Hearth Products, Inc, if you rating plate. This appliance is not convertible for use have any questions regarding the certification of this with other gases, unless a certified kit is used.
  • Page 5 PARLOUR 3000-MV DIRECT VENT GAS HEATER INDEX OF CONTENTS Airflow, 9 Glass Replacement, 26 Alcove Installation, 17 Gold Appendix A, 34 polishing, 26 Appendix B, 35 Hi/Lo Flame Adjust, 21 Appendix C, 36 Horizontal Installation, 14 Bedroom Installation, 14 Horizontal Termination, 14...

  • Page 6: Table Of Contents

    PARLOUR 3000-MV DIRECT VENT GAS HEATER FIGURES Figure 1 – Diagram of Dimensions ........................10 Figure 2 – Clearance to Combustibles ........................11 Figure 3 – Bottom View Showing Air Shutter and Location for Pressure Gauge Insertion ........ 13 Figure 4 – Vent Termination Locations ........................ 15 Figure 5 –...
  • Page 7 PARLOUR 3000-MV DIRECT VENT GAS HEATER WARNING Failure to follow the information in this manual exactly could result in a fire, explosion resulting in property damage, personal injury, and loss of life. Do not store or use gasoline or other flammable liquids in the vicinity of this or any other appliance.
  • Page 8 PARLOUR 3000-MV DIRECT VENT GAS HEATER LABORATORY LISTING LABEL...
  • Page 9 INFORMATION the gas line (see Figure 1). Permit Thelin Co., Inc. would like to thank you for choosing our Parlour 3000 Direct Vent Gas appliance. Contact your local building officials and obtain a Whether you are hooking up to a natural gas or liquid permit before beginning installation.

  • Page 10: Figure 1 - Diagram Of Dimensions

    PARLOUR 3000-MV DIRECT VENT GAS HEATER FIGURE 1 – DIAGRAM OF DIMENSIONS...

  • Page 11: Figure 2 - Clearance To Combustibles

    PARLOUR 3000-MV DIRECT VENT GAS HEATER FIGURE 2 – CLEARANCE TO COMBUSTIBLES 10” 16” Unit to corner ..........10” Center of pipe to corner ........ 16” Please use these diagrams to place your stove in the room. Please note “Cornerwall” means from the back of the stove to the corner.
  • Page 12 (see Maintenance routine maintenance. section). Do not place anything inside the firebox SPECIFICATIONS area except authorized Thelin Hearth Products, Inc factory log set. If the logs become damaged, replace with factory-authorized logs. Never remove, replace, Listing Criteria, Lab Accreditation...

  • Page 13: Figure 3 - Bottom View Showing Air Shutter And Location For Pressure Gauge Insertion

    #39 (up to 4,500’ elevation) Natural Gas #53 (up to 4,500’ elevation) LP Gas Recommendation: If installing at higher altitudes, Thelin Co. recommends, at the discretion of the installer: #40 (5,000’ to 7,000’ elevation) Natural Gas #54 (5,000’ to 7,000’ elevation) LP Gas REMEMBER! The size of the orifice hole should be reduced the higher the elevation.
  • Page 14 PARLOUR 3000-MV DIRECT VENT GAS HEATER Orifice Size located out of traffic and away from furniture and draperies. Children and adults should be alerted to The orifices are factory installed for altitudes up to the hazards of high surface temperature and should 4,500 feet.

  • Page 15: Figure 4 - Vent Termination Locations

    PARLOUR 3000-MV DIRECT VENT GAS HEATER FIGURE 4 – VENT TERMINATION LOCATIONS...
  • Page 16 PARLOUR 3000-MV DIRECT VENT GAS HEATER B. Clearance to window or door that may be opened: J. Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other Canadian Installation: 6” minimum (15 cm) for appliance: appliances ...
  • Page 17 PARLOUR 3000-MV DIRECT VENT GAS HEATER PLANNING THE INSTALLATION Venting Requirements For proper venting, see Figure 5 and install according There are two basic types of Direct Vent to the following requirements. installations: ▪ Horizontal Termination (Figure 5 and Figure 6) WARNING: The gas appliance and vent system ▪...

  • Page 18: Figure 5 - Diagram Of Venting Requirements

    PARLOUR 3000-MV DIRECT VENT GAS HEATER FIGURE 5 – DIAGRAM OF VENTING REQUIREMENTS...
  • Page 19 PARLOUR 3000-MV DIRECT VENT GAS HEATER restriction disks. (See Appendix A). Two 45- condensation can cause corrosion of caps, pipe, degree elbows to offset the vertical rise are and fittings. It may be caused by having permitted. Clearances to combustibles when passing...

  • Page 20: Figure 6 - Vent Termination

    PARLOUR 3000-MV DIRECT VENT GAS HEATER FIGURE 6 – VENT TERMINATION Wind flow over roof structures can often cause localized pressure disturbances. Vent termination must take into account these disturbances and minimize them by using the following table to maintain the correct legal height of the vent.
  • Page 21 PARLOUR 3000-MV DIRECT VENT GAS HEATER Gas Line Installation Burner On/Off Switch The gas line must be installed in accordance with all This switch turns the burner on after the pilot is lit. local codes. See Figure 8 for location of gas hook-up When the wall thermostat is hooked up, this switch will remain in the “On”...

  • Page 22: Figure 7 - Location Of Pilot, Burners, And Logs

    PARLOUR 3000-MV DIRECT VENT GAS HEATER FIGURE 7 – LOCATION OF PILOT, BURNERS, AND LOGS Note: Burner must be removed to access air shutter (See Appendix B) Burner and Pilot Checks A periodic check of the pilot and burner flames should be made. Check after the fire has been on for at least 30 minutes.

  • Page 23: Figure 8 - Diagram Of Control Components

    PARLOUR 3000-MV DIRECT VENT GAS HEATER FIGURE 8 – DIAGRAM OF CONTROL COMPONENTS...
  • Page 24 PARLOUR 3000-MV DIRECT VENT GAS HEATER LIGHTING THE PILOT MAINTENANCE STOP! Read the following safety information Make sure that there is adequate clearance for before lighting. accessibility to service and operate the heater. Always verify proper operation after servicing. This heater is equipped with an ignition device which Every year you should inspect your fire box, burner, must be lighted by hand.
  • Page 25 PARLOUR 3000-MV DIRECT VENT GAS HEATER FOR YOUR SAFETY, READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which is lit with a push-button piezo lighter. When lighting the pilot, follow these instructions exactly.
  • Page 26 Kel Kem Spray Gold Cleaner or Flitz Faucet & furnished by Thelin Hearth Products, Inc. Do not Fixture Wax and a soft clean cloth to wipe any substitute materials or try to cut glass that is not...
  • Page 27 PARLOUR 3000-MV DIRECT VENT GAS HEATER TROUBLESHOOTING WARNING: All servicing and troubleshooting of gas controls and high voltage circuits should be done by a qualified service technician. As a guide to help you understand the functioning and potential problem areas in your heater, use the following chart.
  • Page 28 REPLACEMENT PARTS LIST Replacement parts are available at your dealer. Contact Thelin Co. for information on the closest dealer. The parts listed below are the only parts that the consumer may replace. All other parts must be replaced by a qualified gas service person.

  • Page 29: Figure 9 - Wiring Diagram

    PARLOUR 3000-MV DIRECT VENT GAS HEATER FIGURE 9 – WIRING DIAGRAM Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.
  • Page 30 Thelin Company, Inc., Warranty Division, 12400 Loma Rica Drive, Grass Valley, CA 95945. Returned part or product will be repaired or replaced at Thelin Co.'s option and will be returned to you, freight prepaid, as soon as practical, but not later than 30 days after receipt.

  • Page 31: Figure 10 - Directions For Enabling Door Opening And Securing Door

    PARLOUR 3000-MV DIRECT VENT GAS HEATER FIGURE 10 – DIRECTIONS FOR ENABLING DOOR OPENING AND SECURING DOOR Cleaning Glass 1. Turn off stove and let cool down. 2. Open door and clean glass with glass cleaner (i.e., Windex or similar product) and wipe with soft cloth.

  • Page 32: Figure 11 - Delayed Ignition Safety Door

    PARLOUR 3000-MV DIRECT VENT GAS HEATER FIGURE 11 – DELAYED IGNITION SAFETY DOOR This unit is equipped with a safety door system that will prevent damage if the stove ignites with delayed combustion. If this happens, you must have a qualified service person determine the cause of the delayed...

  • Page 33: Figure 12- Gas Valve And Pilot Assembly

    PARLOUR 3000-MV DIRECT VENT GAS HEATER FIGURE 12– GAS VALVE AND PILOT ASSEMBLY...
  • Page 34 PARLOUR 3000-MV DIRECT VENT GAS HEATER APPENDIX A – VERTICAL PIPE INSTALLATION – AIR INTAKE RESTRICTOR DISKS...
  • Page 35 PARLOUR 3000-MV DIRECT VENT GAS HEATER APPENDIX B – PARLOUR STOVE WITH BURNER...
  • Page 36 PARLOUR 3000-MV DIRECT VENT GAS HEATER APPENDIX C – PYROTECH LOG PLACEMENT 1. Ember bed installed with brick panel. 2. Install rear log #2 against brick panel and center right to left. 4. Rest the “Y” log, #4, on top of the small log 3.
  • Page 37 PARLOUR 3000-MV DIRECT VENT GAS HEATER APPENDIX C – PYROTECH LOG PLACEMENT (CONTINUED) 5. Place the front log #5 against the “Y” log in the notch shown in the illustration with the bottom end up against the lip of the door opening. Note:...
  • Page 38 PARLOUR 3000-MV DIRECT VENT GAS HEATER Thelin Hearth Products, Inc. 63 Laxalt Dr. Carson City, NV 89706 www.thelinco.com 775-241-2586...
