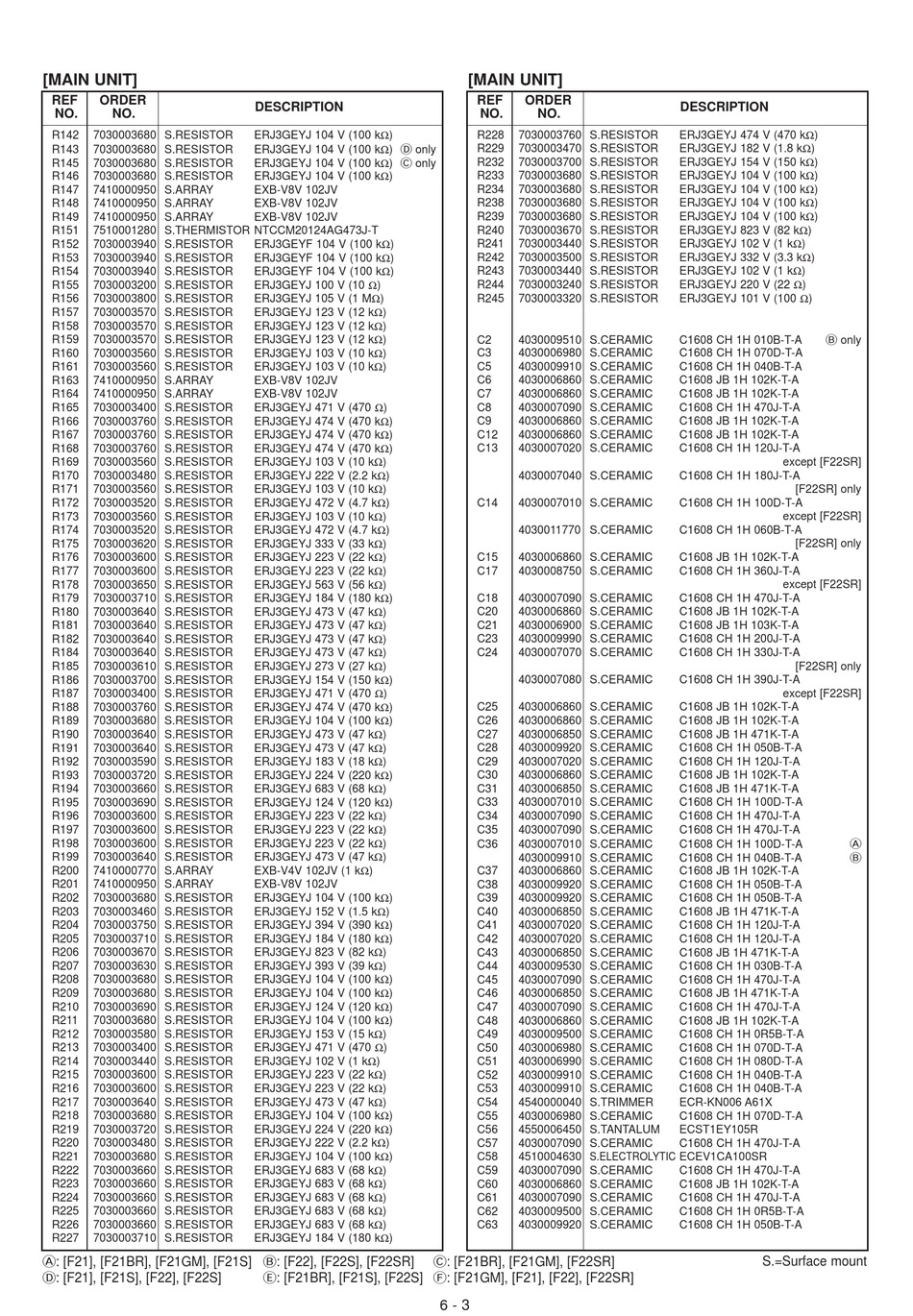

Icom IC-F11 Service Manual page 58

[MAIN UNIT]
REF ORDER
NO. NO.
R142 7030003680 S.RESISTOR
R143 7030003680 S.RESISTOR
R145 7030003680 S.RESISTOR
R146 7030003680 S.RESISTOR
R147 7410000950 S.ARRAY
R148 7410000950 S.ARRAY
R149 7410000950 S.ARRAY
R151 7510001280 S.THERMISTOR NTCCM20124AG473J-T
R152 7030003940 S.RESISTOR
R153 7030003940 S.RESISTOR
R154 7030003940 S.RESISTOR
R155 7030003200 S.RESISTOR
R156 7030003800 S.RESISTOR
R157 7030003570 S.RESISTOR
R158 7030003570 S.RESISTOR
R159 7030003570 S.RESISTOR
R160 7030003560 S.RESISTOR
R161 7030003560 S.RESISTOR
R163 7410000950 S.ARRAY
R164 7410000950 S.ARRAY
R165 7030003400 S.RESISTOR
R166 7030003760 S.RESISTOR
R167 7030003760 S.RESISTOR
R168 7030003760 S.RESISTOR
R169 7030003560 S.RESISTOR
R170 7030003480 S.RESISTOR
R171 7030003560 S.RESISTOR
R172 7030003520 S.RESISTOR
R173 7030003560 S.RESISTOR
R174 7030003520 S.RESISTOR
R175 7030003620 S.RESISTOR
R176 7030003600 S.RESISTOR
R177 7030003600 S.RESISTOR
R178 7030003650 S.RESISTOR
R179 7030003710 S.RESISTOR
R180 7030003640 S.RESISTOR
R181 7030003640 S.RESISTOR
R182 7030003640 S.RESISTOR
R184 7030003640 S.RESISTOR
R185 7030003610 S.RESISTOR
R186 7030003700 S.RESISTOR
R187 7030003400 S.RESISTOR
R188 7030003760 S.RESISTOR
R189 7030003680 S.RESISTOR
R190 7030003640 S.RESISTOR
R191 7030003640 S.RESISTOR
R192 7030003590 S.RESISTOR
R193 7030003720 S.RESISTOR
R194 7030003660 S.RESISTOR
R195 7030003690 S.RESISTOR
R196 7030003600 S.RESISTOR
R197 7030003600 S.RESISTOR
R198 7030003600 S.RESISTOR
R199 7030003640 S.RESISTOR
R200 7410000770 S.ARRAY
R201 7410000950 S.ARRAY
R202 7030003680 S.RESISTOR
R203 7030003460 S.RESISTOR
R204 7030003750 S.RESISTOR
R205 7030003710 S.RESISTOR
R206 7030003670 S.RESISTOR
R207 7030003630 S.RESISTOR
R208 7030003680 S.RESISTOR
R209 7030003680 S.RESISTOR
R210 7030003690 S.RESISTOR
R211 7030003680 S.RESISTOR
R212 7030003580 S.RESISTOR
R213 7030003400 S.RESISTOR
R214 7030003440 S.RESISTOR
R215 7030003600 S.RESISTOR
R216 7030003600 S.RESISTOR
R217 7030003640 S.RESISTOR
R218 7030003680 S.RESISTOR
R219 7030003720 S.RESISTOR
R220 7030003480 S.RESISTOR
R221 7030003680 S.RESISTOR
R222 7030003660 S.RESISTOR
R223 7030003660 S.RESISTOR
R224 7030003660 S.RESISTOR
R225 7030003660 S.RESISTOR
R226 7030003660 S.RESISTOR
R227 7030003710 S.RESISTOR
A: [F21], [F21BR], [F21GM], [F21S] B: [F22], [F22S], [F22SR]
D: [F21], [F21S], [F22], [F22S]
DESCRIPTION
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 104 V (100 kΩ) D only
ERJ3GEYJ 104 V (100 kΩ) C only
ERJ3GEYJ 104 V (100 kΩ)
EXB-V8V 102JV
EXB-V8V 102JV
EXB-V8V 102JV
ERJ3GEYF 104 V (100 kΩ)
ERJ3GEYF 104 V (100 kΩ)
ERJ3GEYF 104 V (100 kΩ)
ERJ3GEYJ 100 V (10 Ω)
ERJ3GEYJ 105 V (1 MΩ)
ERJ3GEYJ 123 V (12 kΩ)
ERJ3GEYJ 123 V (12 kΩ)
ERJ3GEYJ 123 V (12 kΩ)
ERJ3GEYJ 103 V (10 kΩ)
ERJ3GEYJ 103 V (10 kΩ)
EXB-V8V 102JV
EXB-V8V 102JV
ERJ3GEYJ 471 V (470 Ω)
ERJ3GEYJ 474 V (470 kΩ)
ERJ3GEYJ 474 V (470 kΩ)
ERJ3GEYJ 474 V (470 kΩ)
ERJ3GEYJ 103 V (10 kΩ)
ERJ3GEYJ 222 V (2.2 kΩ)
ERJ3GEYJ 103 V (10 kΩ)
ERJ3GEYJ 472 V (4.7 kΩ)
ERJ3GEYJ 103 V (10 kΩ)
ERJ3GEYJ 472 V (4.7 kΩ)
ERJ3GEYJ 333 V (33 kΩ)
ERJ3GEYJ 223 V (22 kΩ)
ERJ3GEYJ 223 V (22 kΩ)
ERJ3GEYJ 563 V (56 kΩ)
ERJ3GEYJ 184 V (180 kΩ)
ERJ3GEYJ 473 V (47 kΩ)
ERJ3GEYJ 473 V (47 kΩ)
ERJ3GEYJ 473 V (47 kΩ)
ERJ3GEYJ 473 V (47 kΩ)
ERJ3GEYJ 273 V (27 kΩ)
ERJ3GEYJ 154 V (150 kΩ)
ERJ3GEYJ 471 V (470 Ω)
ERJ3GEYJ 474 V (470 kΩ)
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 473 V (47 kΩ)
ERJ3GEYJ 473 V (47 kΩ)
ERJ3GEYJ 183 V (18 kΩ)
ERJ3GEYJ 224 V (220 kΩ)
ERJ3GEYJ 683 V (68 kΩ)
ERJ3GEYJ 124 V (120 kΩ)
ERJ3GEYJ 223 V (22 kΩ)
ERJ3GEYJ 223 V (22 kΩ)
ERJ3GEYJ 223 V (22 kΩ)
ERJ3GEYJ 473 V (47 kΩ)
EXB-V4V 102JV (1 kΩ)
EXB-V8V 102JV
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 152 V (1.5 kΩ)
ERJ3GEYJ 394 V (390 kΩ)
ERJ3GEYJ 184 V (180 kΩ)
ERJ3GEYJ 823 V (82 kΩ)
ERJ3GEYJ 393 V (39 kΩ)
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 124 V (120 kΩ)
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 153 V (15 kΩ)
ERJ3GEYJ 471 V (470 Ω)
ERJ3GEYJ 102 V (1 kΩ)
ERJ3GEYJ 223 V (22 kΩ)
ERJ3GEYJ 223 V (22 kΩ)
ERJ3GEYJ 473 V (47 kΩ)
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 224 V (220 kΩ)
ERJ3GEYJ 222 V (2.2 kΩ)
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 683 V (68 kΩ)
ERJ3GEYJ 683 V (68 kΩ)
ERJ3GEYJ 683 V (68 kΩ)
ERJ3GEYJ 683 V (68 kΩ)
ERJ3GEYJ 683 V (68 kΩ)
ERJ3GEYJ 184 V (180 kΩ)
E: [F21BR], [F21S], [F22S] F: [F21GM], [F21], [F22], [F22SR]
[MAIN UNIT]
REF ORDER
NO. NO.
R228 7030003760 S.RESISTOR
R229 7030003470 S.RESISTOR
R232 7030003700 S.RESISTOR
R233 7030003680 S.RESISTOR
R234 7030003680 S.RESISTOR
R238 7030003680 S.RESISTOR
R239 7030003680 S.RESISTOR
R240 7030003670 S.RESISTOR
R241 7030003440 S.RESISTOR
R242 7030003500 S.RESISTOR
R243 7030003440 S.RESISTOR
R244 7030003240 S.RESISTOR
R245 7030003320 S.RESISTOR
C2 4030009510 S.CERAMIC
C3 4030006980 S.CERAMIC
C5 4030009910 S.CERAMIC
C6 4030006860 S.CERAMIC
C7 4030006860 S.CERAMIC
C8 4030007090 S.CERAMIC
C9 4030006860 S.CERAMIC
C12 4030006860 S.CERAMIC
C13 4030007020 S.CERAMIC
4030007040 S.CERAMIC
C14 4030007010 S.CERAMIC
4030011770 S.CERAMIC
C15 4030006860 S.CERAMIC
C17 4030008750 S.CERAMIC
C18 4030007090 S.CERAMIC
C20 4030006860 S.CERAMIC
C21 4030006900 S.CERAMIC
C23 4030009990 S.CERAMIC
C24 4030007070 S.CERAMIC
4030007080 S.CERAMIC
C25 4030006860 S.CERAMIC
C26 4030006860 S.CERAMIC
C27 4030006850 S.CERAMIC
C28 4030009920 S.CERAMIC
C29 4030007020 S.CERAMIC
C30 4030006860 S.CERAMIC
C31 4030006850 S.CERAMIC
C33 4030007010 S.CERAMIC
C34 4030007090 S.CERAMIC
C35 4030007090 S.CERAMIC
C36 4030007010 S.CERAMIC
4030009910 S.CERAMIC
C37 4030006860 S.CERAMIC
C38 4030009920 S.CERAMIC
C39 4030009920 S.CERAMIC
C40 4030006850 S.CERAMIC
C41 4030007020 S.CERAMIC
C42 4030007020 S.CERAMIC
C43 4030006850 S.CERAMIC
C44 4030009530 S.CERAMIC
C45 4030007090 S.CERAMIC
C46 4030006850 S.CERAMIC
C47 4030007090 S.CERAMIC
C48 4030006860 S.CERAMIC
C49 4030009500 S.CERAMIC
C50 4030006980 S.CERAMIC
C51 4030006990 S.CERAMIC
C52 4030009910 S.CERAMIC
C53 4030009910 S.CERAMIC
C54 4540000040 S.TRIMMER
C55 4030006980 S.CERAMIC
C56 4550006450 S.TANTALUM
C57 4030007090 S.CERAMIC
C58 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C59 4030007090 S.CERAMIC
C60 4030006860 S.CERAMIC
C61 4030007090 S.CERAMIC
C62 4030009500 S.CERAMIC
C63 4030009920 S.CERAMIC
C: [F21BR], [F21GM], [F22SR]
6 - 3
DESCRIPTION
ERJ3GEYJ 474 V (470 kΩ)
ERJ3GEYJ 182 V (1.8 kΩ)
ERJ3GEYJ 154 V (150 kΩ)
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 104 V (100 kΩ)
ERJ3GEYJ 823 V (82 kΩ)
ERJ3GEYJ 102 V (1 kΩ)
ERJ3GEYJ 332 V (3.3 kΩ)
ERJ3GEYJ 102 V (1 kΩ)
ERJ3GEYJ 220 V (22 Ω)
ERJ3GEYJ 101 V (100 Ω)
B only
C1608 CH 1H 010B-T-A
C1608 CH 1H 070D-T-A
C1608 CH 1H 040B-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 120J-T-A
except [F22SR]
C1608 CH 1H 180J-T-A
[F22SR] only
C1608 CH 1H 100D-T-A
except [F22SR]
C1608 CH 1H 060B-T-A
[F22SR] only
C1608 JB 1H 102K-T-A
C1608 CH 1H 360J-T-A
except [F22SR]
C1608 CH 1H 470J-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 103K-T-A
C1608 CH 1H 200J-T-A
C1608 CH 1H 330J-T-A
[F22SR] only
C1608 CH 1H 390J-T-A
except [F22SR]
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 471K-T-A
C1608 CH 1H 050B-T-A
C1608 CH 1H 120J-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 471K-T-A
C1608 CH 1H 100D-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
A
C1608 CH 1H 100D-T-A
B
C1608 CH 1H 040B-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 050B-T-A
C1608 CH 1H 050B-T-A
C1608 JB 1H 471K-T-A
C1608 CH 1H 120J-T-A
C1608 CH 1H 120J-T-A
C1608 JB 1H 471K-T-A
C1608 CH 1H 030B-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1H 471K-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 0R5B-T-A
C1608 CH 1H 070D-T-A
C1608 CH 1H 080D-T-A
C1608 CH 1H 040B-T-A
C1608 CH 1H 040B-T-A
ECR-KN006 A61X
C1608 CH 1H 070D-T-A
ECST1EY105R
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 0R5B-T-A
C1608 CH 1H 050B-T-A
S.=Surface mount
