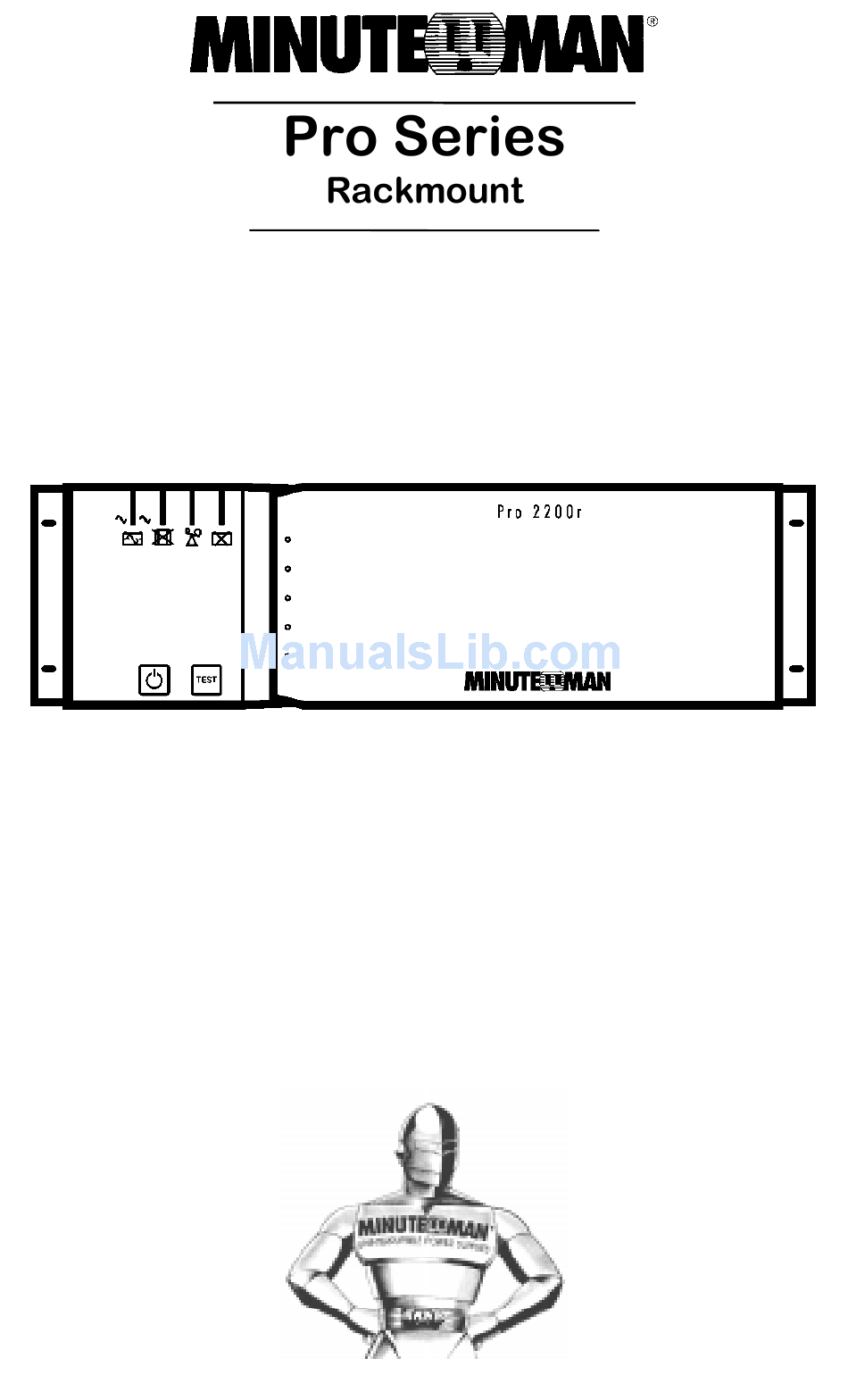

- Page 1 Uninterruptible Power Supply User’s Manual...
- Page 2 Pro Series User’s Manual Introduction Controls and Indicators Installation Operation Troubleshooting Replacing the Battery Obtaining Service Specifications Configurable Parameters & Settings 15 Limited Warranty © Copyright Para Systems, Inc., 1998...
- Page 3 Thank you for purchasing a Minuteman power protection product. It has been designed and manufactured to provide many years of trouble free service. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS ! Please read the manual before installing your Pro Series UPS as it...
-
Page 4: Receiving Inspection
Receiving Inspection After removing your Minuteman UPS from its carton, it should be inspected for damage that may have occurred in shipping. Immediately notify the carrier and place of purchase if any damage is found. Warranty claims for damage caused by the carrier will not be honored. -
Page 5: Front Panel
FRONT PANEL Pro 700, 1000, 1400r Pro 2200r front panel front panel Press and release the ON/OFF button after one beep to turn the unit on or off. (see section 4) online on-battery boost and buck The online/on battery/boost and buck LED illuminates in a steady state when the UPS is on... -
Page 6: Rear Panel
Pro 700, 1000 and 1400r Rear Panel Input Circuit Output Receptacles Accessory Slot Option Slots Breaker Connector RJ-45/RJ-11 Site Wiring Fault Protection Input Power Pro 2200r Rear Panel Input Circuit Site Wiring Fault Option Slot Breaker DB9 Connector Output Receptacles... -
Page 7: Installation Placement
DB9 CONNECTOR Minuteman Power Management software and interface cables kits are used with this port (software and cables are optional and available from Minuteman). Use only Minuteman or Minuteman approved interface cables with these UPS’s. Connect the interface cable to the DB9 connector on the rear of the UPS. - Page 8 This is an option that is only available on the 2200VA UPS. This is an optional connection for this UPS. The 2200 has internal batteries. The battery pack is available from Minuteman (PRO BP1). Only one battery pack may be connected to the UPS to extend its runtime. Use only the Pro BP1 battery pack with this UPS.
- Page 9 TURNING THE UNIT ON/OFF ON/OFF SWITCH Press and release the ON/OFF switch after one beep to turn the unit on and supply power to the load. The load will be immediately powered and 2 seconds later the UPS will run a 15 second self test before returning the load to the AC line.
-
Page 10: Troubleshooting Chart
REPLACE BATTERY The UPS automatically tests the battery’s condition and will illuminate the replace battery LED and emit a short beep. This tone will be repeated every hour until the battery passes a self test. It is recommended that the UPS be allowed to charge overnight before performing a battery test to confirm a replace battery condition. -
Page 11: Replacing The Battery
DISASSEMBLE THE UNIT BEYOND BATTERY REPLACEMENT PROCEDURES BELOW. EXCEPT FOR THE BATTERY, THIS UPS CONTAINS NO USER SERVICABLE PARTS. REPAIRS CAN BE PERFORMED BY MINUTEMAN SERVICE PERSONNEL ONLY. CAUTION: DO NOT OPEN OR MUTILATE BATTERIES. RELEASED ELECTROLYTE IS HARMFUL TO THE SKIN AND EYES AND MAY BE TOXIC CAUTION: DO NOT DISPOSE OF BATTERIES IN A FIRE. -
Page 12: Battery Replacement Procedure
NOTE: Small sparks at the battery connection are normal during battery connection. Close the door, replace the battery compartment screws, and replace the front cover. Dispose of the battery at an appropriate recycling facility or return it to Minuteman in the packing material from the new battery kit. - Page 13 (+) terminal. NOTE: Small sparks at the battery connection are normal during battery connection. Close the door, replace the battery compartment screws, and replace the front cover. Dispose of the battery at an appropriate recycling facility or return it to Minuteman in the packing material from the new battery kit.
- Page 14 Call your dealer for assistance. If you cannot reach your dealer, or if he cannot resolve the problem. call or FAX Minuteman Technical Support at the following numbers: Voice phone (972) 446-7363, FAX line (972) 446-9011, e-mail: support@minuteman- ups.com.
- Page 15 < 45 Audible alarm On Overload, Low battery warning, On battery Communications port DB-9 Minuteman standard, optional SNMP Size (H x W x D) 8.9 X 48.3 X 45.3 cm 13.2 X 48.3 X 50.4 cm (3.5 X 19.0 X 17.8 in) (5.2 X 19.0 X 19.8 in)
- Page 16 NOTE: These items require optional software or hardware Function Factory Default User Choices Description UPS ID Model number Up to 64 characters to Use this function to define the UPS uniquely identify the UPS in your network configuration Date of manufacture Enter the current date Battery install date Date of battery...
-
Page 17: Limited Product Warranty
LIMITED PRODUCT WARRANTY LIMITED PRODUCT WARRANTY Para Systems Inc. (Para Systems) warrants this equipment, when properly applied and operated within specified conditions, against faulty materials or workmanship for a period of three years from the date of original purchase by the end user. For equipment sites within the United States and Canada, this warranty covers repair or replacement of defective equipment at the discretion of Para Systems. -
Page 18: Declaration Of Conformity
Application of Council Directive(s): 89/336/EEC, 73/23/EEC Standard(s) to which Conformity is Declared: EN50091-1, EN50091-2 EN50082-1, EN55022, EN60950, EN61000-3-2, EN61000-3-3 Manufacturer’s Name: Para Systems, Inc. (Minuteman Power Supplies) Manufacturer’s Address: 1455 LeMay Drive Carrollton, Texas 75007 USA Type of Equipment: Uninterruptible Power Supplies... - Page 19 Para Systems, Inc. 1455 LeMay Dr. Carrollton, TX 75007 Phone: (972) 446-7363 Fax: (972) 446-9011 QuickFax Info System: 1-800-263-3933 Internet: www minuteman-ups.com PN: 34000033 Rev. 1...
