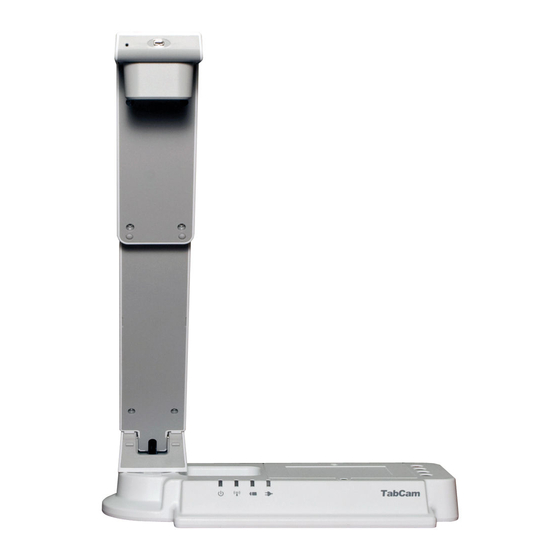

AVer TabCam User Manual

Camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ENGLISH
TabCam
User Manual v1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TabCam and is the answer not in the manual?

Questions and answers

Related Manuals for AVer TabCam

Summary of Contents for AVer TabCam

  • Page 1 ENGLISH TabCam User Manual v1.3...
  • Page 2 © 2014 by AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form, or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.

  • Page 3: Table Of Contents

    ..........5 Advanced Deployment Criteria & Guidelines ................ 5 Battery Safety Information ..................5 Battery Usage Set up TabCam using the QR Code .............. 6 ..............6 Use iPad or Android Pad App Desktop Version .................... 9 ................... 9 Firmware Upgrade ...............
  • Page 4 ENGLISH Compatibility ....................16 Power ......................17 Input/Output Connections ................17 Dimension ....................17 Package Contents ..................17 Optional Accessories ................... 17 Others ......................17 6. Troubleshooting ....................18 7. Limited Warranty ..................... 21...

  • Page 5: Package Contents

    Make sure the following items are included in the package. Power Adapter (12V, 3A) * The power adapter will vary depending on the standard power outlet of the country TabCam where it is sold Software CD O ptional Accessories 28mm Rubber...

  • Page 6: Get Familiar With The Tabcam

    Indicate wireless signal condition, power status, battery life, and LED Light power connection mode. Label Slot Label the TabCam. Swivel Arm Fold and unfold the arm of the TabCam. Right Panel Name Function DC12V Connect the power adapter into this port to charge the battery.

  • Page 7: Control Panel

    Reconnecting to Wi-Fi router Green Flashing Green Good charge. Orange Medium charge. Low charge. The TabCam battery should be recharged soon. Very low charge. The TabCam battery should be Red Light Blinks recharged immediately. Battery is fully charged. You may unplug the power...

  • Page 8: Setting Up And Operating Tabcam

    ENGLISH S etting up and Oper ating TabCam This section provides useful tips on how to adjust the TabCam to meet your needs. Unfolding the TabCam Follow the step by step procedure below to setup the unit. (1) Unfold the arm.

  • Page 9: Advanced Deployment Criteria & Guidelines

     If you are connecting to an 802.11b/g/n wireless access point, set the 2.4 GHz Radio Mode on the device to 802.11g/n.  If you are connecting to a dual band wireless access point, confirm the TabCam can connect through the 2.4 GHz band.

  • Page 10: Set Up Tabcam Using The Qr Code

    Setting up TabCam using the QR Code Using iOS / Android App: Connecting your TabCam to the Wi-Fi network. Download the free AVer TabCam App from the Apple App Store or Google Play. (Search for TabCam). Make sure your tablet is connected to a Wi-Fi environment.
  • Page 11 Enter an acceptable username (if WPA/WPA2 Enterprise is chosen) Enter the password for this Wi-Fi network (if applicable) Select a custom name for your TabCam. On the next page, place the tablet under the TabCam as shown in the following picture. Point...
  • Page 12 *Wait approximately 20-30 seconds for scanning to complete. Scan the QR Code Connected! Upon successful connection, and the TabCam App will return to the home page and show a live preview of the connected TabCam camera. Live TabCam Select...

  • Page 13: Desktop Version

    Desktop Ver sion Firmware Upgrade Using a computer: Updating your TabCam’s firmware version. Open AVer A+ Suite software’s Device Manager and select “Advanced Settings.” Select the TabCam you wish to upgrade, press “Unlock” and key in the password(fdefault password is “admin”).
  • Page 14 ENGLISH If you key in the correct password, then TabCam’s status will change from “Locked” to “Free” and an automatic firmware version check will begin. Select “Yes” to begin downloading the latest firmware. After you download the latest firmware version, press “Firmware upgrade”...
  • Page 15 ENGLISH The firmware update has now begun. If the update is not successful, reopen your TabCam and try again. 3 0 B...

  • Page 16: Connect To A Microscope

    ENGLISH Connecting to a Microscope Connecting the TabCam to a microscope enables you to examine microscopic objects on a big screen. Change the image display mode to Microscope by selecting (camera controls) -> select Image adjustment tab -> select MODE -> Press (microscope).
  • Page 17 Attach the microscope adapter to the TabCam head. Then connect the eyepiece to the microscope. Be sure to match the latches to the holes and the arrow on the microscope adapter and TabCam head are on the same side. Connect and then twist counterclockwise to lock.

  • Page 18: Tabcam Operating Height & Angle

    ENGLISH TabCam Operating Height & Angle The approximate height of TabCam should be 336 mm and angled at 55° to display an A4 landscape size document. 90° 336 mm 90° 140 mm Paper Guide The A4 paper marks serve as a guide for placing an A4 size document under the camera.

  • Page 19: What's New

    After Auto Focus Area Focus If the image from your TabCam includes more than one subject, you can tap and hold to activate Area Focus. Area Focus allows you to identify a specific point and set it as the image’s focal point.

  • Page 20: Technical Specifications

    Operating Systems Windows XP SP3 (32-bit) Windows 7 (32/64 bit) (Computer) Mac OS X 10.6, 10.7, 10.8 Operating Systems iOS 5, 6.0.1+ (iPad2, iPad Mini, New iPad) (Tablet) Android 4.1+ Jellybean AVer Software A+ Suite, AVer TabCam App for tablet...

  • Page 21: Power

    520 x 114 x 336 mm 10.83” x 4.49” x 2.79” inches Camera Folded 275 x 114 x 71 mm Camera Weight 3.53 lbs (1.6kg) Package Contents TabCam Device 1 unit Power Adapter 1 unit SW and Quick 1 unit Guide CD...

  • Page 22: Troubleshooting

    Troubleshooting This section provides many useful tips on how to solve common problems while using TabCam. You can also test your Wi-Fi with our Wi-Fi tool to check compatibility before you use our TabCam. Please follow these steps: Connect two wireless devices (PC, iPad, or Android) to the same Wi-Fi network.
  • Page 23 9527 9528 8557 I can see my TabCam in the list, but I cannot see the live view when I select the TabCam. There may be some signal strength issues with the Wi-Fi connection. Please go through the following steps: TabCam and your computer/tablet must be within 45 feet (13m) of your Wi-Fi router.
  • Page 24 If the Wi-Fi Network Names and Passwords have not changed, please restart the Wi-Fi router and your TabCam. The battery light is flashing red frequently. Make sure you charge your TabCam with the power adapter included in your package. Battery life is estimated at 6~8 hours. I cannot upload videos to YouTube.

  • Page 25: Limited Warranty

    You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVer warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes.

  • Page 26: Limitation Of Liability

    THIS LIMITED WARRANTY, OR THE USE OR PERFORMANCE OF ANY PRODUCT, WHETHER BASED ON CONTRACT OR TORT, INCLUDING NEGLIGENCE, OR ANY OTHER LEGAL THEORY, EVEN IF AVER HAS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AVER’S TOTAL, AGGREGATE LIABILITY FOR DAMAGES OF ANY...
