Keep to Minimum
Feed Water Valve
Cold Water Line Only
Inlet-1/2" Natural
Waste Concentrate
3/8" Black
THE BASIC REVERSE OSMOSIS SYSTEM
RO Manifold Assembly: The manifold can be installed on either the right or left
side of the under-sink area or cabinet. Installation in the basement is also an
option. One possible location is near the laundry/utility sink where cold potable
water and drain access are close. The location chosen should allow adequate
clearance and accessibility for membrane element changes.
Optional Flush Kit: The flush kit, if used, should be placed within 6 feet of the
manifold assembly. This will minimize pressure drop and allow the flush system to
operate most efficiently.
In restricted under-sink areas, it may be easier to install the faucet first. Allow
adequate tubing lengths for final system placement.
Dispensing Faucet
with Air Gap
Drain Coupling
Install above P trap
Carbon Postfilter
Elbow
Connectors
Manifold

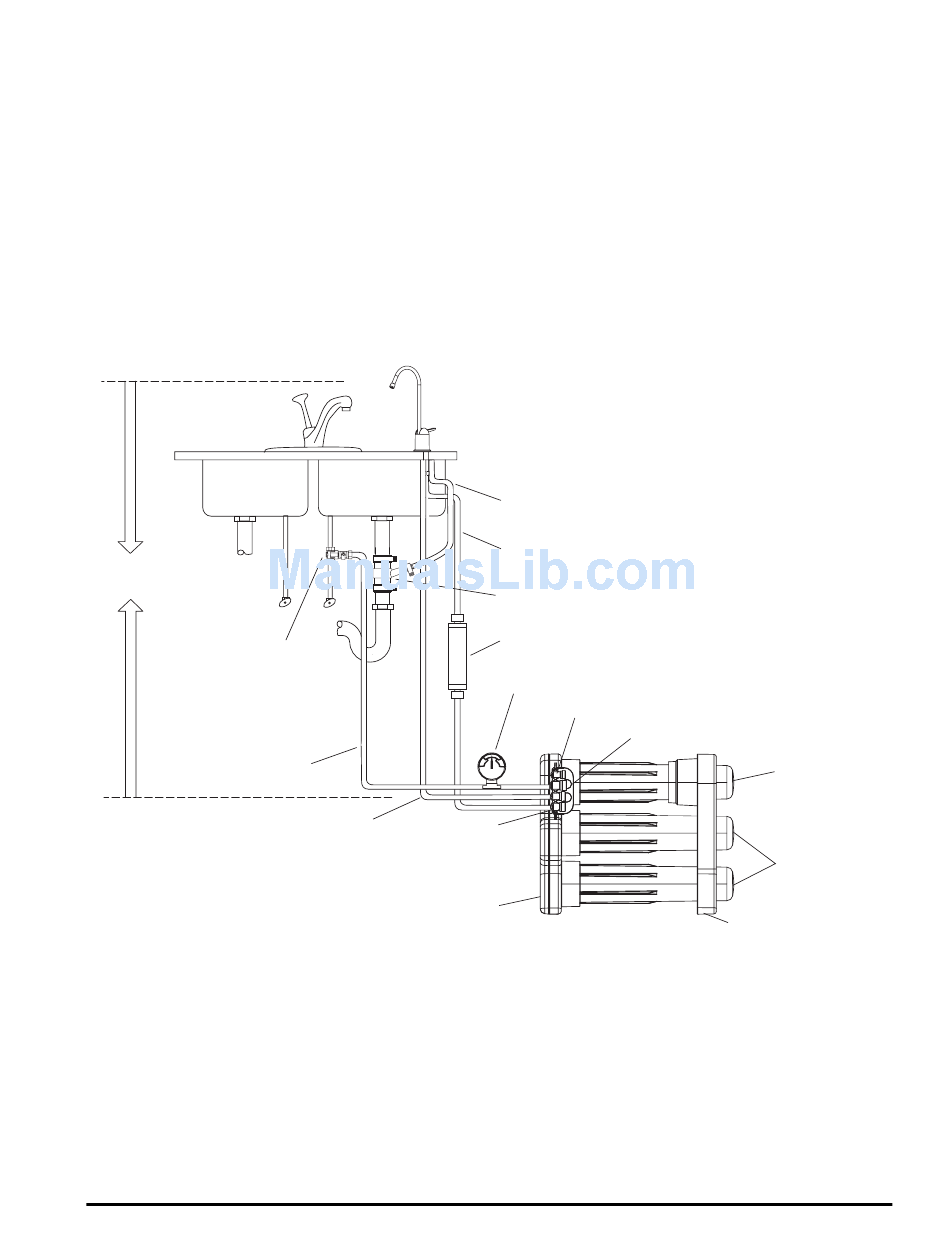

Figure 1 Typical Under-Sink Installation
Drain - 1/2" Red
Product - 3/8" Blue
Note: If a flush tank is not
Feed Pressure Gauge
Plugged Top Connector
Locking Bar
installed the manifold
connection must remain
plugged. Removal of plug
will cause a system leak.
Prefilter
RO Membranes
Support Leg (sump wrench)
Rev J
