THE BASIC REVERSE OSMOSIS SYSTEM
STEP 2: INSTALL DRAIN ADAPTER
Follow the instructions in the Appendix for installation of the Drain Boa™, if
used.
The drain adapter is designed to fit 1-1/2-inch (3.8 cm) sink drain pipe.
The adapter installs directly to the sink tailpiece.

STEP 3: INSTALL FAUCET

A. Prepare Mounting Hole
1. Select a location for the faucet. Be sure it will fit flat against the sink or
counter and that there is space underneath for tubing.
2. If drilling is needed, make a 1-1/2 inch diameter hole. If the air gap module is
not being used, a smaller diameter hole is acceptable.
WARNING: To avoid damaging a sink, consult a qualified plumber or
installer for the proper method of drilling holes in porcelain or stainless
steel.

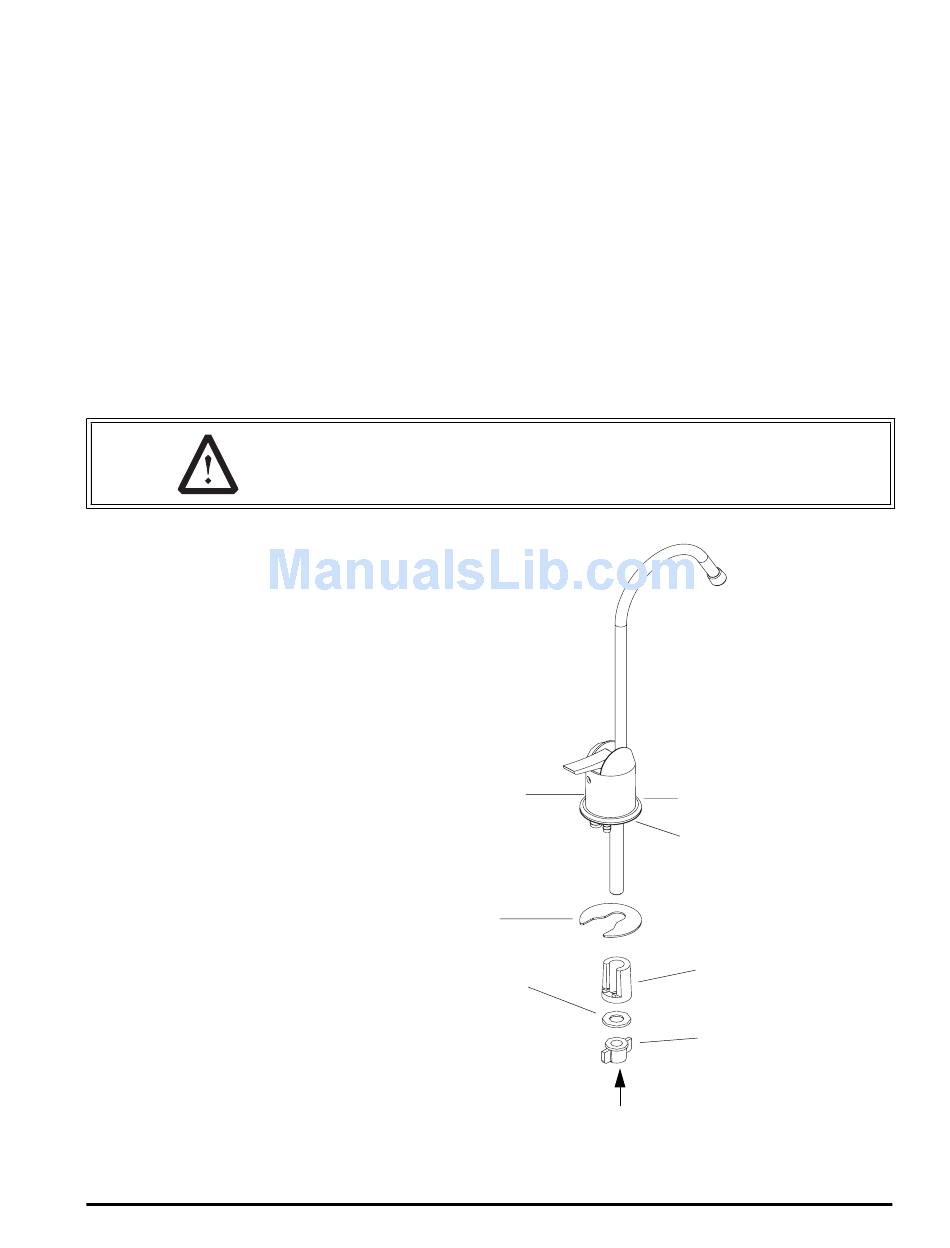

Air Gap Module
Horseshoe
Clip
Washer
Water In Connection
Trim Ring
Gasket
Standoff
Wing Nut
Figure 4
11
Rev J
