THE BASIC REVERSE OSMOSIS SYSTEM
Elbow
Connectors
Manifold
WARNING: Do not attempt to mount/hang the Merlin. Do not try to drill
mounting holes anywhere on the system. If putting above
ground/cabinet level, a sturdy, permanent shelf is recommended.

Recommended Placement Positions

The Merlin assembly should be positioned in one of two ways.
The first position is with the unit standing upright using the support leg with the
sumps horizontal. The tubing is directed to provide the best fit.
The second position, sets the unit on end so the manifold is horizontal and the
sumps are pointing up. The tubing is directed upward and the locking bar is down
to lock the tubing connections.
See illustrations at left.
The table below shows the coding system for the fitting connections. Each fitting
has a unique "keyed" socket on the manifold. Each fitting also has a graphic
symbol molded into the elbow with a corresponding symbol on the manifold.
Sumps
Support Leg

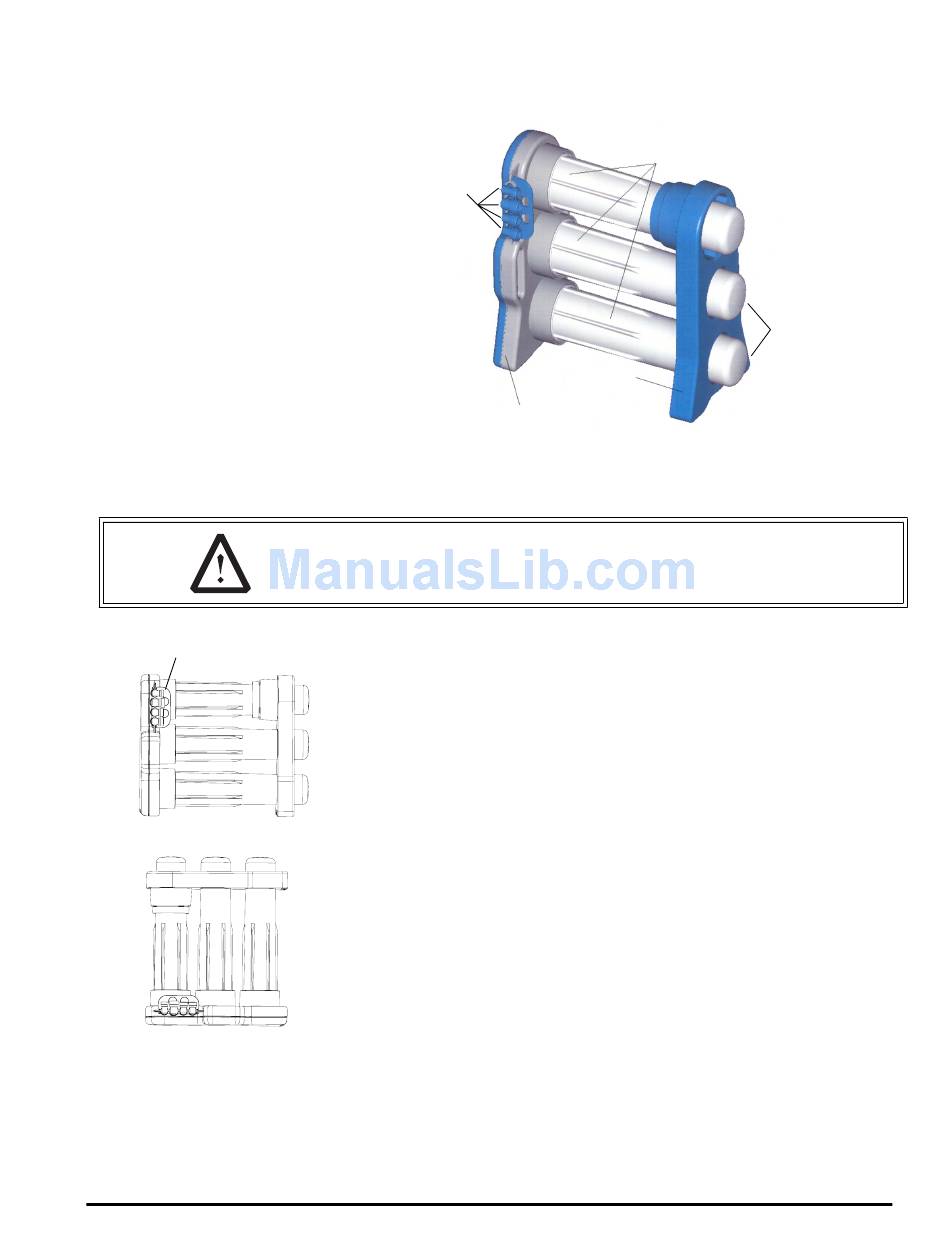

Figure 6 Merlin RO Assembly
Prefilter
RO Membranes
