CABLE CONNECTIONS

Perform the following instructions and refer to Figure 9-4 to connect the cables to the
printer.
1. Verify that the voltage shown on the printer ID label (A) is within the same range as
the site line voltage and that the proper power cord has been selected. (Refer to the
Power Requirements section.)
2. Make sure the printer power switch (B) is set to OFF (0).
3. Connect the power cord between the printer's ac power connector (C) and the ac
line receptacle.
4. Connect the interface cable (customer supplied) between the appropriate printer
interface connector (D) and the host computer. (Refer to the Interfaces chapter for
a complete description of the printer interface.)

LOADING PAPER

The P9012 printer uses standard fanfold paper from 3 to 16 inches wide and 15 to 100 lb
bond (0.025 inches thick maximum). To load paper, perform the following steps. De
tailed Paper Loading instructions are located the Operation chapter.
9-6

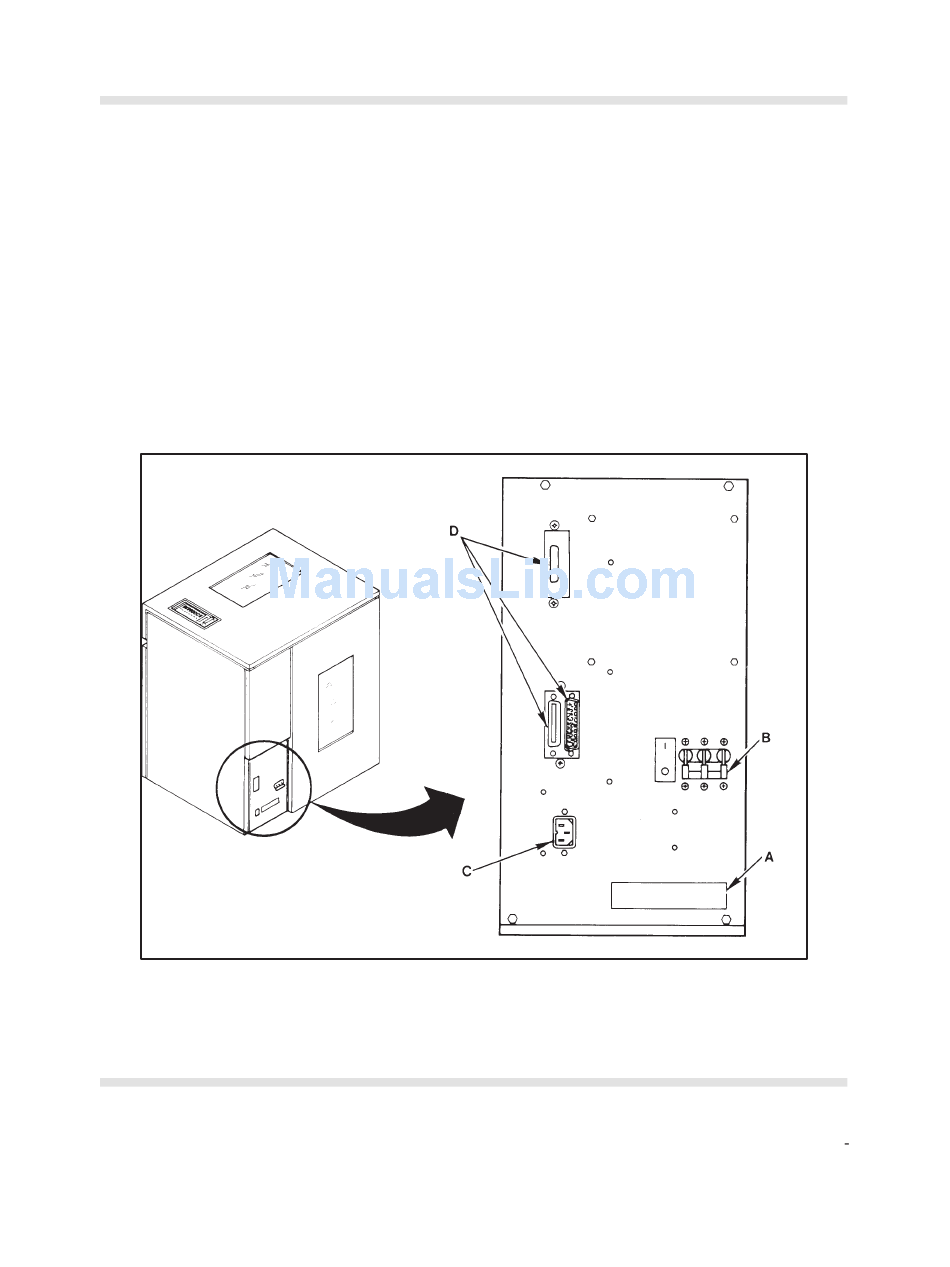

Figure 9-4. Cable Connections
P9012 Installation
