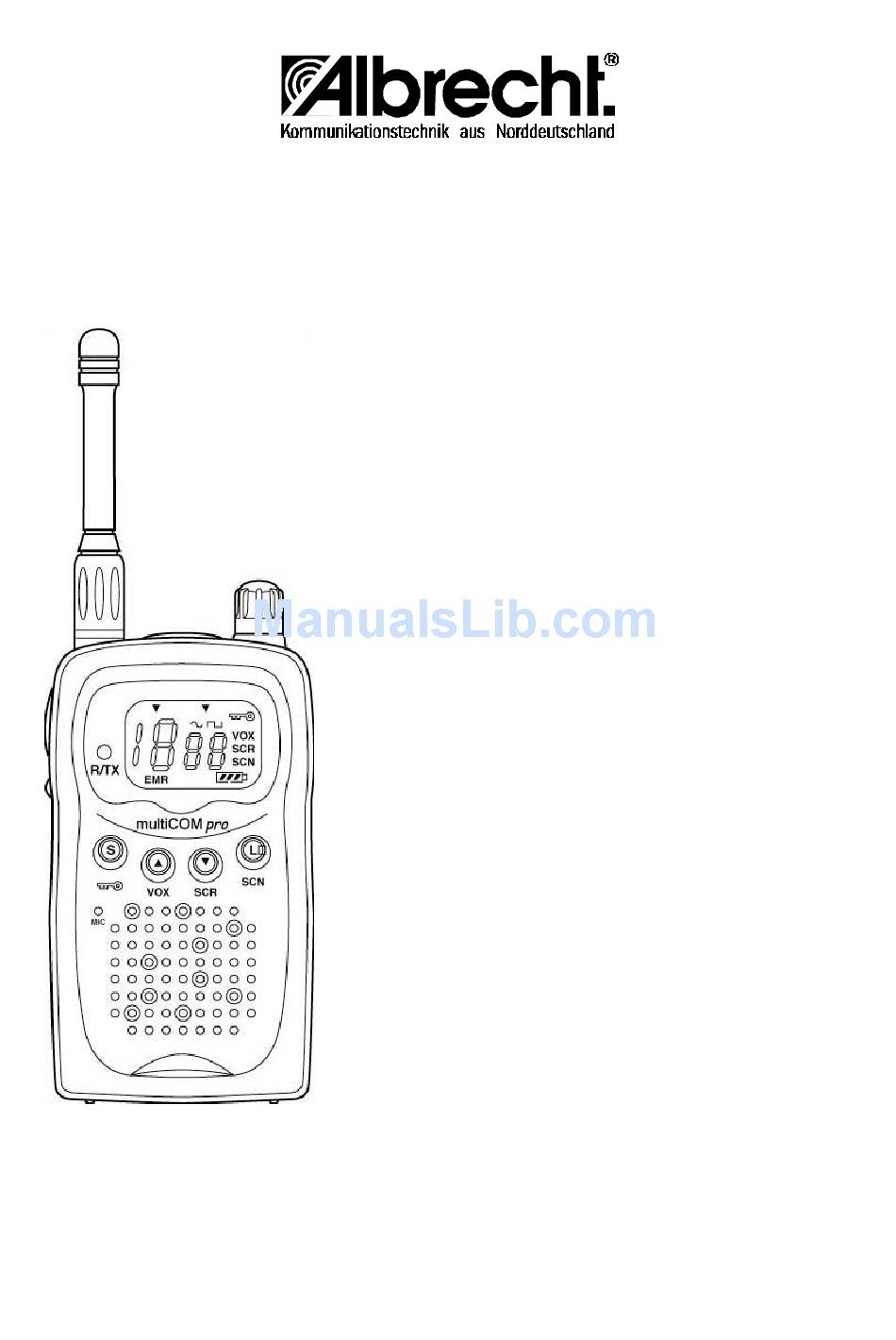

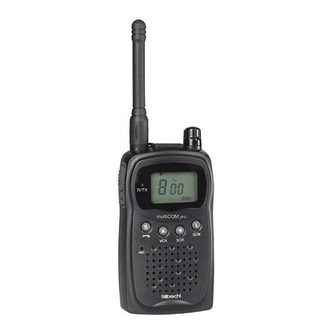

  • Page 1 Instruction Manual multiCOM pro PMR 446 2-Way-FM-Radio...

  • Page 2: Table Of Contents

    Contents Contents Getting Started Foreword Product Description Package Contents Function and Feature Display Setting up Installing the batteries Antenna Belt Clip Transceiver back side Basic Operation Turning the radio on : Turning the radio off : Setting the volume : Selecting the channel and tone code (CTCSS, DCS) To select Channel To Set Tone codes...

  • Page 3: Getting Started

    Getting Started Foreword We thank you for purchasing multiCOM pro. It is designed for ease of use and made to very high standards. It will provide many years of quality service. To get maximum benefit from multiCOM pro, Please read all instructions carefully and completely.

  • Page 4: Function And Feature Display

    Function and Feature Display Channel FLAG’ indicates channel select mode. indicates current channel number selected. (maximum channel : 8) the 'Tone' flag is on when the CTCSS or DCS is activated. indicates when the radio is in the CTCSS mode. indicates when the radio is in the DCS mode.

  • Page 5: Setting Up

    Setting up Your multiCOM pro is designed for use with four “AA” size Alkaline Batteries (not supplied) or rechargeable battery pack. When rechargeable batteries pack is installed, Please charge the batteries pack for at least 12 hours before use. New rechargeable batteries should be fully charged before use. The power to the radio must be turned off during charging.

  • Page 6: Transceiver Back Side

    Transceiver back side Antenna is fixed and cannot be removed Latch to remove battery clip Battery cover latch...

  • Page 7: Basic Operation

    Basic Operation Turning the radio on : Rotate this switch clockwise until you hear a 'click'. All indicators will appear momentarily on the display and you will hear short confirmation beep. The radio will display last mode selected. Turning the radio off : Rotate these switches counter clockwise until all indicators disappear on the display.

  • Page 8: To Set Tone Codes

    To Set Tone codes • Select the channel you want to use. • Push [s] key to change the mode, channel selection or code selection ( Flag t in the display should be above the tone code digits ) • Press up[5] or down[6] key to select desired code Note: CTCSS and DCS frequency and codes are listed in appendix.

  • Page 9: Receiving

    Receiving By Default, multiCOM pro uses CTCSS and DCS code system. The coding system reduces possibility of interference and provides enhanced communication. You can only listen to a call containing correct matching code. Important: Before making or listening to a call, always ensure •...

  • Page 10: Locking The Keypad

    Locking the keypad The lock function prevents accidental changes to channel and other radio settings. All buttons and keys will be locked except the On-Off/Volume and PTT switch. To Lock Keypad • Press and hold MON and next press Key [s] (Within two seconds). •...

  • Page 11: External Speaker - Mic

    External Speaker - Mic It is possible to connect many different external accessories to multiCOM pro e.g. • Speaker Mic Unit • Headset with VOX • Extension Speaker in 3.5mm socket • Extension mic in 2.5mm socket For optimum performance only use approved accessories only. TOT (Time Out Timer) feature This function of TOT is to prevent the unit transmitting accidentally.

  • Page 12: To Disable Scan

    During scan when a call is detected it will pause for few seconds. During this time if you press UP or Down key the unit will revert to scanning. To Disable Scan • Press and hold MON and next press Key [ L ] (Within two seconds). •...

  • Page 13: Vox (Voice Operated Switching)

    VOX (Voice Operated Switching) This option enables you to have handsfree conversation. You no longer need to operate the PTT button each time you want to speak. When using the external mic or headset, your voice or the signal is detected and radio transmits automatically.

  • Page 14: Other Functions

    Other Functions Customisation multiCOM pro has many features and function that can be customised for special applications. Customisation is only possible by programming unit with Standard PC serial port. This is done by using programming cable (not supplied) and the programming software (DOS, works also with Win 95/98). Please contact your supplier or Authorised agent for details.

  • Page 15: Fixed Single Tone Setting

    Fixed Single Tone Setting Each of 8 channels can be programmed to have one of CTCSS( 38) or DCS (83) code fixed. The user will not be able to change this code by keypad Channel 3 with CTCSS tone Code 28 selected Memory Operation Each of 8 channels can be programmed to have up to 5 memory settings of different combination of CTCSS and DCS codes...

  • Page 16: Ctcss Tones Only

    CTCSS tones only Each of 8 channels can be programmed so that user can only select one of 38 CTCSS tones. Channel 3 with CTCSS tone Code 28 selected DCS tones only Each of 8 channels can be programmed so that user can only select one of 83 DCS tones.

  • Page 17: Ctcss (38) And Dcs (83) - [Default Setting For All The Channels]

    CTCSS (38) and DCS (83) – [default setting for all the channels] Each of 8 channels can be programmed such that user can select one of CTCSS (38) or DCS (83) code. Total of 121 combinations per channel. Channel 3 with DCS tone Code 01 selected To Select Tone codes •...

  • Page 18: Important Safety Informations

    Important Safety Informations Operating Environments • Never operate radio very close or touching to exposed parts of the body. • Avoid conditions, which subject radio to shock and extreme vibrations. • If possible, refrain using this radio under the direct rays of the sun and around the high humid area.

  • Page 19: Technical Specifications

    Technical Specifications General Frequency Range : 446.00625 to 446.09375MHz Channels : 8CH Channel spacing : 12.5kHz Communications : Simplex Modulation System : F3E Antenna Type : Fixed Helical Antenna Audio Output : 0.4W or more (16Ù) Operation Temp. Range : -20degC ~ +55degC Power Source : Ni-cd (4.8V DC) or : Alkaline(6V D.C) batteries...

  • Page 20: Tone Code Tables

    Tone Code Tables DCS-Codes Number DCS-Code Number DCS-Code Number DCS-Code...

  • Page 21: Ctcss-Tones

    203.5 85.4 131.8 210.7 88.5 136.5 218.1 91.5 141.3 225.7 94.8 146.2 233.6 97.4 151.4 241.8 100.0 156.7 250.3 © Albrecht Electronic GmbH 1999 Dovenkamp 11 D- 22952 Lütjensee http://www.albrecht-online.de Service-Hotline: 04154 849 180 Service-Fax: 04154 849 288 E-mail: service@albrecht-online.de...
