Connecting The Cs8500-T - Command Communications ComSwitch 8500-t Operator's Manual

The CS8500-t can be placed on either a flat surface, or
mounted on a wall with the connected telephone line cords
above or below the unit. To mount on a wall, follow these
steps:
Mark the positions for 2 mounting screws (not supplied) on
the wall. The positions should be 3 1/4" apart (vertically).
Drill the 2 holes, and then thread the screws into the wall.
The screws should extend 3/16". Do not over tighten the
screws.

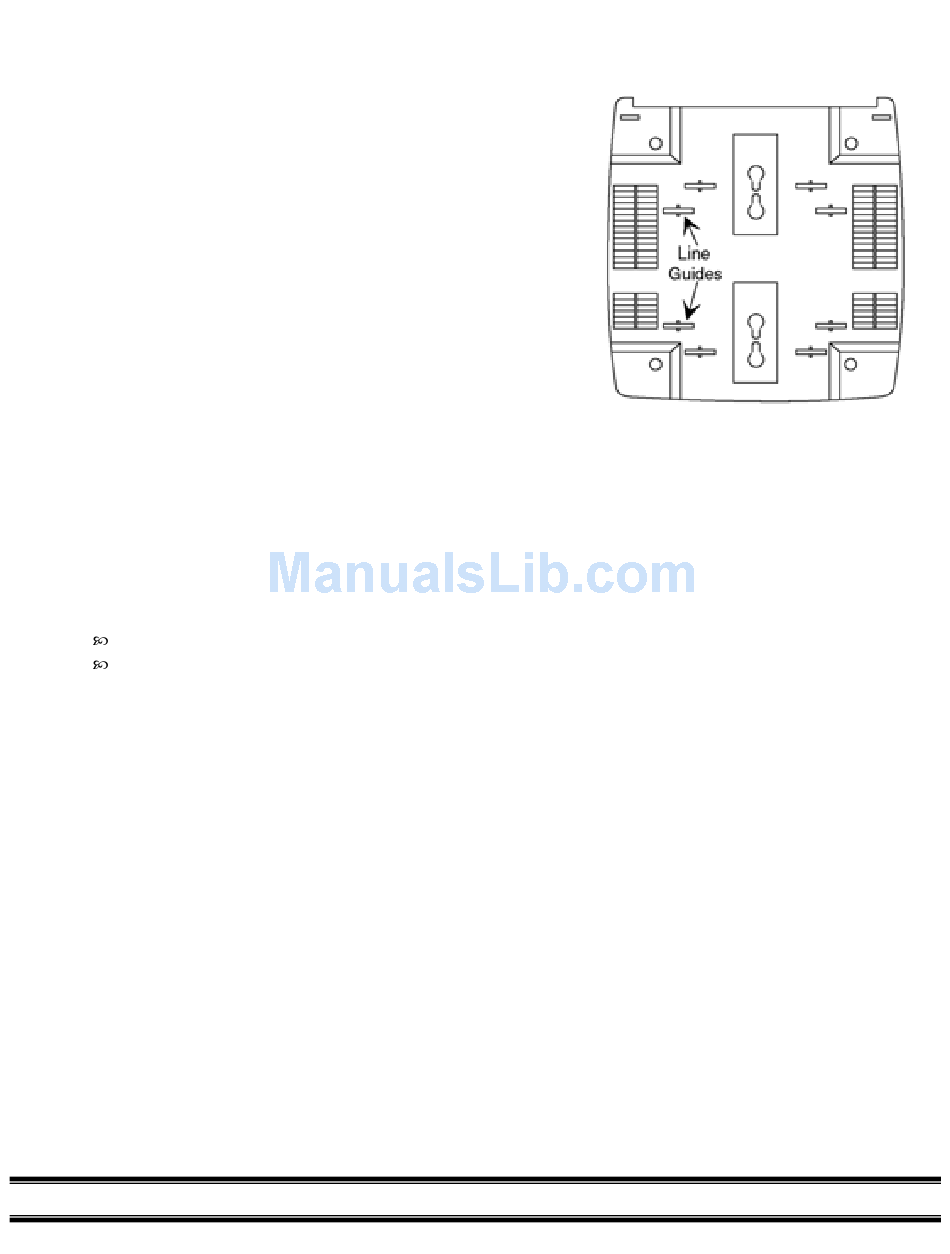

Align the keyholes on the back of the CS8500-t with the 2
screws, then push in and press down to secure it to the wall.
You can place the telephone line cords through the line
guides on the back of the CS8500-t to reduce tangling.

Connecting the CS8500-t

This section explains how to install the CS8500-t in most phone configurations that appear in a home or
office. You can install the CS8500-t into one of the following phone configurations:
1 or 2-line telephones (see pages 6 - 9)
KSU/PBX Installation (see pages 9, 10)
To perform the installation procedures, you may need the following equipment:
Extension cords--required if the connecting equipment is not located near the CS8500-t.
Additional telephone line cords -- typically supplied with equipment by the manufacturer.
NOTE: If the equipment manufacturer does not provide the required cables, you can purchase them at a
consumer electronics store.
NOTE: Do not place the CS8500-t in close proximity to any peripheral equipment (approximately 2 to 3
feet away from all electronic equipment).
5
CS8500-t Operator's Guid
