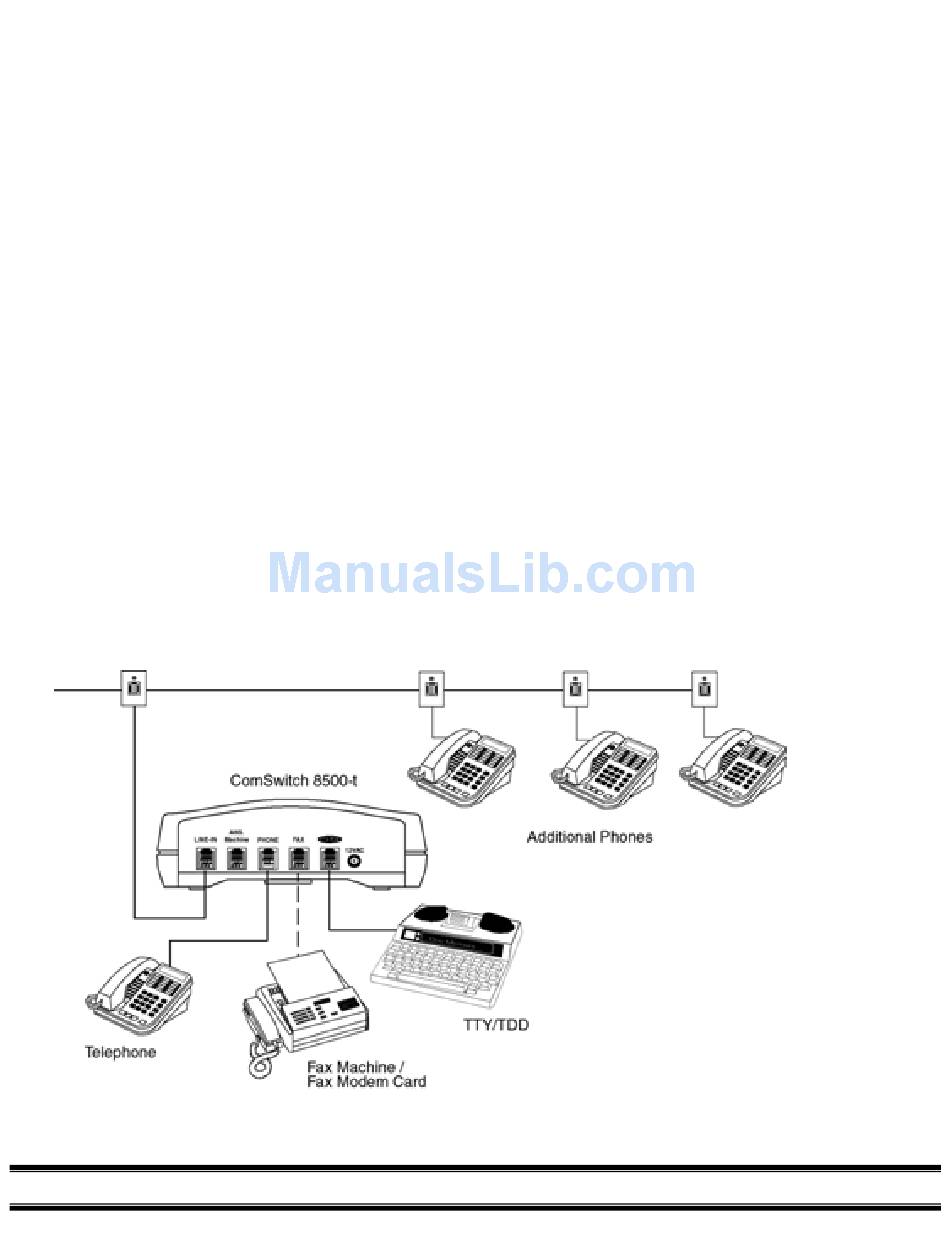

One Line/Multiple Telephone Extensions

Plug one end of the provided 2-wire modular line cord into the LINE-IN port on the CS8500-t. Plug the
other end of the modular line cord into the telephone (wall) jack. Plug the small end of the AC power cord
provided with the CS8500-t into the power input port labeled "12 VAC" on the CS8500-t. Plug the
adapter into a standard AC outlet.
The green LED flashes for approximately 5 seconds when power is applied and then remains illuminated,
indicating its ON status.
1. To connect a TTY/TDD device, plug one end of a modular line cord into the TTY/TDD port on
the CS8500-t. Plug the other end to the line port of the TTY/TDD.
2. To connect an answering machine, plug one end of a modular line cord into the ANS. MACHINE
port on the CS8500-t. Plug the other end to the line port of the answering machine.
3. To connect a phone, plug one end of a modular line cord into the PHONE port on the CS8500-t.
4. To connect a fax machine, plug one end of a modular line cord into the FAX port on the CS8500-t.
Plug the other end to the line port of the fax machine.
NOTE: Set the TTY/TDD to answer on lowest rings possible or set for manual answer and answer when
the TTY/TDD rings.
