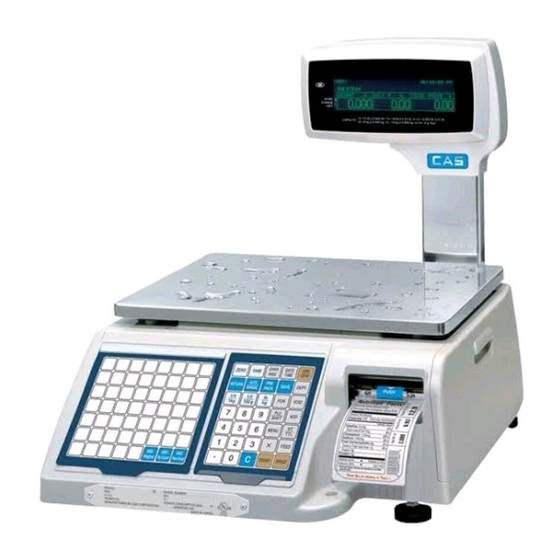

CAS LP-II Network Manual

Electronic price computing label/receipt printing scale
Hide thumbs Also See for LP-II:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Owner's Manual
LP-II
Electronic Price Computing
Label/Receipt Printing Scale
REV: 2.00 Jan. 2002
®
2001, CAS
(USA) C
E
R
, N
J
07073
ORPORATION
AST
UTHERFORD
EW
ERSEY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP-II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CAS LP-II

Summary of Contents for CAS LP-II

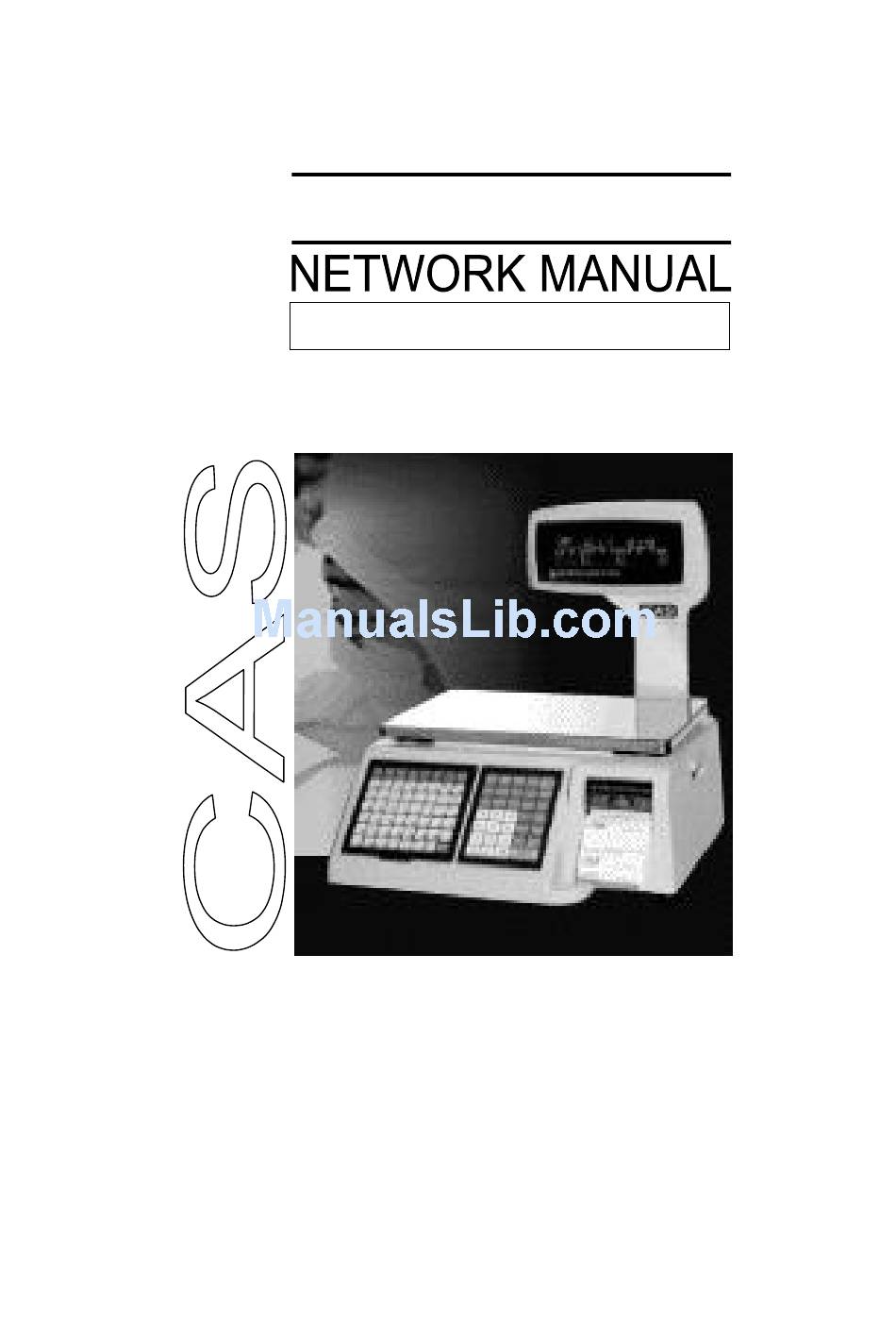

  • Page 1 LP-II Electronic Price Computing Label/Receipt Printing Scale REV: 2.00 Jan. 2002 ® 2001, CAS (USA) C 07073 ORPORATION UTHERFORD ERSEY...
  • Page 2 Attention: Copyright 2001, by CAS Corporation. All rights reserved. No part of this publication may be © reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior expressed written permission of this company.

  • Page 3: Table Of Contents

    ABLE ONTENTS PAGE 1 Network Installation..........................1 1.1 Installing the Network Memory Card ..................1 1.2 Interface............................2 1.2.1 PC master Ethernet connection..................2 1.2.2 Scale master Ethernet connection with PC(RS232C)............. 3 1.2.3 Scale master Ethernet connection without PC ............... 4 1.3 Wire configuration ..........................

  • Page 4: Network Installation

    1 Network Installation 1 Network Installation 1.1 Installing the Network Memory Card 1. Make sure that the Main Power switch is OFF & that the scale is unplugged. 2. Remove the keyboard: A. Remove the 2 keyboard screws on top of the upper case. B.

  • Page 5: Interface

    1 Network Installation 1.2 Interface 1.2.1 PC master Ethernet connection Slave Slave Slave Slave Slave PC(Master) NOTE: Only 31 scales can be connected in this method. PC must have Ethernet card. Master scale number(#1) cannot be used. 1. Scale number(for slave) : 2~32 2.

  • Page 6: Scale Master Ethernet Connection With Pc(Rs232C)

    1 Network Installation 1.2.2 Scale master Ethernet connection with PC(RS232C) Master Slave Slave Slave NOTE: Only 32 scales can be connected in this method. 1. Scale number(for master) : 1 2. Scale number(for slave) : 2~32 3. PC master setting : No (refer to 1.4 Network Mode Settings - CAL Mode) 4.

  • Page 7: Scale Master Ethernet Connection Without Pc

    1 Network Installation 1.2.3 Scale master Ethernet connection without PC Slave Slave Slave Slave Master NOTE: Only 32 scales can be connected in this method. 1. Scale number(for master) : 1 2. Scale number(for slave) : 2~32 3. PC master setting : No (refer to 1.4 Network Mode Settings - CAL Mode) 4.

  • Page 8: Wire Configuration

    1 Network Installation 1.3 Wire configuration 1.3.1 Ethernet wire – straight cable and crossover cable NOTE: Twisted pair Category-5 (UTP) cable with RJ45 Plug Straight connection Crossover connection Scale 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 RJ-45...

  • Page 9: Network Mode Settings - Cal Mode

    1 Network Installation Network is Used? Network Options (nEt ) PC master is Used? (PC - MAS) Clerk mode(0-2): (FLt-Md) This Scale is number : (SCALE) 1.4 Network Mode Settings - CAL Mode NUMERIC Enter the CAL Mode : refer to <...
  • Page 10 1 Network Installation NUMERIC Once at the CAL : NETWORK ( 1/ 2) < CAL: NETWORK OPTIONS > OPTIONS screen, press the Y key for PC Master Options. Network Options screen will then Scale IP Address :[192.168.0.1 appear as follows: Sub Net Mask :[255.255.0.0 All options have default value.

  • Page 11: Network Considerations

    3. The network can run with a Master scale and no Mirror Master. 4. If you run into any trouble, please contact the CAS Service Department. We have on-staff network specialists that can assist you if you run into any trouble or need to exceed network specifications.

  • Page 12: Network Management - Program Mode

    The scale number is a unique identifier for networking. SEttinG There can only be 32 scales a CAS NET(Network). Each scale must have a unique number; therefore, no two scales may share the same id. Scale 1 is the Master scale. Scale numbers 2 through 32 are slaves. You can either...
  • Page 13 3 Floating Clerk OVR/CAPS Scale mode setting menu screen, < NET : NETWORK MODE > press the 1 key. The Clerk Mode Setting option allows Network Is Used? (Y/N): [Y] you to choose the type of clerk This scale is number: [ 1] system you wish to use.
  • Page 14 3 Floating Clerk P012- 1 CUStoM Use Custom Number?: If this options is selected, Custom number is used after each transaction. P012- 2 oFF-tr Auto logoff Each Transaction: If this option is selected, the clerk log off after each transaction. P012- 3 Prt –...

  • Page 15: Network Copy

    3 Floating Clerk 2.2 Network Copy Once at the NET : NETWORK MANAGEMENT menu screen, press the 2 key. You will then see the Network Copy screen as follows: This copy function is to copy data < NET : COPY DATA > files from one scale to another on a network.
  • Page 16 3 Floating Clerk NUMERIC To copy PLU data, press the 2 key < NET: COPY PLUs > from the NET: COPY DATA screen. The display will change to the To Scale Number: [ 3] (0=ALL) NET: COPY PLUs screen: Start Dept Number: [ 1] Bakery Departm PLU Number:[...
  • Page 17 3 Floating Clerk To copy other data, press the 3 key from the NET : COPY DATA screen. The display will change to the NET : COPY PLUs screen: < NET: COPY GLOBAL DATA > 1. All 6. Scroll Messages 2.

  • Page 18: Plu Delete

    3 Floating Clerk the scale will simply prompt you “Are you sure (Y/N)?” and if you press Y then all of the items from the Master will be copied to the target scale or scales. Once you have entered all of the required data, press the SAVE key or press the ENTER key while the cursor is on the last field in order to initiate the data copy.

  • Page 19: Lock Network

    3 Floating Clerk P03 - 2 S dEPt Select Start Department number for the PLU deletion P03 - 3 S PLU Select Start PLU number for the PLU deletion P03 - 4 E dEPt Select End Department number for the PLU deletion P03 - 5 E PLU Select End PLU number for the PLU deletion...

  • Page 20: Unlock Network

    Master scale. If you have a scale that is Network Locked and you cannot unlock it through the master, please contact your Authorized CAS Dealer for service. You may have a network hardware problem, or a scale hardware problem. Scale oneself lock/unlock : if you press ALT and 1 key in any program mode, lock command is sent oneself.

  • Page 21: Floating Clerk

    3 Floating Clerk 3 Floating Clerk 3.1 Networked Floating Clerk Option When using floating clerk mode, make sure that the SAVE, AUTO, and PRE-PACK are off. Also, make sure that you have not begun an ADD-UP transaction. Generating a floating clerk transaction is the same as any sales mode transaction except that you do NOT press the PRINT key;...

  • Page 22: Non-Networked Floating Clerk Option

    3 Floating Clerk 3.2 Networked Standard Clerk Option When using Standard clerk mode, make sure that the SAVE, AUTO, VOID and PRE-PACK are off. Also, make sure that you have not begun an ADD-UP transaction. Generating a floating clerk transaction is the same as any sales mode transaction;...
  • Page 23 3 Floating Clerk However, after selecting your clerk number, item that be sold recently is voided in 7-segment VFD version. You will see the following screen. 0.00 0.00 0.00 If you select YES in graphic version, then you will see the following screen: Select the number of the item from the previous screen that you wish <...

  • Page 24: Appendix : Network Connection Example

    APPENDIX : Network APPENDIX : Network connection example PC Master Type Crossover cable Straignt through cable PC(Master) Slave Slave Slave Slave Slave Slave Slave Slave Slave Slave Slave Slave...
  • Page 25 APPENDIX : Network Scale Master Type with PC Master RS-232C cable Straignt cable Crossover cable Slave Slave Slave Slave Slave Slave Slave Slave Slave Slave Slave Slave...
