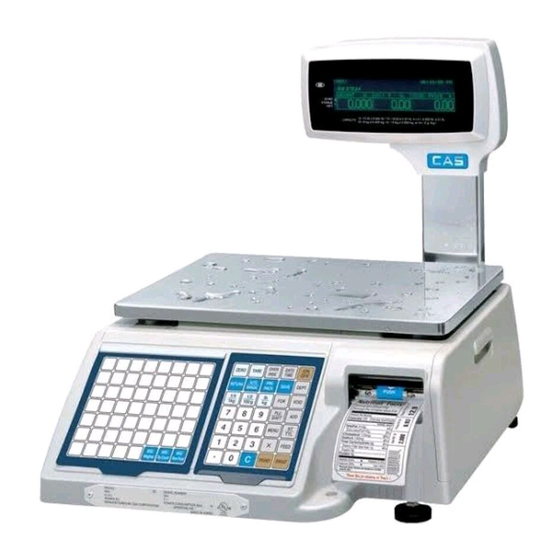

CAS LP-II Network Manual

Electronic price computing label/receipt printing scale
Hide thumbs Also See for LP-II:
Table of Contents

Advertisement

Quick Links

Download this manual

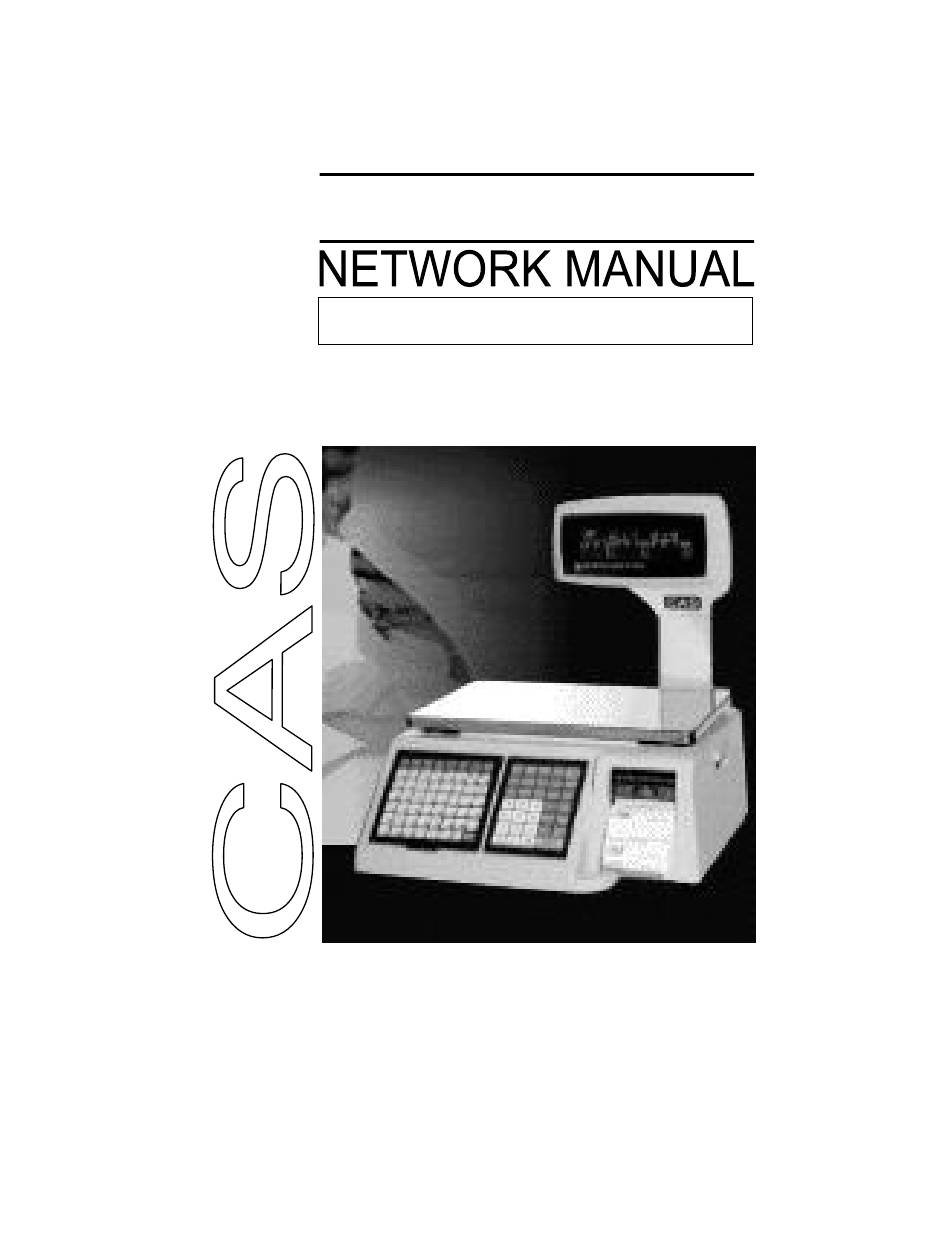

LP-II
Electronic Price Computing
Label/Receipt Printing Scale
REV: 3.0 Nov. 2006
®
2001, CAS
(USA) C
E
R
, N
J
07073
ORPORATION
AST
UTHERFORD
EW
ERSEY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP-II and is the answer not in the manual?

Questions and answers

Related Manuals for CAS LP-II

Summary of Contents for CAS LP-II

  • Page 1 LP-II Electronic Price Computing Label/Receipt Printing Scale REV: 3.0 Nov. 2006 ® 2001, CAS (USA) C 07073 ORPORATION UTHERFORD ERSEY...
  • Page 3 Attention: Copyright 2006, by CAS Corporation. All rights reserved. No part of this publication may be © reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior expressed written permission of this company.

  • Page 4: Table Of Contents

    ABLE ONTENTS PAGE 1 Network Installation 1.1 Installing the Network Card....................1 1.2 Network Considerations....................1 1.3 Interfacing.........................2 1.3.1 PC Master Hard-Wired or Wireless Ethernet Connection..........2 1.3.2 Scale Master Ethernet Connection with PC...............4 1.3.3 Scale Master Ethernet Connection without PC............5 1.4 Wire Configuration......................6 1.4.1 Ethernet Wire-Straight Cable and Crossover Cable..........6 1.5 Installing the Slave Scales (#2-32)..................7 1.6 Installing the Master Scale (#1)..................7...

  • Page 5: Network Installation

    3. The network can run with a Master scale and no Mirror Master. 4. If you run into any trouble, please contact the CAS Service Department. We have on-staff network specialists that can assist you if you run into any trouble or need to...

  • Page 6: Interfacing

    2. PC Master is Used: Yes 3. This Scale is Number (the scales can be given any number from 2-999). NOTE: LP-II Manager only defaults to 5 scales. To add additional scales, Click on the Data Icon in Manager and go to “Scales.”...
  • Page 7 1 Network Installation 6. Gateway: This is used only for external communication, and since we strongly recommend these scales be set up on NUMERIC a dedicated network, this setting is not ( 1/ 2) < CAL: NETWORK OPTIONS > used 7.

  • Page 8: Scale Master Ethernet Connection With Pc

    1 Network Installation 1.3.2 Scale Master Ethernet Connection with PC (RS232C) Master Slave Slave Slave NOTE: Only 32 scales can be connected in this method. IN the Manager Program, go to Config and select Scale Master (RS-232C) 1. Scale number (for master) : 1 2.

  • Page 9: Scale Master Ethernet Connection Without Pc

    1 Network Installation 1.3.3 Scale Master Ethernet Connection without PC Slave Slave Slave Slave Master NOTE: Only 32 scales can be connected in this method. 1. Scale number(for master) : 1 2. Scale number(for slave) : 2~32 3. PC master setting : No (refer to Error! Reference source not found.

  • Page 10: Wire Configuration

    1 Network Installation 1.4 Wire configuration 1.4.1 Ethernet wire – straight cable and crossover cable NOTE: Twisted pair Category-5 (UTP) cable with RJ45 Plug Straight connection Crossover connection Scale 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 RJ-45...

  • Page 11: Installing The Slave Scales (#2-32)

    1 Network Installation 1.5 Installing the Slave Scales (#2 -32) 1. Install slave scale in its final location. 2. (Optional) Span calibrate the scale and go to REG mode when done. 3. Follow all of the directions for section 1.1 Installing the Network Memory Card. 4.

  • Page 12: Network Management-Program Mode

    The Network Setting option allows you to change the scale’s number. The scale number is a unique identifier for networking. There can be 32 scales on a CAS NETWORK. Each scale must have a unique number; therefore, no two scales may share the same id. Scale 1 is the Master scale. Scale numbers 2 through 32 are slaves.

  • Page 13: Network Copy

    2 Network Management 2.2 Network Copy Once at the NET : NETWORK MANAGEMENT menu screen, press the 2 key. You will then see the Network Copy screen as follows: This copy function is to copy data < NET : COPY DATA > files from one scale to another on a network.
  • Page 14 2 Network Management NUMERIC To copy PLU data, press the 2 key < NET: COPY PLUs > from the NET: COPY DATA screen. The display will change to the To Scale Number: [ 3] (0=ALL) NET: COPY PLUs screen: Start Dept Number: [ 1] DEPT 1 PLU Number:...

  • Page 15: Plu Delete

    2 Network Management The Start Item Number is (in this case) the starting Department and the End Item Number is the ending department. They comprise the range of departments to be copied into the target scale listed in the To Scale Number field. So, whether it’s Department, Store Data, or Label Formats, the Item Number fields represent the range of that particular which you are going to copy.

  • Page 16: Lock Network

    2 Network Management 2.4 Lock Network Once at the NET: NETWORK MANAGEMENT menu screen, press the 4 key. The scale will place the LOCK command on the network queue and wait for you to return to <REG> mode. To return to <REG> mode, press ESC until you get to <REG>...

  • Page 17: Unlock Network

    Master scale. If you have a scale that is Network Locked and you cannot unlock it through the master, please contact your Authorized CAS Dealer for service. You may have a network hardware problem, or a scale hardware problem. Scale oneself lock/unlock : if you press ALT and 1 key in any program mode, lock command is sent to oneself.

  • Page 18: Clerks

    3 Clerks 3 Clerks 3.1 Networked Floating Clerk Option When using floating clerk mode, make sure that the SAVE, AUTO, and PRE-PACK are off. Also, make sure that you have not begun an ADD-UP transaction. Generating a floating clerk transaction is the same as any sales mode transaction except that you do NOT press the PRINT key;...

  • Page 19: Networked Standard Clerk Option

    3 Clerks 3.2 Networked Standard Clerk Option When using Standard clerk mode, make sure that the SAVE, AUTO, VOID and PRE-PACK are off. Also, make sure that you have not begun an ADD-UP transaction. Generating a floating clerk transaction is the same as any sales mode transaction;...
  • Page 20 3 Clerks If you select YES in graphic version, then you will see the following screen: Select the number of the item from the previous screen that you wish < Select Void Number > to VOID and then press the PRINT key.
  • Page 21 3 Clerks...

  • Page 22: Pinging

    4 Pinging 4 Checking an Address-Pinging 4.1 To Ping an IP Address 1. Make sure that you have a crossover cable connected from the PC to either the scale, a router, or the wireless bridge, depending on what you want to test. 2.

  • Page 23: Appendix B-Network Connection Example-Scale Master Type

    4 Pinging...

  • Page 24: Appendix

    Appendix...
  • Page 25 Appendix PC Master Type Crossover cable Straignt through cable PC(Master) Slave Slave Slave Slave Slave Slave Slave Slave Slave Slave Slave Slave...
  • Page 26 Error! Reference source not found.
  • Page 27 Error! Reference source not found. Scale Master Type with PC Master RS-232C cable Straignt cable Crossover cable Slave Slave Slave Slave Slave Slave Slave Slave Slave Slave Slave Slave...
