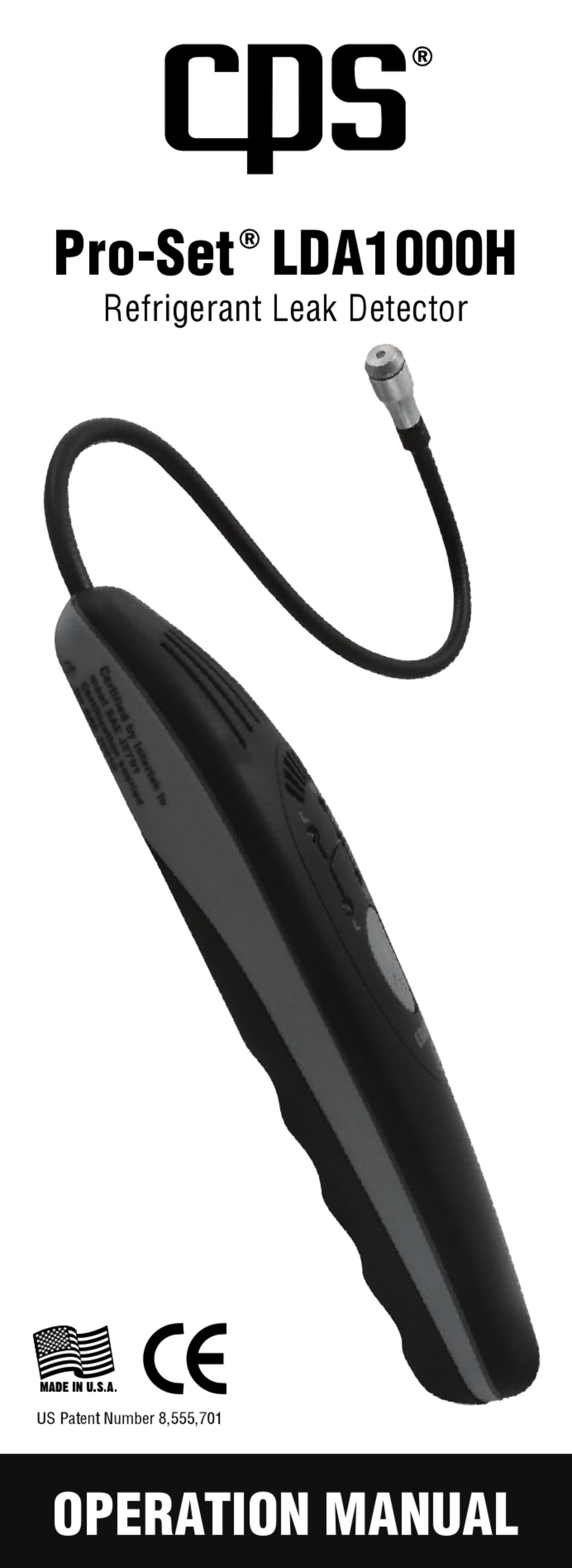

- Page 1 Pro-Set LDA1000H Refrigerant Leak Detector US Patent Number 8,555,701 OPERATION MANUAL...
- Page 2 GENERAL INFORMATION Table of Contents General Information Introduction LDA1000H Overview LDA1000H Specifications Operation Using the LDA1000H Searching for Leaks Automotive Chemical Sensitivity Chart Maintenance Sensor Replacement Diagram Warranty Introduction Flexible metal probe: 15" (380mm) long, .25" (6.4mm) diameter. High output Blue LED'S alarm speaker.
- Page 3 J2791 and J2913, which can be removed and cleaned if the opening gets clogged with dirt. In areas where humidity is high, the patented CPS Water Vapor Filter cap is recommended to eliminate false alarms. One LS2VF water vapor filter cap is included with the LDA1000H.
- Page 4 GENERAL INFORMATION LDA1000H Specifications Sensor: State of the art E_MOS technology ® Gases: Sensitive to CFC, HCFC, HFC and HFO refrigerants. Sensitive to the Hydrogen trace gas in 95% N2, 5% H2 mixture. Sensitive to NH3 and HC refrigerants. CAUTION: This leak detector is not intrinsically safe.
- Page 5 OPERATION Using the LDA1000H Turning the instrument ON: Press the red START button once to turn the unit ON. The instru- ment initiates a sensor self-cleaning and conditioning cycle which lasts for 35 seconds. During that time, the bar graph indicator lights scan from left to right.
- Page 6 OPERATION Windy conditions: Locating leaks under windy conditions may severely impede the leak searching process. Even very large leaks may be dif- ficult to locate as the escaping gas is quickly dissipated into the atmosphere. If necessary, fabricate a gas trap using aluminum foil around joints or fittings or otherwise shield the search area from the wind.
- Page 7 OPERATION 5. Always follow the refrigerant system around in a continuous path so that no areas of potential leaks are missed. If a leak is found, always continue to test the remainder of the system. 6. Recheck service valves with caps removed. Blow shop air over the service valves to clear immediate area, and then check with detector on 7 g / yr setting.
- Page 8 OPERATION Chemical Sensitivity Chart for R-134a Clears in < Automotive Chemical Sensitivity 30 seconds Ford spot and stain remover. Ford rust penetrant and inhibitor Ford gasket and trim adhesive Ford brake parts cleaner Ford clear silicone rubber uncured Motorcraft G-05 anti-freeze colant heated to 160˚F Ford pumice / lotion hand cleaner Motorcraft DOT3 brake fluid...
- Page 9 OPERATION Chemical Sensitivity Chart for HFO-1234yf Clears in < Automotive Chemical Sensitivity 30 seconds Ford spot and stain remover. Ford rust penetrant and inhibitor Ford gasket and trim adhesive Ford brake parts cleaner Ford clear silicone rubber — uncured Motorcraft G-05 anti-freeze colant heated to 160˚F Ford pumice / lotion hand cleaner Motorcraft DOT3 brake fluid...
- Page 10 OPERATION Maintenance With a sensor life of more than 500 hours and a battery life of over 50 hours, very little maintenance is required to keep the LDA1000H in top operating conditions. Below are the proper procedures to follow when changing batteries and sensors. Low battery indication: When the batteries reach approximately 10% of capacity, the green LED next to the symbol (...
- Page 11 OPERATION Sensor Replacement Diagram Replacement Parts EMOS2 Replacement EMOS sensor LS2XVF Water vapor filter...
- Page 12 CPS Products, Inc. CPS Products, Inc. U.S.A. (Headquarters) 1010 East 31st Street, Hialeah, Florida 33013, USA Tel: 305-687-4121, 1-800-277-3808, Fax: 305-687-3743 E-mail: info@cpsproducts.com...
- Page 13 NOTES...
- Page 14 www.cpsproducts.com #73-358 Rev. C...
