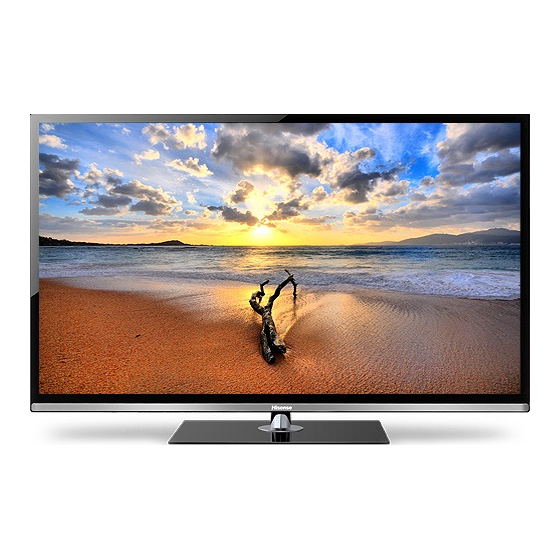

Hisense k560 User Manual
Hide thumbs Also See for k560:

Advertisement

FCC Statement

NOTE:
This equipment has been tested and found to comply with
the limits for a class B digital Device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio Communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the
receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
FCC ID Number WiFi Module: WWMMN421V1
Hisense and associated logos where applicable are registered trademarks of Hisense Group in the United States and/or other
countries. All other trademarks are property of their respective owners. 2011 Hisense USA, Corporation. All Rights Reserved.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
owners.
The lightning flash with arrowhead symbol, within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING
The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to
this equipment. Such modifications could void the user's
authority.
NOTE
Where the MAINS plug or an appliance coupler is used
as the disconnect device, the disconnect device shall
remain readily operable.
TM
) technology.
trademarks or registered trademarks of HDMI Licensing LLC.
I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the k560 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hisense k560

  • Page 1: Fcc Statement

    HDMI Licensing LLC. Hisense and associated logos where applicable are registered trademarks of Hisense Group in the United States and/or other countries. All other trademarks are property of their respective owners. 2011 Hisense USA, Corporation. All Rights Reserved.
  • Page 3 Important Safety Instructions 1. Read these instructions. 19. If an outside antenna or cable system is connected to the 2. Keep these instructions. unit, be sure the antenna or cable system is grounded to 3. Heed all warnings. provide some protection against voltage surges and built- 4.
  • Page 4: Power Source

    Important Safety Instructions End of life directives HOW TO HANDLE THE LCD PANEL: Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur. Your TV also contains material that can be recycled and If the LCD panel is broken, make absolutely sure that you reused.
  • Page 5 (including loss of data, revenue, profits or other economic advantage) however arising, whether for breach administrator for information and assistance. or in tort even if HISENSE has previously advised of the Liability: The Hi-Smart portal may be linked to other possibility of such possible damage.
  • Page 6: Table Of Contents

    Contents Getting Started Accessories List....................3 Installing the Stand ..................3 Installing a Wall-Mount Bracket ............... 4 When Installing the TV Against a Wall or Enclosed Area ........ 5 Viewing the Control Panel ................6 Viewing the Remote Control ................7 Installing Batteries in the Remote Control ............
  • Page 7 Contents Advanced Features Network Function.................... 25 Enter the Network Applications............... 26 VUDU HD Movies ................... 26 VUDU Apps ....................28 ......................28 Opera......................29 YouTube ......................31 Other Apps...................... 32 Other Information.................... 33 Digital Media Player ..................34 Enjoy Video Files .................... 34 Enjoy Music Files....................
  • Page 8: Getting Started

    Getting Started Accessories List USER MANUAL Quick Setup Guide Warranty Card A A S S P P E E C C T T P P I I C C T T U U R R E E S S O O U U N N D D M M T T S S / / S S A A P P C C C C D D ®...
  • Page 9: Installing A Wall-Mount Bracket

    Getting Started 3. Align the stand cover with the stand column, then secure the stand column to the stand cover with the four provided Screws A. See Figure 3. 4. Align the stand cover with the screw holes on the bottom of TV back, secure the stand to the TV with the four provided Screws A.
  • Page 10: When Installing The Tv Against A Wall Or Enclosed Area

    Getting Started 10.5 ~ 11.5 mm Wall-Mount Bracket Wall-Mount hole pattern VESA (mm) 400 × 400 Wall-Mount screw size (mm) Screw the TV's rear cover Spacer When Installing the TV Against a Wall or Enclosed Area Make sure that your TV has adequate air circulation. Allow enough space around the TV as shown below. Avoid operating the TV at temperatures below Inadequate air 41°F (5°C).
  • Page 11: Viewing The Control Panel

    Getting Started Viewing the Control Panel MENU MENU INPUT INPUT VOLUME VOLUME VOLUME VOLUME CHANNEL CHANNEL CHANNEL CHANNEL Power indicator 3D emitter Item Description Power indicator Light up when the power is on. Receives remote signals from the remote control. Remote receiver Do not put anything near the sensor, as its function may be affected.
  • Page 12: Viewing The Remote Control

    Getting Started Viewing the Remote Control Power on/off Select input source Direct channel selection Dash button Go to the previous channel (use when entering a digital sub-channel 3D button Increase Volume Next channel Display the favorite channel list Decrease Volume Previous channel Mute button Hi-DMP (digital multimedia player) button...
  • Page 13: Installing Batteries In The Remote Control

    Dish Network ........627 or 505 If the Hisense code associated with your Cable or Satellite provider is not listed above, if the code above does not work, or if you cannot locate the instructions for programming your household remote to your television, call your local Cable or Satellite provider’s customer service center.
  • Page 14: Making Connections

    Getting Started Making Connections COMPONENT ANT/CABLE HEADPHONE DIGITAL Power input AUDIO OUT USB2 USB1 HDMI4 HDMI3 HDMI DC5V 0.5A(MAX) PC/DVI AUDIO IN HDMI PC/DVI HDMI HDMI AUDIO IN Item Description ANT/CABLE Connect an antenna or cable TV to this jack. HDMI (High-Definition Multimedia Interface)provides an uncompressed, HDMI all digital audio/video interface between this TV and any HDMI-device,...
  • Page 15 Getting Started NOTES Check the jacks for position and type before making any connections. Loose connections can result in image or color problems. Make sure that all connections are tight and secure. Not all A/V devices have the ability to connect to a TV, please refer to the user’s manual of your A/V device for compatibility and connections procedure.
  • Page 16: Connecting A Headphone

    Getting Started Connecting an A/V Device with Component (YP ) Cable 1. Use a component cable to connect the external A/V device’s component output jacks to the TV’s YP jacks. Use an audio cable to connect the external A/V device’s component audio jacks to the TV’s AUDIO (L/R) jacks. 2.
  • Page 17: Connecting A Pc With Vga Cable

    Getting Started Connecting a PC with VGA Cable 1. Use a VGA cable to connect the PC’s VGA output jack to the TV’s VGA jack. Use an audio cable to connect the PC’s audio output jack to TV’s PC/DVI AUDIO IN jack. 2.
  • Page 18: Basic Features

    Basic Features Turning the TV on or off Choose your Picture Mode IMPORTANT: At first, you have to match the remote Home mode control with TV. Retail mode Home mode default settings are recommended for in-home use. To turn your TV on or off (standby mode): Retail mode is intended for in-store display and resets video 1.
  • Page 19: Changing Channels / Volume

    Basic Features Changing Channels / Volume DISPLAY - Display the information banner. The information including channel number, channel name, current system time, tuner mode, audio stream, video format, audio 1. Press the [CH /V] (or [CH +/-]) on the TV/remote control language, closed caption mode, parental locks rated, to change the channel.
  • Page 20: To Use The Menu

    Basic Features To Use the Menu Press the [Menu] button to open the main menu. Picture Press [ / ] to select a menu option, then press Picture Mode Standard Standard [ /ENTER] to enter the menu. Brightness In each menu, you can: Contrast Color Press [ / ] to select an item,...
  • Page 21: Using The Audio Menu

    Basic Features Using the Audio Menu Picture 3D Mode Side-by-Side L-R Switch Audio Depth of Field 3D-to-2D Sound Mode Standard 3D Mode. Balance Equalizer Sound Surround Select a Sound mode Digital Audio Output to achieve ideal sound. Auto Volume Control Select Back 3D - Enables playback of 3D movies and TV shows (requires...
  • Page 22: Using The Screen Menu

    Basic Features Using the Screen Menu Using the Channels Menu NOTE Channels Only available in VGA mode. Tuner Mode Antenna Auto Channel Search Channel Skip Screen Favorite List Select tuner connect Stereo H.Position mode. Audio Language English V.Position Phase Clock Image positioning Auto Adjust and PC settings.
  • Page 23: Using The Settings Menu

    Basic Features Using the Settings Menu Sleep Timer: Specify the amount of time before your TV automatically turns off: Off -10-...-120 minutes. Caption - Adjust Closed Captioning settings. Settings Caption Control: Select the Closed Caption mode: CC Language English Off, CC On or CC On When Mute. Menu Settings Time Setup Analog Closed Caption: Select an Analog Caption...
  • Page 24: Using The Lock Menu

    Basic Features Using the Lock Menu U.S. TV Ratings Defined as When you first use this function, the default password is TV-Y All children [0000]. Once you input this password, you can set options. TV-Y7 Directed to older children Lock TV-G General audience Channel Block...
  • Page 25: Advanced Features

    Advanced Features Network Connection You can set up your TV so that it can access the Internet through your local area network (LAN) with a Ethernet or wireless connection. Connecting to a Wired Network You can attach your TV to your LAN by one of the three following ways: You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat 5 LAN cable.
  • Page 26 Advanced Features directions to enable automatic IP addressing by DHCP. Network Setup (Auto) Or, follow the steps listed to the follow to manually Use the Automatic Network Setup while your connecting the configure the network connection. TV to a network that supports DHCP. To set up your TV’s cable network connection automatically, follow these steps: How to set up automatically Network Setup (Manual)
  • Page 27: Connecting To A Wireless Network

    IEEE 802.11n router. When you play the video over a IEEE 802.11b/g connection, the video may not play smoothly. NOTES You must use the Hisense’s built-in Wireless LAN Adapter to use a wireless network, the set doesn’t support external USB network adapter.
  • Page 28: Dlna Settings

    Advanced Features (push button configuration) setup. Choose the method Wireless Setting supported by your wireless access point. How to set up 8a. If you choose PIN, an identification number will appear 1. Turn on your TV, operate according to the description in on the screen for you to enter into the access point.
  • Page 29: Media Share Settings In Computer

    Advanced Features To set up your TV’s network connection manually, follow these steps: 1). Follow Steps 1 through 5 in the “How to set up automatically” procedure. 2). Set Address Type to Manual. Settings Address Type Manual IP Address Subnet Mask Default Gateway Primary DNS 3.
  • Page 30: Network Function

    Mbps for HD video and 4.5 to 9 Mbps for HDX video). 2. VUDU and other Internet-based services are not provided by Hisense, may change or be discontinued at any time and may be subject to restrictions imposed by 2. Click the box to select “Share my media” and click [OK].
  • Page 31: Enter The Network Applications

    Advanced Features Enter the Network Applications Operational buttons 1. Press the [Hi-Smart] button to display Hi-Smart Hub. Other Apps My Apps VUDU Movies Netflix Opera YouTube Pandora Checkers ConnectFour CuteRichMan Blackjack sudoku Input Picture Video Music Network DLNA Select Enter Exit 2.
  • Page 32 Advanced Features 4. Please read the content of the Disclaimer first. If agree, 2. Press [ENTER] button to display the keyboard. press [Green] button and then access the network main There are some shortcuts on the bottom of the keyboard menu.
  • Page 33: Vudu Apps

    Advanced Features VUDU HD Movies subpage 3. Press [ / / / ] button to select the widget you want to access, and press [ENTER] to enter it. 4. You can press [RETURN] to return the upper menu or press [EXIT] button to close the Widgets display. VUDU Apps home page MY FAVORITES MOST POPULAR...
  • Page 34: Opera

    Advanced Features Opera Operation instructions 1. Press the [Hi-Smart] button to display network main menu. The function of the buttons on the remote control / / / ] 2. Press [ button to select the Netflix icon and press [ENTER] to enter it, or press [NETFLIX] button to Buttons Description enter Netflix website directly.
  • Page 35 Add a bookmark 7. Help. Are you sure to add it? Move the cursor to the icon and press [ENTER] button Name: HISENSE for help. 8. Address bar. URL: Http://www.hisense.com.au/ Input the website you want to view.
  • Page 36: Youtube

    Are you sure to add it? 2. Move the cursor to the icon before the folder name and Opera technology press [ENTER] button to confirm. HISENSE Name: The websites in the folder will appear in the following Cancel lines. 3. Move the cursor to the website you want to view and Http://www.hisense.com.au/...
  • Page 37: Other Apps

    Advanced Features Other Apps Operation introduction 1. Press the [Hi-Smart] button to display network main menu. Penalty dress-up DICE GUESS NU [ / / / ] 2. Press button to select the Other Apps and press [ENTER] to enter it. 2) Press [ / / / ] to select the applications you want to...
  • Page 38: Other Information

    ] to select the title of Hotlist and press [ / ENTER] to enter it. Our Promise Thanks for you and your family choose Hisense Smart TV, we will continue to provide better and more services. Penalty 1.0 Hitv Issued In 2012-01-07...
  • Page 39: Digital Media Player

    Advanced Features Enjoy Music Files 3. Press [ENTER] to browse the picture. 4. Press [ /RETURN] to exit the picture and return to the previous directory. 1. Press [RED] button to switch to All or Music. Tool bar 2. Press [ / / / ] to select the music you want to view. C:\ music ■...
  • Page 40: Enjoy Music Files

    Other Information Trouble Shooting When something appears wrong with your TV refer to below chart. If the proposed remedy’s do not work , then unplug the AC cord from wall, wait at least 60 seconds, plug AC back in and then turn on the TV. If the problem still cannot be solved, please contact the help line provided on the warranty card or a professional technician.
  • Page 41: Browse The Text Files

    Other Information SYMPTOMS POSSIBLE SOLUTIONS Confirm that TV still has power and is operational. Change the batteries in the remote control. Check if the batteries are correctly installed. If using a universal remote, be sure to select the TV mode on the remote. Remote control does not work.
  • Page 42: General

    Other Information General NOTE Features, appearance and specifications are subject to change without notice. Model Name 65K560DW Without 58.4x34.5x2.5 in. Stand (1484x877x64 mm) Dimension With 58.4x40.0x14.2 in. Stand (1484x939x360 mm) Without 83.8 lbs.(38 kg) Stand Weight With 110.2 lbs.(50 kg) Stand LCD Panel Minimum size 64.5 inches...
