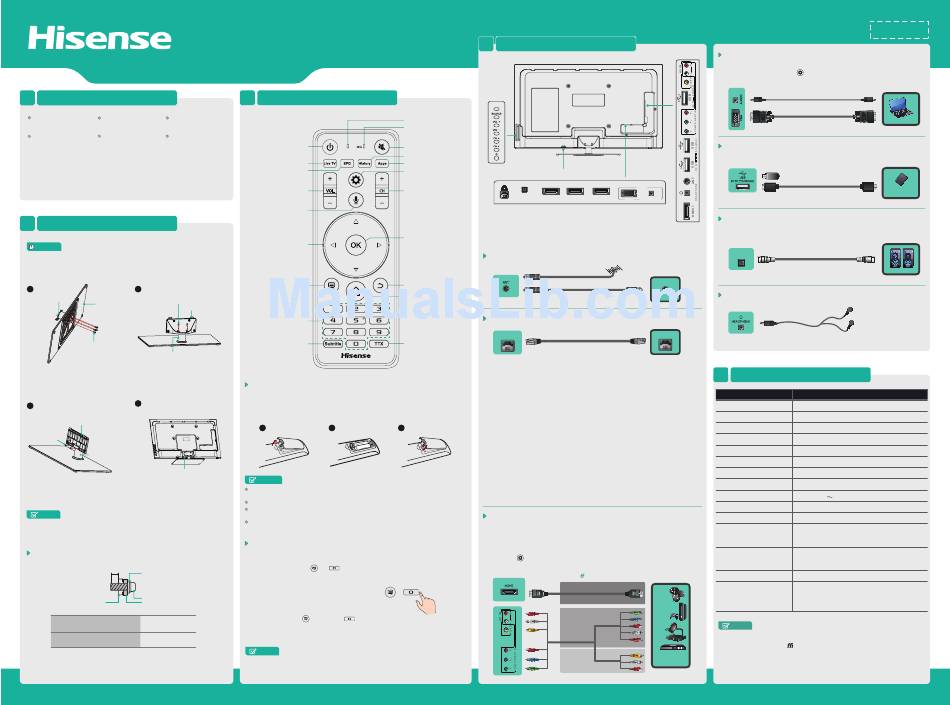

65K390PAD
1
ACCESSORIES LIST
User Manual
Quick Setup Guide
3D Glasses × 1
Remote Control
Batteries: AA × 2
Screws (M5×12) × 13
•
If the item is not specif ied in the accessories list, it should be provided by customer.
•
Recommend the active shutter 3D glasses model FPS3D08. Other brands 3D
glasses may not be supported.
2
INSTALLING THE STAND
CAUTION
Carefully place your TV facedown on a soft, flat surface to prevent damage to
the TV or scratching to the screen.
1
2
Stand Column
Screws:M5×L12
Base
Stand Cover
Screws:M5×L12
Stand Column
Secure the stand column to the base
Secure the stand cover to the stand
plate with the 5 screws.
column vertically with the 2 screws.
4
3
Stand Cover
Screws:
M5×L12
Stand Column
Screws:M5×L12
Secure the stand cover to the
stand
Secure the base stand to the TV with
column
horizontally with the 2 screws.
the 4 screws.
NOTE
Product image is only for reference, actual product may vary in appearance.
WALL-MOUNT BRACKET (not provided)
9 ~ 10 mm
Wall-Mount Bracket
(not provided)
Screw
The TV's rear cover
Spacer
(not provided)
Wall-Mount hole pattern VESA (mm)
400 × 400 (for 65")
Wall-Mount screw size (mm)
M6
QUICK SETUP GUIDE
3
VIEWING THE REMOTE CONTROL
Power indicator
Receive the voice
Power Standby button: Power on
Mute and restore sound
/ Standby
Display the applications
recently used
Enter the Live TV screen
Fast access to the all applications
Display the Electronic
Display the Settings menu
Programming Guide in DTV mode
Adjust the volume
Select the next/previous channel
Run Voice Search
To speak a voice command,
press and hold the VOICE
button and say a voice command
Confirm button /
Display the on-screen keyboard.
Navigation buttons
▲/▼/◄/►: Up/Down/Left/Right
Returns to the previous menu
Press the cute key to see
or exit the application
the available options anywhere
Launch Home screen
While an application is running,
pressing the button terminates
the application
Select a channel or input numbers
Dispaly subtitles in the Live TV
Display the teletext in the Live TV
ERF6A31
CHANGE THE BATTERIES
1. Press and lift the back cover to open the battery compartment of the remote control.
2. Insert two AA size batteries. Make sure to match the (+) and ( - ) ends of the batteries
with the (+) and ( - ) ends indicated in the battery compartment.
3. Close the battery compartment with the cover.
1
2
3
NOTES
Dispose of your batteries in a designated disposal area. Do not throw the batteries
into fire.
Do not mix battery types or combine used batteries with new ones.
Remove depleted batteries immediately to prevent battery acid from leaking into the
battery compartment.
If you do not intend to use the remote control for a long time, remove the batteries.
Pairing the Remote Control
The First Method
The Setup Wizard menu appears the first time you turn on the TV. Step of the remote pairing,
press and hold down the
and
buttons simultaneously until the red LED turns on.
When the red LED lights, release the buttons and wait for the TV to pair with the remote. The
blue LED on the remote control will flash three times when the pairing is successfully
completed.
+
The Second Method
1. Enter Settings > Bluetooth to turn on Bluetooth.
2. Press and hold the
button and the
button for three seconds simultaneously.
3. Select Find nearby devices to search the remote control, and the remote control will
appear in available devices, then press the [▲/▼] buttons to select the Remote Control
and press the [OK] button to pair.
NOTE
If the LED is red, the remote has failed to pair with the TV, please repeat the pairing
procedure until succeeding.
4
MAKING CONNECTIONS
TV Back View
OK
Power Switch
TV Bottom Panel
PC IN
DIGITAL
HDMI 4
HDMI 3
HDMI 2
AUDIO OUT
VGA
PC AUDIO IN
LAN
Check the jacks' for position and type before making any connections.
Loose connections can result in image or color problems. Make sure
that all connections are tight and secure.
ANT
Connect an outdoor VHF/UHF antenna.
Outdoor
Antenna
VHF/UHF Antenna
OR
Antenna Cable (75Ω)
ANT OUT
LAN
Connect an ethernet cable to access a network or the Internet.
LAN
Turning the TV On for the First Time
The Installation Guide Menu appears the first time you turn on the TV. The wizard will guide
you step-by-step through the initial setup and configuration of your television.
Press [POWER] to turn on your TV, it will go straight into Setup Wizard menu
•
•
Press the [▲/▼/◄/►] buttons to navigate the menu and change the settings. Press the [OK]
button to confirm.
Language setting - Select your desired language to be displayed on the menu.
Select region - Select the country where you will operate the TV.
Remote pairing - Pair the remote control with the TV via Bluetooth.
Legal notice - View the legal information, you can send report to Hisense or not.
Connect to the internet - Connect your TV to access the network via Ethernet cable
or WiFi. Please refer to the user manual (Setting> Wi-Fi or Ethernet) for more information.
Google Account - Log in or register a new Google Account.
Select use mode - Select the TV's usage mode: Home Mode / Retail Mode
Help Make Google TV better - Select sending report to Google or not.
Chanel installation - Search and store available TV channels according to the input signal.
HDMI / COMPONET / AV
Connect a HDMI cable or COMPONET/AV Adapter from an external A/V equipment.
No sound connection is needed for HDMI to HDMI connection. If the device signal resolution
does not match the specification table you need to change the setting of device according to
the table. Please consult your device user manual for instruction.
•
To select the HDMI / Component / AV
Press the
button to diaplay the Setting menu and select Video input, and then select
the source [HDMI] / [Component] / [AV] to connect from the list.
Video E ect:
BEST (HDMI)
Y
BETTER
P
b
(COMP)
Component
P
r
L
R
Video
GOOD
Video Camera/
AV
Set-top Box/
(AV)
L
Satellite Receiver
R
TV Side View
VGA & AUDIO
Connect a VGA cable and an audio cable from the PC.
•
To select the VGA:
Press the
button to display the Setting menu and select
Video Input, and then select the source [VGA] to connect from the list.
USB
Connect a USB device port for browsing photos, listening music and playing movies.
DIGITAL AUDIO OUT
Connect an optical cable from an external digital audio system (Toslink optical cable
is needed).
DIGITAL
AUDIO OUT
HEADPHONE
Connect Headphone for audio out of the TV.
LAN
5
SPECIFICATIONS
Model
65K390PAD
Size with base (mm)
1461×360×912
Size without base (mm)
1461×63×839
Weight with base (kg)
45.5
Weight without base (kg)
36.5
Active Screen Size(Diagonal)
65 inches
Screen Resolution
1920 × 1080
Sound Output (RMS)
10 W + 10 W
Power Consumption
155 W
Power Supply
100V - 240V
50Hz/60Hz
Colour System
PAL NTSC SECAM
Television System
PAL B/G SECAM D/K DVB-T
Temperature: 5°C - 45°C
Environmental
Humidity: 20% - 80% RH
Conditions
Atmospheric pressure: 86 kPa - 106 kPa
480I/60Hz, 480P/60Hz, 576I/50Hz, 576P/50Hz,
Component mode
720P/50Hz, 720P/60Hz, 1080I/50Hz, 1080I/60Hz,
1080P/50Hz, 1080P/60Hz
VGA mode
640×480, 800×600, 1024×768, 1280×1024 60Hz
480I/60Hz, 480P/60Hz, 576I/50Hz, 576P/50Hz,
720P/50Hz, 720P/60Hz, 1080I/50Hz, 1080I/60Hz,
HDMI mode
1080P/50Hz, 1080P/60Hz
640×480, 800×600, 1024×768
NOTE
Features, appearance and specifications are subject to change without notice.
If you encountered di culty when setting up your TV, we suggest
you refer to the Trouble Shooting tips in the User Manual.
Dial: 1800 447 367 (Toll Free) http://www.hisense.com.au
ES-G140435-1
35x10.5mm
1138550
