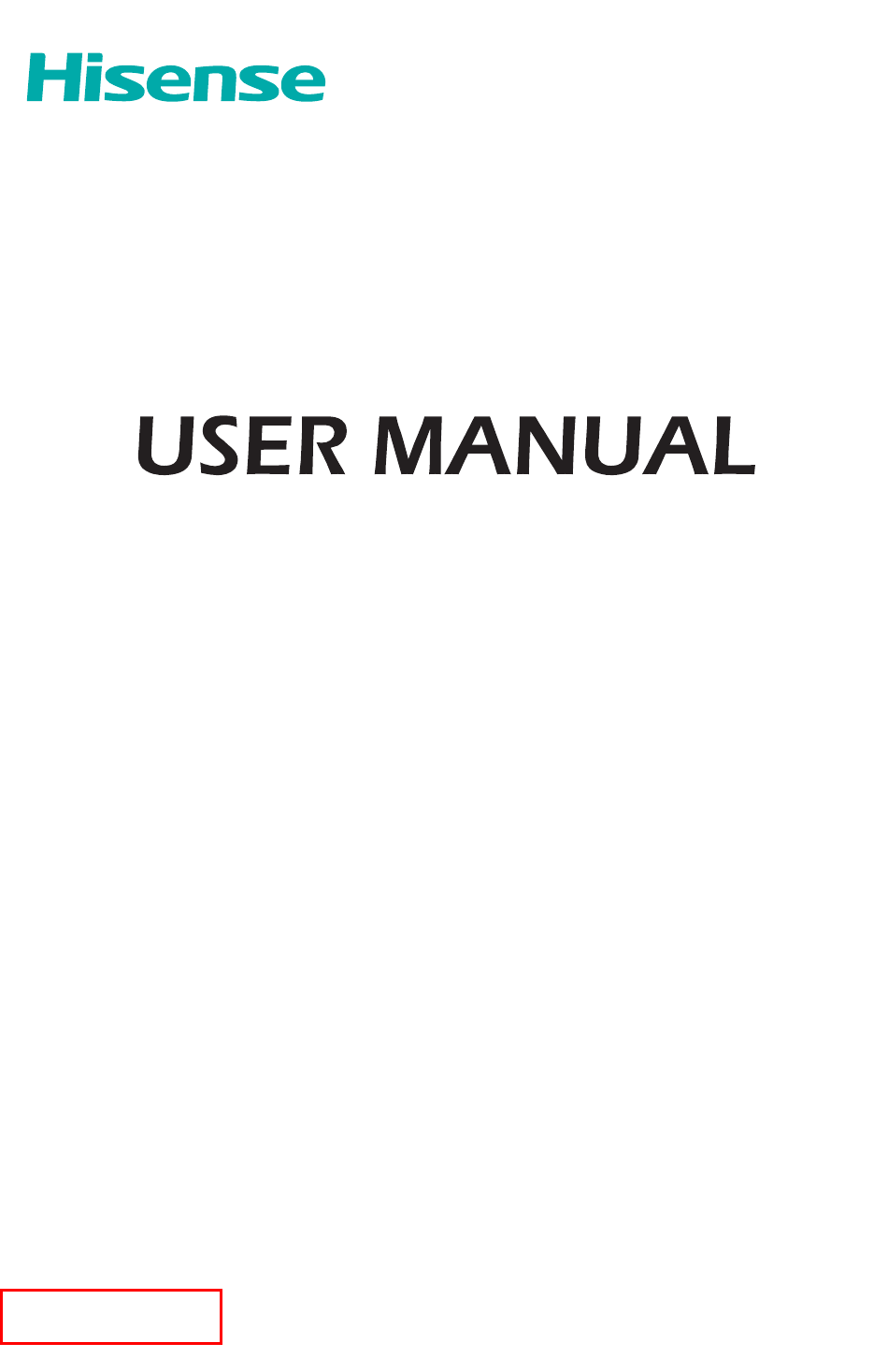

Page 1 Read the manual carefully and ensure you have fully understood its contents before operating this device for the first time. English Deutsch Español Italiano Português Français Nederlands ES-A21420E-1 B...
Page 2 Read the manual carefully and ensure you have fully understood its contents before operating this device for the first time. English...
Page 3: Important Safety Instructions
Important Safety Instructions ▐ Important Notice Paragraphs beginning with the symbol indicate important instructions, tips or conditions for the following settings. For your own safety and the optimal performance of your TV, ensure to read the safety instructions before performing any installation. Compatibility with 3rd party products, software and services are not guaranteed.
Page 4 Important Safety Instructions The intended use and ambient conditions for this TV This TV is intended for the rendering of video and audio signals, on a table-top or wall- mounted, in a home or office environment. It must not be used in rooms with a high level of humidity or dust concentration.
Page 5 Important Safety Instructions „ Moving/Transportation „ Power plug and power cable Before moving this TV, disconnect all - Do not touch the power plug with wet cables and move in the vertical position hands. only. Grasp the device on the upper and - Do not place heavy objects on the lower edges of the frame.
Page 6 Important Safety Instructions When mounting the TV on a wall, follow the 20cm instructions supplied with the wall-mount, make sure not to install the TV by hanging 10cm 10cm 10cm the power and signal cables on the back of the TV. „...
Page 7 Important Safety Instructions „ Radio waves fine and the fumes from the off-gassing will diminish eventually. - Do not use the TV in any medical institutions or locations with medical „ Supervision equipment. Radio waves may interfere with medical equipment and cause - Do not let children play unsupervised malfunction.
Page 8 Important Safety Instructions „ Cleaning and care swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. CAUTION: Unplug the power cord prior to cleaning „ Modification the TV. Clean the TV, the screen, and the remote Do not attempt to modify this product control with a soft, moist, clean and in any way.
Page 9: Table Of Contents
Contents Figures and illustrations in this manual are provided for reference only and may differ from actual product appearance. Parts of the software function changes with the system upgrade. Contents Accessories List......................1 Installing the Stand or Wall mount bracket ..............2 TV Front..........................5 TV Rear ..........................6 Making Connections .......................8...
Page 10: Installing The Stand Or Wall Mount Bracket
Installing the Stand or Wall mount bracket CAUTION Be sure to disconnect the AC power cord before installing a stand or wall mount brackets. The display on your TV is fragile. Make sure the TV screen is not scratched or damaged by hard objects or from pressure.
Page 11 Installing the Stand or Wall mount bracket 50"/55" Base Stand Screws: M5×12 (50") M4×12 (55") 65" Screws: M5×12 Base Stand...
Page 12 Installing the Stand or Wall mount bracket Installing the wall mount bracket Before mounting the TV, remove the TV stand if you have already attached it, and make sure the wall mount bracket supports the weight of your TV. CAUTION When mounting the TV on a wall, follow instructions provided with the wall mount bracket.
Page 13: Tv Front
TV Front TV Front Remote sensor/Power indicator/Single button (Standby/Source) Item Description Receive remote signals from the remote control. Remote sensor Do not put anything near the sensor, as its function may be affected. Power indicator The light is red in standby mode. Press the single button when in standby mode, and the TV will be turned on.
Page 14: Tv Rear
TV Rear TV Rear 50"/55" 43" 43"/50"/55" AC INPUT NOTES For 43", ANT2 Jack supports power supply for satellite antenna (13/18V, 420mA max.) For 50"/55", ANT2 Jack supports power supply for satellite antenna (13/18V, 0.5A max.) Check the jacks for position and type before making any connections.
Page 15 TV Rear TV Rear 65" AC INPUT NOTES ANT2 Jack supports power supply for satellite antenna (13/18V, 0.5A max.) Check the jacks for position and type before making any connections. Loose connections can result in image or colour problems. Make sure that all connections are tight and secure. Not all A/V devices have the ability to connect to a TV, please refer to the user’s manual of your A/V device for compatibility and connections procedure.
Page 16: Making Connections
Making Connections Wired setup LAN ( Connect your TV to your network by connecting the LAN port on the back of your TV to an external modem or router using a LAN (Ethernet/Cat 5) cable. See the illustration below. · It is recommended to use a modem or router that supports Dynamic Host Configuration Protocol (DHCP).
Page 17 Making Connections Outdoor Antenna Cable ANT OUT ANT 1 DVB-T/T2/C Antenna Cable (75Ω) (not included) VHF/UHF Antenna ANT 2 DVB-S/S2 (not included) Satellite antenna Audio Amplifier/Speaker DIGITAL DIGITAL AUDIO OUT AUDIO OUT DIGITAL AUDIO cable (not included) Audio Amplifier/Speaker HDMI (ARC) HDMI HDMI (ARC)
Page 18 Making Connections CAM CARD SMART CARD NOTES Before you insert/remove the CI+ module, ensure that the TV COMMON is switched off. Then insert the CI card into the CI+ module in INTERFACE accordance with the Service Provider's instructions. Do not repeatedly insert or remove the Common Access Module as this may damage the interface and cause a malfunction.
Page 19: Remote Control
Remote Control INPUT: Select input sources POWER: Switch the TV on or into standby mode Number button: Direct channel selection or numbers input GUIDE: Display the Electronic Program Guide (DTV mode) CH.LIST: Display the Channel List on the screen Special function buttons : Display the Quick setup menu : Media content control function buttons / <...
Page 20 Remote Control POWER: Switch the TV on or into standby mode INPUT: Select input sources Number button: Direct channel selection or numbers input GUIDE: Display the Electronic Program Guide (DTV mode) CH.LIST: Display the Channel List on the screen Special function buttons : Display the Quick setup menu : Media content control function buttons / <...
Page 21: Installing Batteries In The Remote Control
Remote Control Installing Batteries in the Remote Control 1. Slide the back cover to open the battery compartment of the remote control. 2. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment.
Page 22: Remote Control Operation Range
Remote Control Remote Control Operation Range 1. The remote control can work at a distance of up to 8 metres in front of the TV set. 2. The remote control angle: taking the remote sensor as an apex, 6 metres away, its controlled horizontal angle is within ±30°, while the vertical angle is within ±15°.
Page 23: Turning The Tv On For The First Time
Turning the TV on for the First Time Turning the TV on for the First Time 1. Connect the mains cable to the mains socket after you have completed all the connections. 2. The first time you turn the TV on, it will go straight into the Installation Guide. 3.
Page 24: Specifications
Specifications Features, appearance and specifications are subject to change without notice. 43" 50" Item 37.9 × 22.0 × 2.9 inches 44.0 × 25.4 × 2.9 inches Without Stand (963 × 560 × 74 mm) (1117 × 646 × 74 mm) Dimension (W ×...
Page 25 Specifications Power consumption Please refer to the rating label. Power supply Please refer to the rating label. Analog PAL-D/K, B/G, I, SECAM-D/K, B/G Receiving systems Digital DVB-T/T2, DVB-C, DVB-S/S2 Model TX7663BU51T 2.4-2.4835GHz Frequency Range 5.15-5.85GHz Wireless LAN Module 2.4-2.4835GHz 17dBm specifications 5.15-5.25GHz 14dBm Output Power...
Page 26: Other Information
Other Information Recycling/Licenses WEEE (Waste Electronic Electric Equipment) European Directive 2012/19/EU This symbol on the product or on its packaging indicates that this product must not be disposed of with your household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
Page 27 50A68HNE / 50A66H / 50A67H / 50A68H / 50A69H / 50A68HCH / 50A69HCH / 50A69HNE / 50A63HTUK / 50A64HTUK / 50A65HTUK / 50A66HTUK / 50A67HTUK / 55A63H / 55A64H / 55A65H / 55A63HCH / 55A64HCH / 55A68HNE / 55A66H / 55A67H / 55A68H /...
Page 28 Other Information EPREL Registration Information Model Eprel registration Model Eprel registration identifier number identifier number 43A63H 1037350 50A63H 1040302 43A64H 1037415 50A64H 1040385 43A65H 1037418 50A65H 1040389 43A63HCH 1037424 50A63HCH 1040392 43A64HCH 1037426 50A64HCH 1040496 43A68HNE 1037431 50A68HNE 1040721 43A66H 1037437 50A66H 1040729...
Page 29 Other Information EPREL Registration Information Model Eprel registration Model Eprel registration identifier number identifier number 55A63H 1031995 65A63H 1033249 55A64H 1032010 65A64H 1033501 55A65H 1032013 65A65H 1033513 55A63HCH 1032015 65A63HCH 1033517 55A64HCH 1032019 65A64HCH 1033521 55A68HNE 1032025 65A68HNE 1033534 55A66H...
