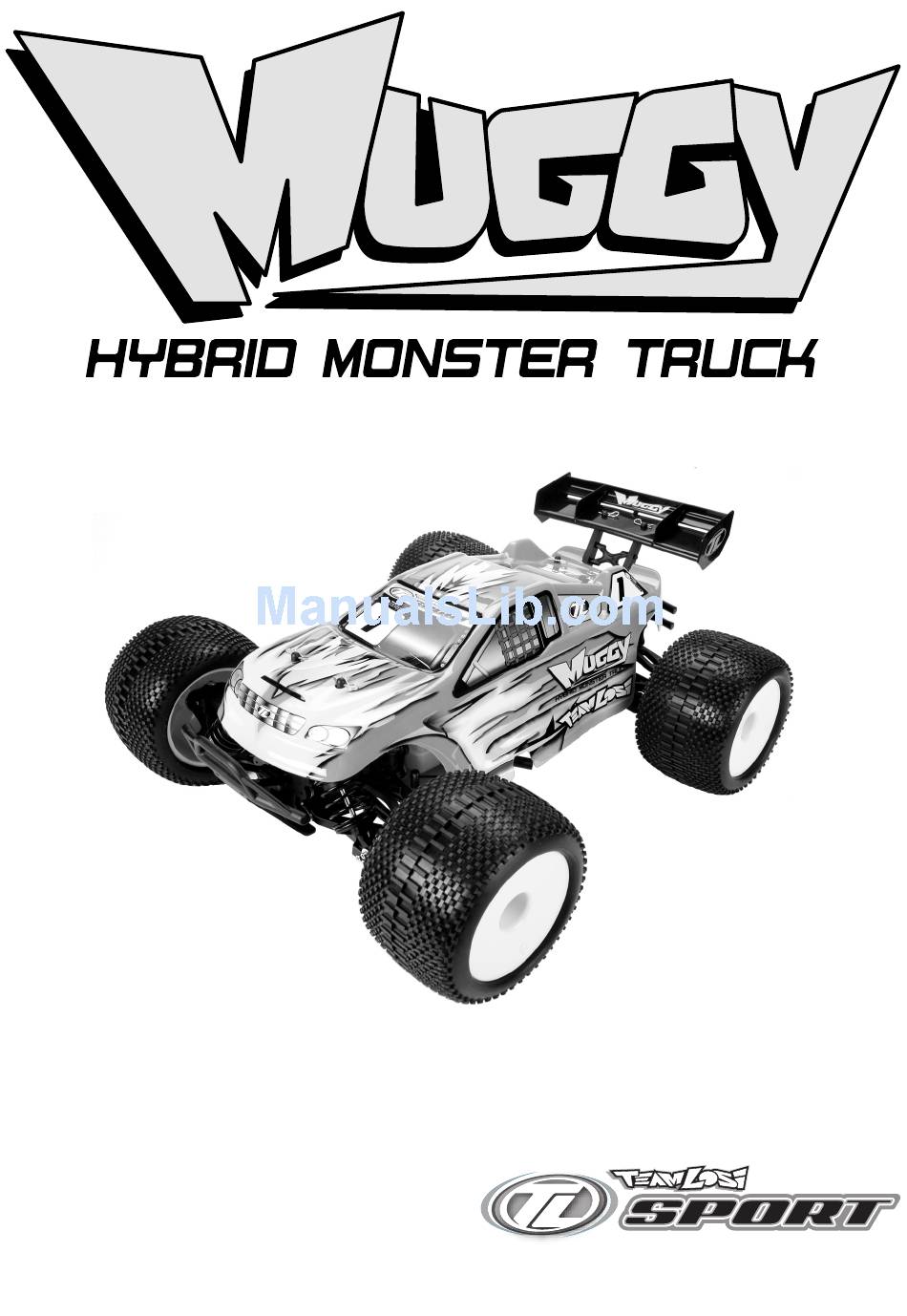

- Page 1 Operations Guide Not Responsible For Errors. All prices subject to change without notice. ©Team Losi , A division of Horizon Hobby Inc. 800-0303 JA 7-12-06...
-
Page 2: Safety Precautions
It is your responsibility to see that the instructions are followed and precautions adhered to. The Muggy is not intended for use by children without direct adult supervision. Team Losi, JR, and Horizon Hobby shall not be liable for any loss or damages, whether direct, indirect, special, incidental, or consequential arising from the use, misuse or abuse of this product or any product required to operate it. -
Page 3: Required Equipment
8 AA Alkaline batteries for the transmitter. 1 C Alkaline battery for the igniter. Quality Model Car Fuel - preferably Team Losi Nitrotane Sport Fuel with 20% Nitro Content. Fuel bottle. 7.2v 6 cell "Stick" battery pack for the remote starter. -
Page 4: Engine Tuning
Base Start-up Settings from the Factory High-Speed Needle -- 4 turns out from bottom Low-Speed Needle -- 2.5 turns out from bottom Engine Tuning After the engine is broken in you can tune it for optimum performance. When tuning, it is critical that you be cautious of overheating as severe damage and premature wear can occur. - Page 5 Hi-Speed Adjustment After initial acceleration the engine should pull at a steady rate while maintaining a two-stroke whine and a noticeable trail of smoke. If the engine labors and is sluggish with heavy smoke, the mixture is too rich and needs to be leaned by turning the Hi-Speed needle clockwise in one hour increments until it runs smooth.
-
Page 6: Transmitter Operation
Transmitter Operation It is important that you familiarize youself with the radio system, as this is your direct link to the truck. - Never run your truck with low receiver or transmitter batteries. - Never leave the switch on, while not in use, or the batteries will not last long. - Always fully extend the transmitter antenna before running your truck. - Page 7 The differentials should be serviced periodically. Be sure to clean and inspect all of the gears and replace if severely worn. Always use plenty of high-quality grease (like Team Losi LOSA3066) on all gears. NOTE: These can also be made into racing type viscous diffs as noted below. Always service one diff at a time and pay close attention to install the housing with the "TOP"...
-
Page 8: Throttle/Brake Linkage
Throttle/Brake Linkage The Muggy is equipped with front and rear adjustable brakes. Setup - Turn on the Transmitter and set the throttle trim to read "0", which is neutral, on the transmitter screen. - Turn on the switch in truck. - Loosen the set screw in the blue adjusting collar and attach the throttle linkage ball cup to the carburetor. -
Page 9: Tools Needed
Note: If you are just refilling your the shock fluid (suggested) dump shocks, be sure to use out the old fluid from the shock Team Losi 30wt silicone body before reinstalling the cart- shock fluid. Remove the shock B2875 ridge/shaft assembly. Pull the shaft... -
Page 10: Initial Factory Settings
Quick Reference Guide Quick Reference Guide Initial Factory Settings Initial Factory Settings Engine x2.5 Hi-Speed Needle 4 Turns Out Low-Speed Needle 2.5 Turns Out Shocks Tie Rods 2.2 in. (57mm) Steering Team Losi 30wt Shock Oil (LOSA5224) Page 9... -
Page 11: Troubleshooting Chart
Losi Sport 427 Customer Support Losi Sport 427 Customer Support Trouble shooting Chart Trouble shooting Chart Horizon Hobby Inc. Horizon Hobby Inc. 4105 Fieldstone Rd. 4105 Fieldstone Rd. Champaign, IL 61821 Champaign, IL 61821 1-877-504-0233 1-877-504-0233 Problem Things to Check Remedy - Out of fuel Engine won't start..... - Page 12 MUGGY Parts List Suspension Parts Clutch Parts LOSB2002 F/R Suspension Arms (pr) (LST2/Mug).......$10.00 LOSB2003 Lower F/R Shock Mounts............$2.00 LOSB3302 Flywheel 3-Pin.............$10.99 LOSB2104 Front Spindles and Carriers (LST2/Mug)..…....$7.00 LOSB3305 Flywheel Collet..............$4.00 LOSB2106 Rear Hub Carriers (LST2/Mug)..........$5.00 LOSB3306 Clutch Nut & Shims, 5 x 7mm (LST/2/Mug)....$5.00 LOSB2110 Steering Bell Cranks &...
-
Page 13: Engine Accessories
MUGGY Parts List Losi Sport 427 Engine Parts LOSB5111 Spin-StartBackplate,.26 (LST/2/Muggy)........$6.00 LOSR1021 Head Button, 427..............$9.00 LOSR1023 Head Shims, .1mm (2), 427..........$2.00 LOSR1024 Head Shims, .2mm (2), 427..........$2.00 LOSR1026 Wrist Pin, 427................$4.00 LOSR1027 Wrist Pin Clips (2), 427............$2.00 LOSR1028 Connecting Rod, 427............$35.99 LOSR1030 Crank Shaft (w/PS), 427.............$59.99 LOSR1031 Back Plate PS, 427...............$6.00 LOSR1032 One-Way Bearing, PS, 427..........$14.00... - Page 14 Page 13...
