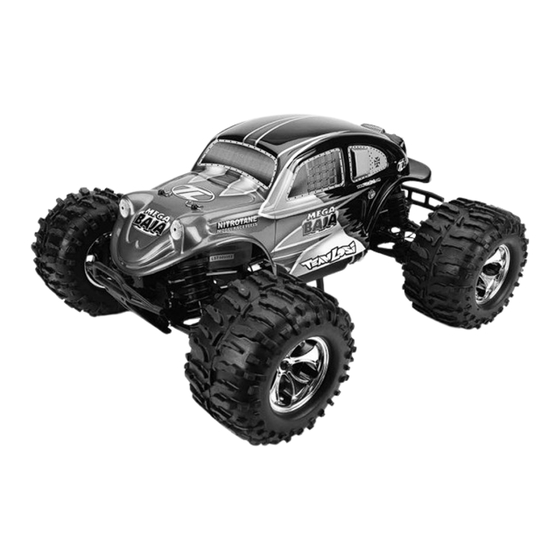

- Page 1 MEGA BAJA Nitro Monster Vehicle Operations Guide Not responsible for errors. All prices subject to change without notice. Losi, a Division of Horizon Hobby, Inc.
-
Page 2: Customer Support Contact
It is your responsibility to see that the instructions are followed and precautions adhered to. The Mega Baja is not intended for use by children without direct adult supervision. Losi, JR and Horizon Hobby shall not be liable for any loss or damages, whether direct, indirect, special, incidental or consequential arising from the use, misuse or abuse of this product or any product required to operate it. - Page 3 Required Equipment You will need the following items to operate your new Mega Baja. 8 AA Alkaline batteries for the transmitter Losi® Nitrotane™ 20% Sport Fuel. (LOSF0020 or LOSF0120) This is the only fuel that supports the engine warranty. Fuel bottle (LOSB5201) Optional: Rechargeable Glow Ignitor (LOSB5221) Tools You Will Find Handy In addition to the tools included with the Mega Baja, you will find the following both useful and in some cases necessary.
-
Page 4: High-Speed Needle
Base Start-up Settings from the Factory High-Speed Needle—3 turns out from bottom Low-Speed Needle—2 turns out from bottom Engine Tuning After the engine is broken in, you can tune it for optimum performance. When tuning, it is critical that you be cautious of overheating as severe damage and premature wear can occur. - Page 5 Hi-Speed Adjustment After initial acceleration, the engine should pull at a steady rate while maintaining a two-stroke whine and a noticeable trail of smoke. If the engine labors and is sluggish with heavy smoke, the mixture is too rich and needs to be leaned by turning the high-speed needle clockwise in one-hour increments until it runs smoothly.
-
Page 6: Radio Operation
Radio Operation It is important that you familiarize yourself with the radio system, as this is your direct link to the model. Never run your model with low receiver or transmitter batteries. Never leave the power on or the batteries will not last long. Always fully extend the transmitter antenna before running your model. -
Page 7: Speed Adjustment
2-Speed Adjustment Although pre-adjusted at the factory, the two-speed can be adjusted to shift at the point that suits you best. Under normal circumstances, it should shift slightly before the engine reaches maximum power. The actual distance traveled will vary with the gear ratio and tune of the engine. There are two adjustment screws (see fig 1) that must be changed evenly for the two-speed to function correctly. - Page 8 Replacing the 2-Speed Gears Be sure to replace the one-way bearing in the same direction as removed. Replacing the Clutch Bell Use a 3/32” wrench (provided) to remove the retaining screw (turn counterclockwise) while firmly hold- ing the flywheel with a pair of pliers. Remove the screw, washers and clutch bell, being careful not to lose any shims that may be used.
- Page 9 Servicing the Differentials The differentials should be serviced periodically. Be sure to clean and inspect all of the gears and replace if severely worn. Always use plenty of high-quality grease (like Losi LOSA3066)on all gears. NOTE: These can also be made into racing type viscous diffs as noted below. Always service one diff at a time and pay close attention to installing the housing with the "TOP"...
-
Page 10: Servicing The Transmission
Servicing the Transmission The Transmission should also be cleaned and serviced periodically. All gears and shafts should be closely inspected for wear and replaced if necessary. Always use a high quality grease or lubricant to prevent premature wear and/or failure. Removing the Transmission Remove the gear cover. -
Page 11: Tools Needed
Rebuilding/Refilling the Shocks Rebuilding/Refilling the Shocks Tools Needed Step 1. Step 2. After removing the shock, Turn the shock upside down push up on the lower spring and, using the included shock cup and snap it off of the tool, remove the black shock shaft. -
Page 12: Initial Factory Settings
Quick Reference Guide Quick Reference Guide Initial Factory Settings Initial Factory Settings Using Nitrotane 20% Sport Fuel Using Nitrotane 20% Sport Fuel Engine High-Speed Needle - 3 turns out Low-Speed Needle - 2 turns out Transmission Axles & Nuts Slipper - 1 turn out Two-Speed - 5 turns out Shocks Tie Rods... -
Page 13: Troubleshooting Chart
M26SS Customer Support M26SS Customer Support Troubleshooting Chart Troubleshooting Chart Horizon Hobby, Inc. Horizon Hobby, Inc. 4105 Fieldstone Road 4105 Fieldstone Road Champaign, IL 61822 Champaign, IL 61822 1-877-504-0233 1-877-504-0233 Problem Things to Check Remedy Engine won't start........Out of fuel... - Page 14 Mega Baja Parts List SUSPENSION PARTS HARDWARE LOSB2001 F/R Suspension Arms (pr) (LST/AFT) ........ $10.00 LOSA3045 Gear Cover Access Plus ............$1.50 LOSB2101 F/R Spindles & Carriers (LST/AFT) ........$7.00 LOSA4002 Antenna Tube & Cap ............$2.25 LOSB2102 Steering Bell Cranks, Shafts, & Chassis Braces (LST/2) ..$7.00 LOSA4003 Antenna Caps ............... $1.25 LOSB2201 F/R Suspension Pin Brace Set (AL) (LST/2) ......$7.00 LOSA6100 1/8” E-Clips ................$1.25 LOSA6103 3/32” E-Clips ................. $1.25 CHASSIS PARTS LOSA6106 4mm E-Clips (12)..............
-
Page 15: Optional Parts
Mega Baja Parts List MOTOR ACCESSORIES DRIVETRAIN PARTS LOSR1001 M26SS Engine w/PS & SG Shaft ........$124.99 LOSB3509 Wheel Hex Set - Hard Anodized Alum. (LST/AFT)..... $19.99 LOSB5100 Spin-Start Hand Held Starter (LST/2) ......... $44.99 LOSB3510 20mm Wheel Hexs - Alum (2) (LST/AFT)......$15.99 LOSB5102 Spin-Start Motor & Battery Leads (LST/2) ......$16.99 LOSB3511 Nut Set (Large/Small) for 20mm Hex (2 ea) ......$4.00 LOSB5103 Spin-Start Mechanics (LST/2) ..........$22.99 LOSB3531 Aluminum Diff Case - Polished (LST/2/AFT) ...... $10.99 LOSB5104 Spin-Start Hex Starter Shaft (LST/2) ........$5.00 LOSB3532 Aluminum Diff Case - Blue (LST/2/AFT)...... - Page 16 Page 1...
-
Page 17: Drivetrain Assembly
Drivetrain Assembly B5021 B5020 B3455 A6201 B4202 A6350 B5020 B3409 B5051 B3455 A6937 B3404 B3341 B3322 B3423 A6937 B3301 A6240 A6350 A6356 B3505 B3301 B3421 B3323 A6250 B4301 B3301 B3301 B2257 B3125 B3541 B3401 B5051 B3450 B3545 B5049 B3451 B3539 B3532 B3533 B5052... - Page 18 Page 1...
- Page 19 Page 1...
- Page 20 Page 0...
- Page 21 Page 1...
- Page 22 Page ...
-
Page 23: Warranty Period
Warranty Period Exclusive Warranty- Horizon Hobby, Inc., (Horizon) warranties that the Products purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase by the Purchaser. Limited Warranty (a) This warranty is limited to the original Purchaser (“Purchaser”) and is not transferable. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. This warranty covers only those Products purchased from an authorized Horizon dealer. Third party transactions are not covered by this warranty. Proof of purchase is required for warranty claims. Further, Horizon reserves the right to change or modify this warranty without notice and disclaims all other warranties, express or implied. (b) Limitations- HORIZON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCT. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE. (c) Purchaser Remedy- Horizon’s sole obligation hereunder shall be that Horizon will, at its option, (i) repair or (ii) replace, any Product determined by Horizon to be defective. In the event of a defect, these are the Purchaser’s exclusive remedies. Horizon reserves the right to inspect any and all equipment involved in a warranty claim. Repair or replacement decisions are at the sole discretion of Horizon. This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of or to any part of the Product. This warranty does not cover damage due to improper installation, operation, maintenance, or attempted repair by anyone other than Horizon. Return of any goods by Purchaser must be approved in writing by Horizon before shipment. Damage Limits HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCT, WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the Purchaser or user are not prepared to accept the liability associated with the use of this Product, you are advised to return this Product immediately in new and unused condition to the place of purchase. Law: These Terms are governed by Illinois law (without regard to conflict of law principals). Safety Precautions This is a sophisticated hobby Product and not a toy. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the Product or other property. This Product is not intended for use by children without direct adult supervision. The Product manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or injury. Questions, Assistance, and Repairs Your local hobby store and/or place of purchase cannot provide warranty support or repair. Once assembly, setup or use of the Product has been started, you must contact Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please direct your email to productsupport@horizonhobby.com, or call 877.504.0233 toll free to speak... - Page 24 Accessories/Hop-Ups Page LOSA7650S LOSA99104 LOSA99168 LOSB2221 Super King Pin Tires Losi Race Wrench Clutch Shoe/Spring Tool Sway Bar Kit (LST/2) $34.99 Four-Piece Inch Set $7.00 $14.99 $49.99 LOSB2807 LOSB2808 LOSB2814 LOSB2841 Shock Body & Cap Set - Shock Body & Cap Set - Hard Ano. Thrd. Shock Body Titanium Nitride Shock Shaft Red (4) (LST/2/AFT) Gold (4) (LST/2/AFT) & Adj. Set (4) (LST/2/AFT) (LST/2/AFT) $68.99 $68.99 $58.99 $7.50 LOSB3193 LOSB3323 LOSB3509 LOSB5031 Inside Gear Cover (LST2) Aluminum Clutch Shoe & Wheel Hex Set - Hard Finned Engine Mounts - $5.50 Spring Set (LST2) Anodized Alum. (LST/AFT) Hard Ano. Aluminum (LST/2)
