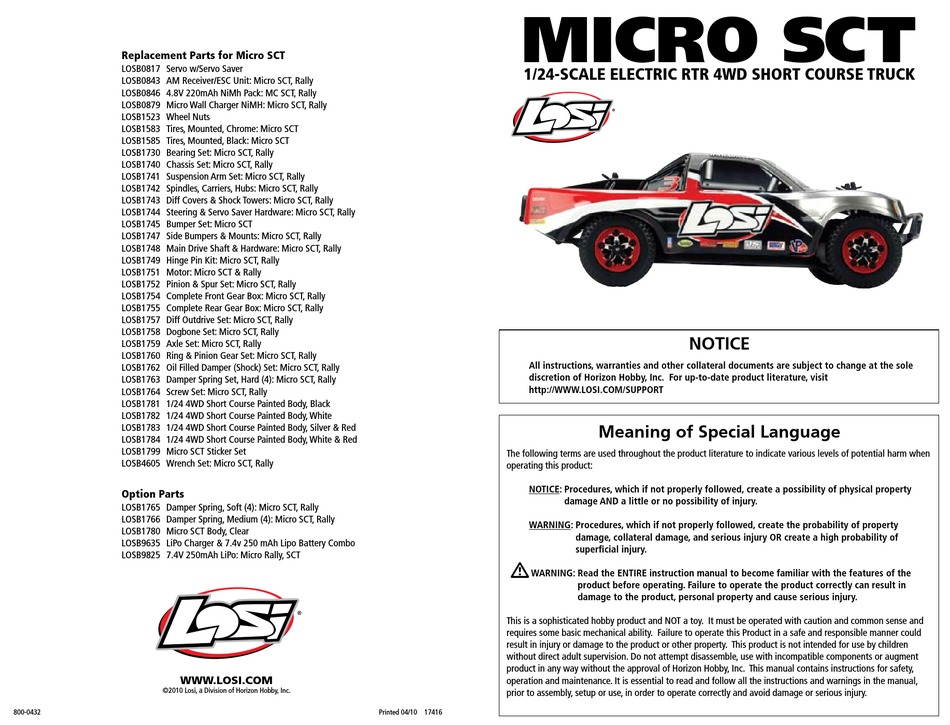

Replacement Parts for Micro SCT
LOSB0817 Servo w/Servo Saver
LOSB0843 AM Receiver/ESC Unit: Micro SCT, Rally
LOSB0846 4.8V 220mAh NiMh Pack: MC SCT, Rally
LOSB0879 Micro Wall Charger NiMH: Micro SCT, Rally
LOSB1523 Wheel Nuts
LOSB1583 Tires, Mounted, Chrome: Micro SCT
LOSB1585 Tires, Mounted, Black: Micro SCT
LOSB1730 Bearing Set: Micro SCT, Rally
LOSB1740 Chassis Set: Micro SCT, Rally
LOSB1741 Suspension Arm Set: Micro SCT, Rally
LOSB1742 Spindles, Carriers, Hubs: Micro SCT, Rally
LOSB1743 Diff Covers & Shock Towers: Micro SCT, Rally
LOSB1744 Steering & Servo Saver Hardware: Micro SCT, Rally
LOSB1745 Bumper Set: Micro SCT
LOSB1747 Side Bumpers & Mounts: Micro SCT, Rally
LOSB1748 Main Drive Shaft & Hardware: Micro SCT, Rally
LOSB1749 Hinge Pin Kit: Micro SCT, Rally
LOSB1751 Motor: Micro SCT & Rally
LOSB1752 Pinion & Spur Set: Micro SCT, Rally
LOSB1754 Complete Front Gear Box: Micro SCT, Rally
LOSB1755 Complete Rear Gear Box: Micro SCT, Rally
LOSB1757 Diff Outdrive Set: Micro SCT, Rally
LOSB1758 Dogbone Set: Micro SCT, Rally
LOSB1759 Axle Set: Micro SCT, Rally
LOSB1760 Ring & Pinion Gear Set: Micro SCT, Rally
LOSB1762 Oil Filled Damper (Shock) Set: Micro SCT, Rally
LOSB1763 Damper Spring Set, Hard (4): Micro SCT, Rally
LOSB1764 Screw Set: Micro SCT, Rally
LOSB1781 1/24 4WD Short Course Painted Body, Black
LOSB1782 1/24 4WD Short Course Painted Body, White
LOSB1783 1/24 4WD Short Course Painted Body, Silver & Red
LOSB1784 1/24 4WD Short Course Painted Body, White & Red
LOSB1799 Micro SCT Sticker Set
LOSB4605 Wrench Set: Micro SCT, Rally
Option Parts
LOSB1765 Damper Spring, Soft (4): Micro SCT, Rally
LOSB1766 Damper Spring, Medium (4): Micro SCT, Rally
LOSB1780 Micro SCT Body, Clear
LOSB9635 LiPo Charger & 7.4v 250 mAh Lipo Battery Combo
LOSB9825 7.4V 250mAh LiPo: Micro Rally, SCT
WWW.LOSI.COM
©2010 Losi, a Division of Horizon Hobby, Inc.
800-0432
MICRO SCT
1/24-SCALE ELECTRIC RTR 4WD SHORT COURSE TRUCK
All instructions, warranties and other collateral documents are subject to change at the sole
discretion of Horizon Hobby, Inc. For up-to-date product literature, visit
http://WWW.LOSI.COM/SUPPORT
The following terms are used throughout the product literature to indicate various levels of potential harm when
operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property
WARNING: Procedures, which if not properly followed, create the probability of property
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the
This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and
requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could
result in injury or damage to the product or other property. This product is not intended for use by children
without direct adult supervision. Do not attempt disassemble, use with incompatible components or augment
product in any way without the approval of Horizon Hobby, Inc. This manual contains instructions for safety,
operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual,
prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Printed 04/10 17416
NOTICE
Meaning of Special Language
damage AND a little or no possibility of injury.
damage, collateral damage, and serious injury OR create a high probability of
superficial injury.
product before operating. Failure to operate the product correctly can result in
damage to the product, personal property and cause serious injury.
