Summary of Contents for Artistic Licence Net-Lynx O/P U

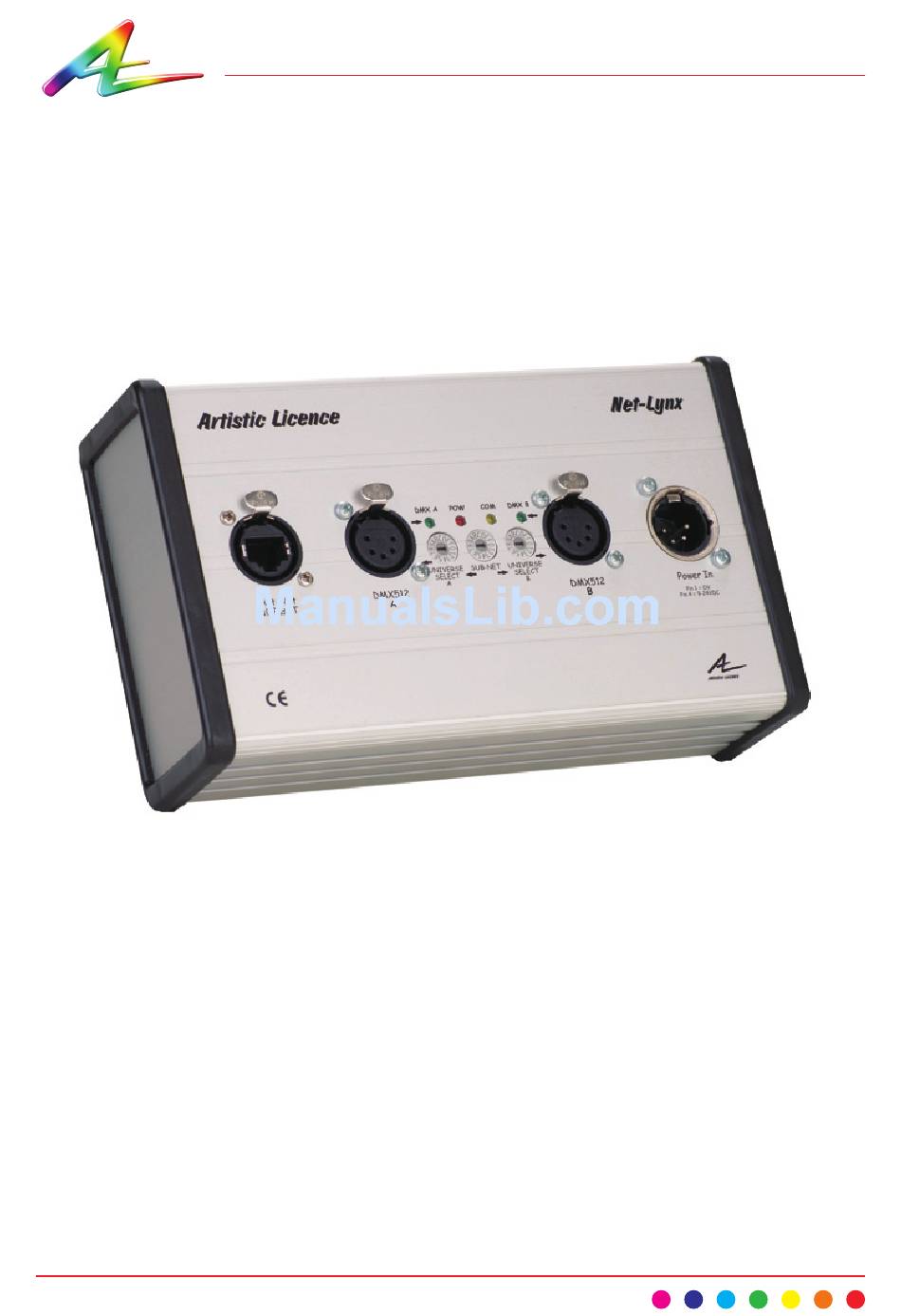

- Page 1 Artistic Licence Net-Lynx O/P User Guide Net-Lynx O/P User Guide Version 1-5...
- Page 2 Please read these instructions before using the product. This product has been designed & manufactured for professional use only. It should only be installed by a suitably qualified technician and in accordance with electrical regulations in the country of use. Unless directed in the instructions there are no user serviceable parts inside the outer case of this product.
-
Page 3: Mounting Diagram
Connections Ref. Type Description Data activity Indicator for Power Indicator for Ethernet Data activity Data Ethernet Connection Data DMX O/P A Connection Data DMX O/P B Connection Power Input 9-48 VDC Configuration Universe A Select Configuration Sub-Net Select Configuration Universe B Select Mounting Diagram Net-Lynx O/P User Guide Page 3... -
Page 4: Product Overview
Product Overview Ethernet Connection Net-Lynx O/P is a desktop or truss-mounted Net-Lynx O/P has a single XLR-RJ45 Ethernet-to-DMX512 converter. It is capable ethernet connection. The interface can accept of converting Art-Net into 2 Universes of Art-Net (the public domain protocol invented DMX512 &... -
Page 5: Remote Configuration
Configuration’ below). In contrast, Art-Net 3 and sACN can carry up to 32768 and 65536 universes respectively. To handle these large values, the concept of a 16-bit port address including a ‘Net’ field is introduced. The port address of each DMX512 universe is a number composed of the (Net)+(Sub-Net)+(Universe). - Page 6 Mask defines which part of the IP represents - Delta: DMX Output packets are the Network address and which part synchronised with incoming Art-Net represents the Node address. For example, a packets. Subnet Mask of 255.0.0.0 means that the first - Continuous: DMX output packets are byte of the IP is the network address and the continuously transmitted independently...
-
Page 7: Jumper Configuration
Jumper Configuration Net-Lynx O/P Specification Mechanical There are several advanced settings, beyond the scope of normal operation, that can be Housing: Desktop style case accessed by fitting the supplied jumpers over Material: metal the configuration pins. The jumper settings Overall dimensions: 115 mm (H) x 195 information is as follows: mm (W) x 55 mm (D) Weight: 0.7 kg... -
Page 8: Warranty
Data Connections Warranty Ethercon XLR-RJ45 (1 no.) All products are covered from date of purchase 5-pin female XLR DMX outputs (2 no.) by a two-year return to base warranty. LED Indication By return to base, we mean that the customer Power / Ethernet Link / DMX Activity is responsible for all costs of transport to and Configuration...
